SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition
141
The following screen is displayed, in which the user is prompted to scan a location barcode.

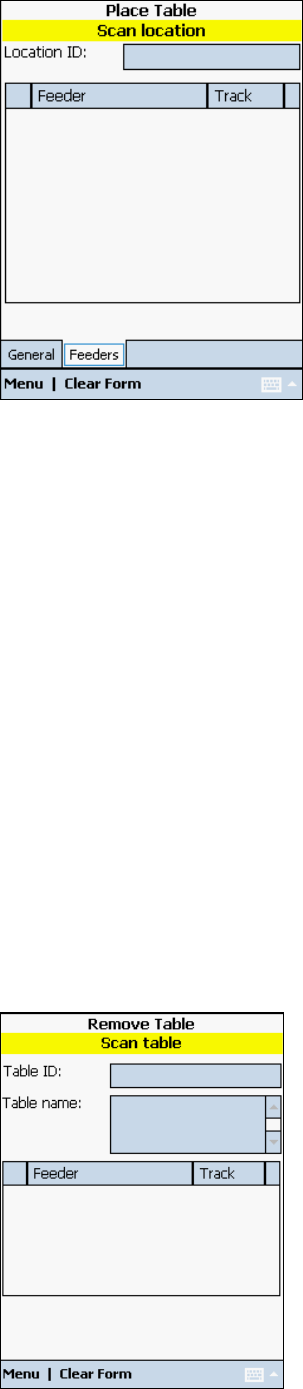

Figure 14-31: Place Table - Feeders
Feeders tab
Scan the station location barcode for the table that shall be placed.
Tap on Menu – Close to exit the screen.
or
Tap on Clear Form to perform the function for another location.
All feeders that previously were assigned on the table will have their location ID pointed to the
station location. The table parent location ID will be assigned to the station location ID that
was scanned previously. The feeder status will be changed from Available to In Use.
14.3.7 Remove Table
With this function the user can remove a changeover table from a station location. The table
must have been assigned to a station location previously to be able to be removed.
Select Remove Table in the Main menu.
The following screen is displayed, in which the user is prompted to scan a table barcode.
SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition
142
Figure 14-32: Remove Table
Scan the table barcode of the table that shall be removed.
Tap on Menu – Close to exit the screen.
or
Tap on Clear to perform the function for another location.
All feeders that reside on the station location will have their location ID updated from the
station location to the scanned table ID. The feeder status will be changed from In Use to
Available.
14.4 Feeder Manager PDA Desktop version
This is a desktop version of the FM Mobile application, in case it’s not possible to use the PDA
app (e.g. no WIFI allowed). Below is the main UI.
Figure 14-33 FM PDA desktop application
This application can be installed on any computer within the SIPLACE network and has a
working connection to the Feeder Manager Server computer. Together with a wired barcode
scanner, this application replaces the FM PDA and satisfies the need for following functions:
– Check Feeder Status
– Mark Feeder as Defective
– X-feeder ID Association
SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition
143
Once installed successfully, the FM PDA desktop application can be started from the
Windows Start menu or from the desktop icon created by the installer.
Figure 14-34 FM PDA desktop application in Start
menu
Figure 14-35 FM PDA desktop icon
