SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition
109

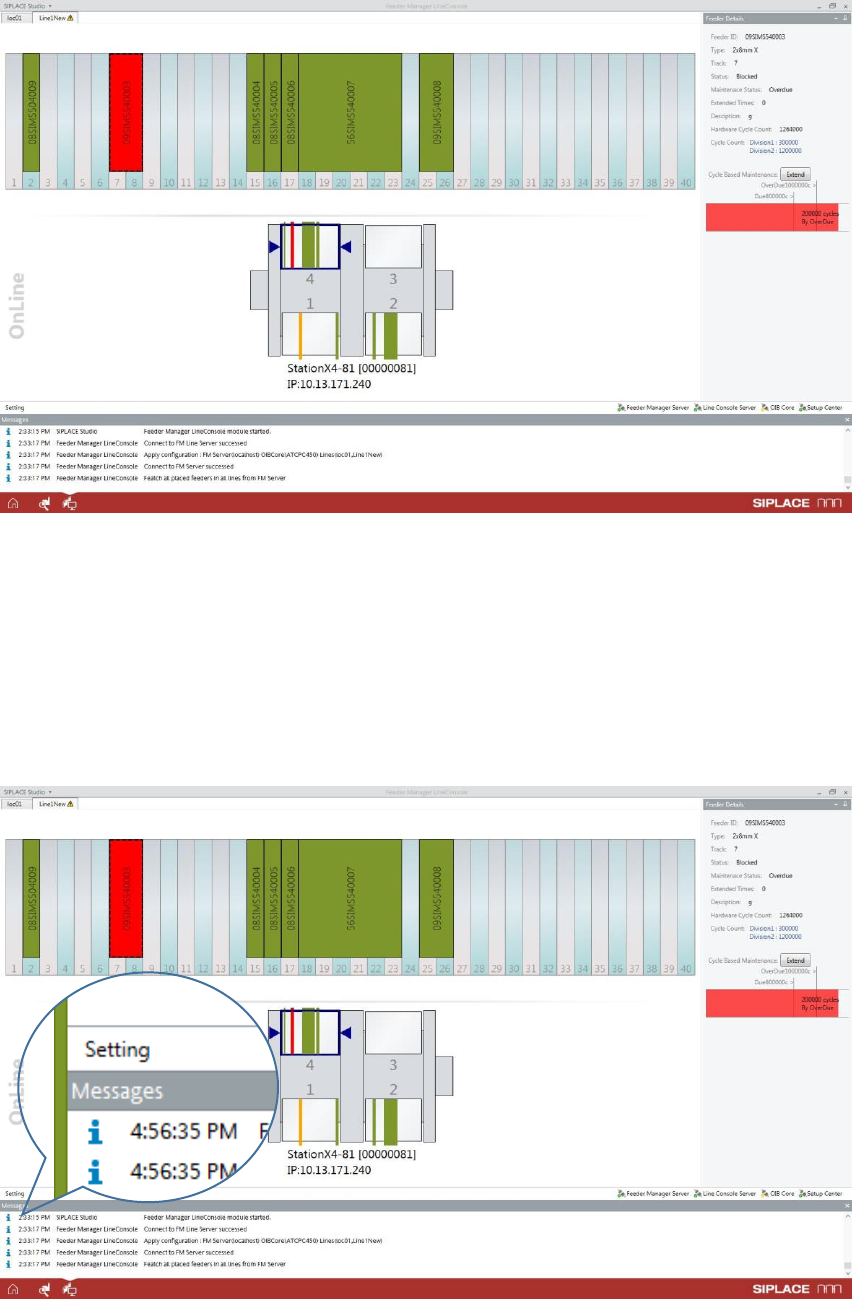

Figure 12-3: FM Line Console – Main menu
12.3 Line Console Configuration
FM Line Console Configuration window can be opened from either the Line Console Server
Manager options as explained above, or from the Setting button inside the FM Line Console
main UI, see below.
Figure 12-4: FM Line Console Setting button
SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition
110
Following window of FM Line Console Server Configuration will be opened.

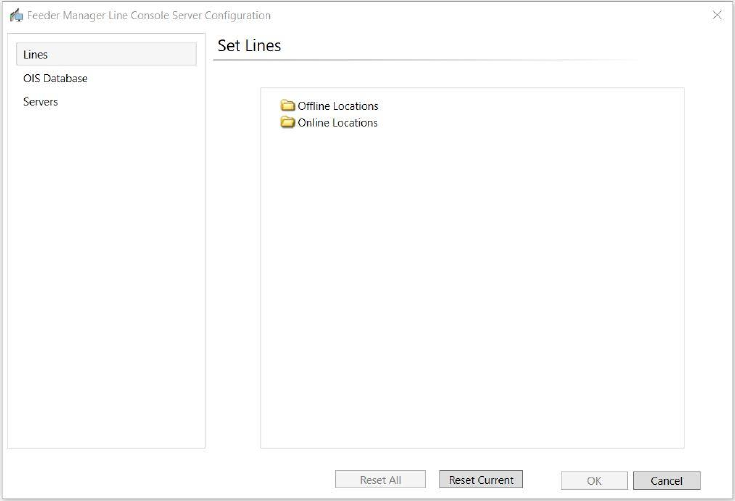

Table 12-2 Initial state of the FM Line Console Server Configuration
12.3.1 Online and Offline Settings
To start using FM Line Console, the user shall define the Online and Offline locations and add
the lines and docking stations for monitoring.
Refer to Chapter 13 “Feeder Location Tracking” for the configuration of Online and Offline
locations.
SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition
111
12.3.2 OIS Database Settings
Configure the OIS database connection accordingly.

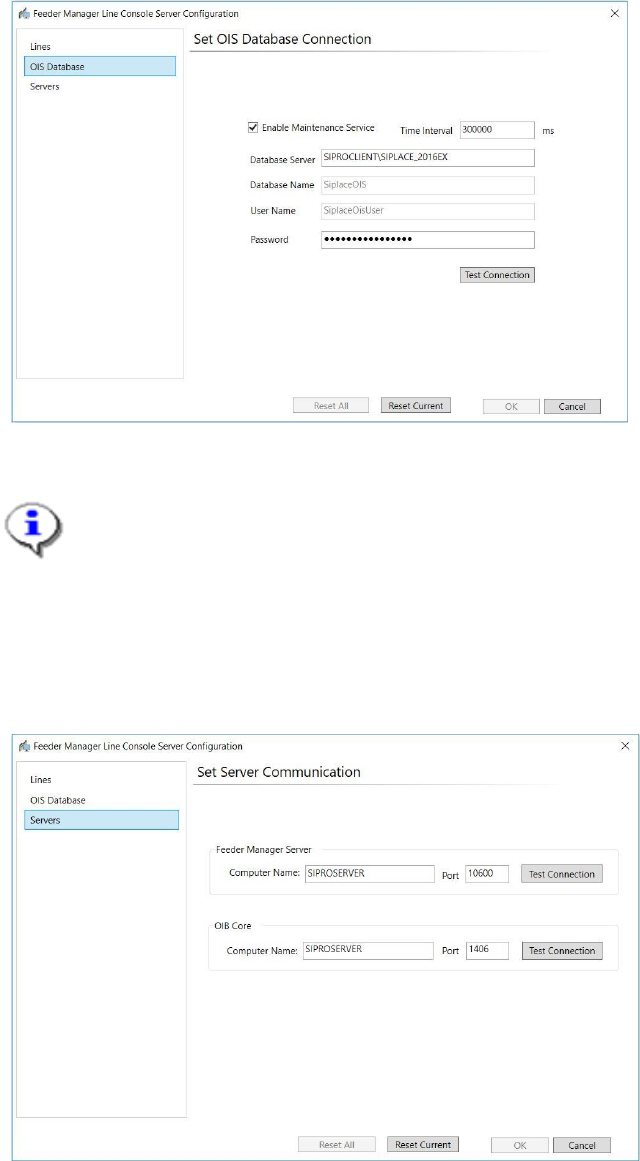

Figure 12-5 FM Line Console OIS Database Connection Configuration
Note:
Unlike previous versions, the OIS Database connection shall be configured in FM Line
Console Server Configuration, instead of being done during the installation process.
Only when the correct OIS Database setting is configured can FM Line Console collect
the feeder cycle count information.
12.3.3 Server Settings
Figure 12-6 FM Line Console Server Configuration: FM Server
Enter the appropriate name for FM Server and OIB Core.
