SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition
71
8.2.2 Description of the buttons
Generate
Click on this button to search for feeders exchanged within the selected date range and
generate the report.
Reset
Click on this button to clear all fields and reset them to their respective default values.
Note:
Exchange date to must be >= Exchange date from.

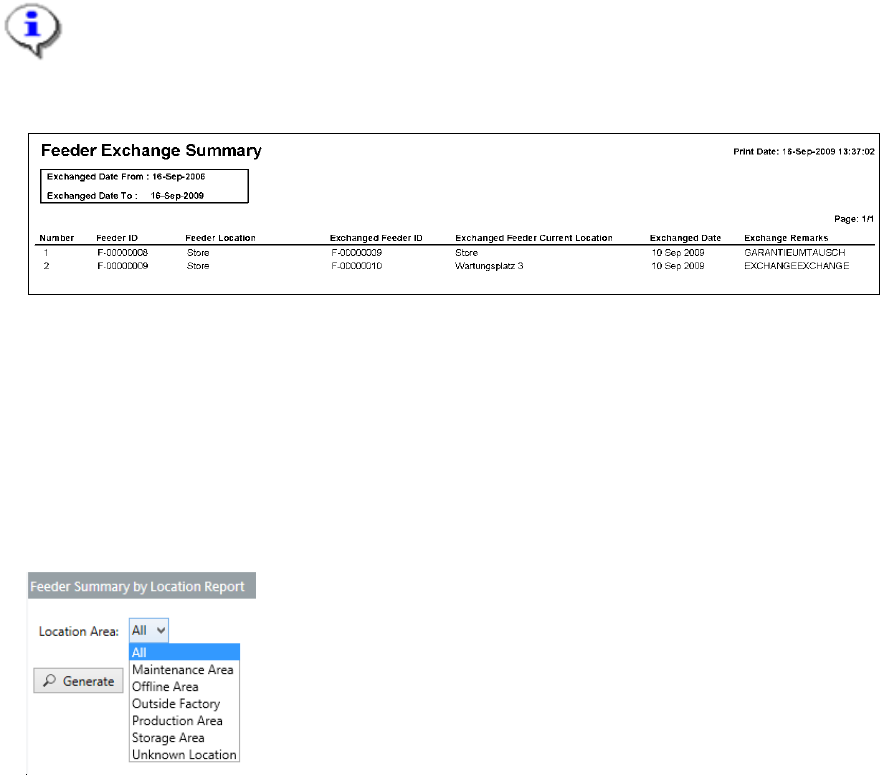

Example: Feeder Exchange Summary Report
Figure 8-5: Feeder Exchange Summary Report
8.3 Feeder Summary by Location Report view
Click on Report – Feeder Summary by Location Report in the menu bar to open the
view.
The Feeder Summary By Location Report view is displayed.
Figure 8-6: Feeder Summary by Location Report view
Select the location area to generate a summary report of the number of feeders by feeder
type and feeder status.
8.3.1 Description of the fields
Location area
Allows the user to search for feeders based on their location area. It is possible to select all
location areas or a specific one.
SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition
72
8.3.2 Description of the buttons
Generate
Click on this button to search for feeders of the selected location type and generate the
report.
Reset
Click on this button to clear all fields and reset them to their respective default values.
Note:
Feeders with feeder status Scrapped will not be included in the report.
Example: Feeder Summary By Location Report
Figure 8-7: Feeder Summary By Location Report, Maintenance Area
SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition
73
Figure 8-8: Feeder Summary By Location Report, Outside Factory
Figure 8-9: Feeder Summary By Location Report, Production Area
