SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition
55
6.3 Print Offline Area Setup
Click on Location Print Offline Area Setup in the menu bar to open the view.
The Print Offline Area Setup view is displayed.

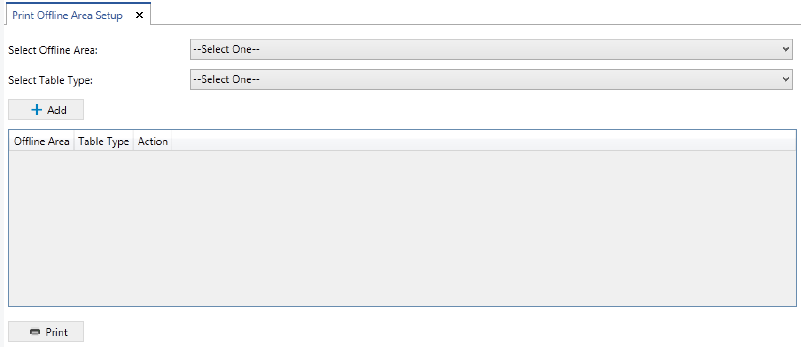

Figure 6-5: Print Offline Area Setup view
Select the offline area and table type details, for which offline setup barcodes shall be
printed on an A4 size paper.
If no docking station is available, it is possible to scan the printed barcodes with the barcode
scanner in the offline area.
6.3.1 Description of the fields
Offline Area
Allows the user to select an offline area from the drop-down list to be printed.
Table Type
Allows the user to select a table type from the drop-down list to be printed.
6.3.2 Description of the buttons
Add
Click on this button to add the selected offline area and table type to the printing list.
It is possible to add multiple offline areas/table types to the printing list.
Print Barcode
Click on this button to print the barcodes for the items in the printing list.
SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition
56
6.4 Import Locations view
From Feeder Manager 3.0, Import Location is moved to Settings due to the nature that it will
only be used during initial configuration.
Click on Settings – Import Locations.
The Import Locations tab is displayed.

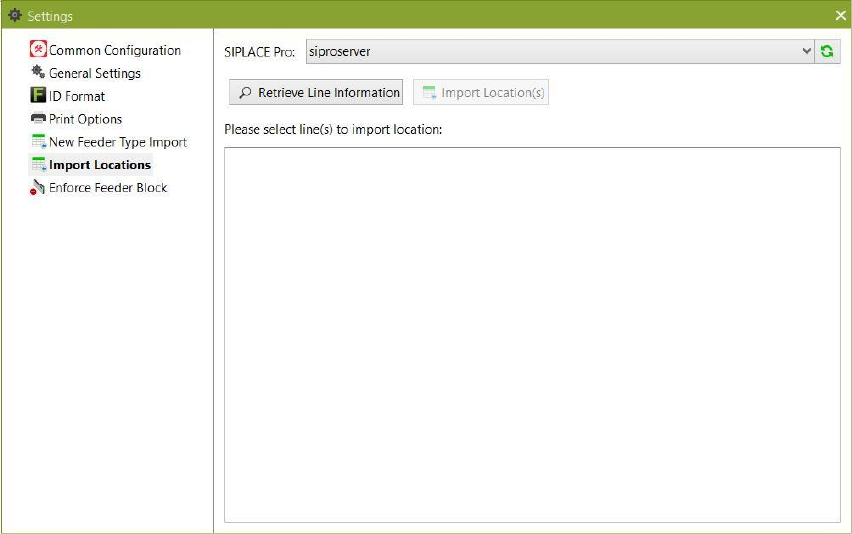

Figure 6-6: Import Locations tab
The dropdown list titled “SIPLACE Pro” will be automatically populated with the SIPLACE Pro
servers.
Make sure the desired line is selected from the dropdown list. Then click the Retrieve
Line Information button to receive information on existing locations defined in SIPLACE
Pro.
The existing locations in SIPLACE Pro are displayed.
SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition
57

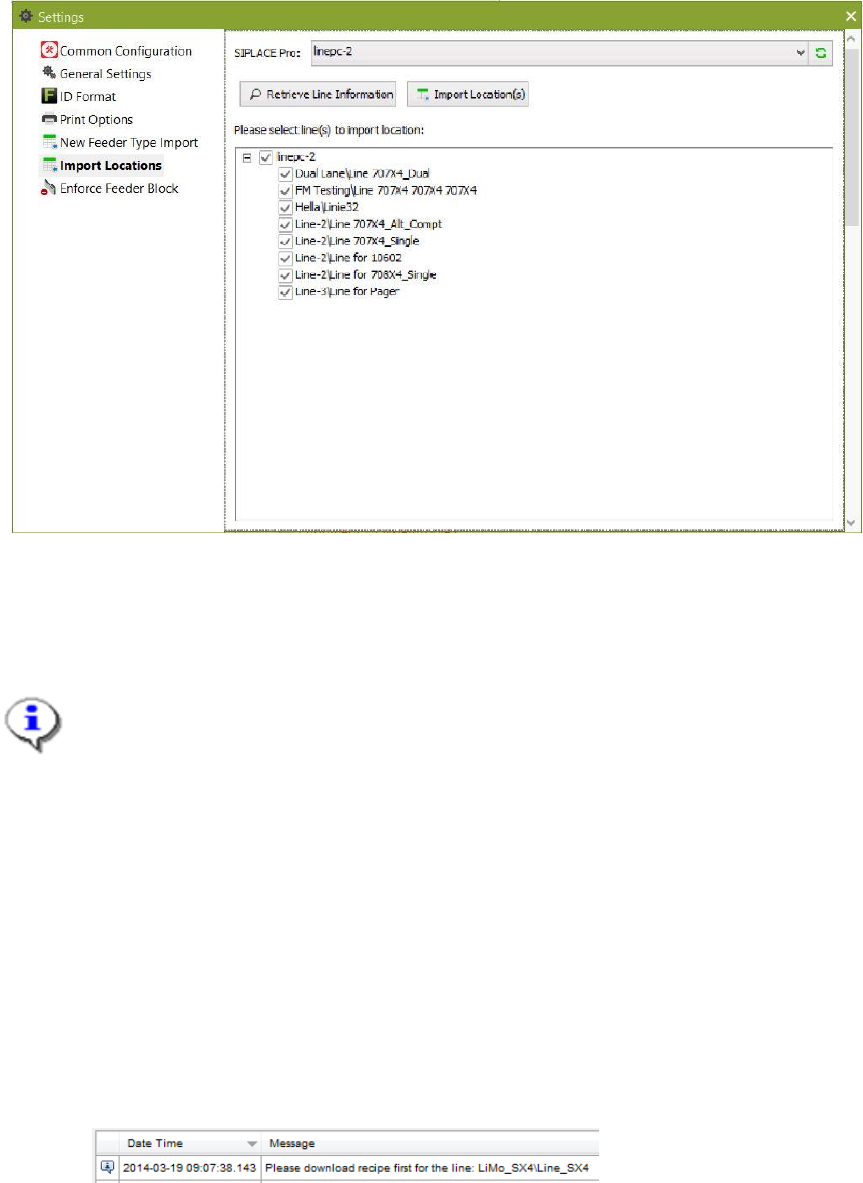

Figure 6-7: Line information to import location
Tick the line(s) that shall be imported.
Click on the Import Location(s) button.
Note:
1) If the line name does not exist in the Feeder Manager database, the system will
automatically create a location ID for it and for all the sub-locations extracted from
SIPLACE Pro.
2) If the line already exists, the system will update the parent location ID for all of the
line's sub-locations.
3) The location type for all the new created locations will be assigned to Production
Area.
4) The line will be highlighted in red if no corresponding machine ID was found in
SIPLACE Pro. In this case the system will not create any locations for this line. The
user will be prompted to download a recipe to the line.
Figure 6-8 Message “download recipe first for the line selected”
The imported locations can be modified in the Location Details dialog box.
