SIPLACE Feeder Ma nager 3.3 (R18 -1) / Getting S tarted 08/2018 Edition 73 Figure 8-8: Feeder S ummar y By Location Repor t, Outside Fa c tory Figure 8-9: Feeder S ummar y By Location Report, Production Are a
SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition
72
8.3.2 Description of the buttons
Generate
Click on this button to search for feeders of the selected location type and generate the
report.
Reset
Click on this button to clear all fields and reset them to their respective default values.
Note:
Feeders with feeder status Scrapped will not be included in the report.
Example: Feeder Summary By Location Report

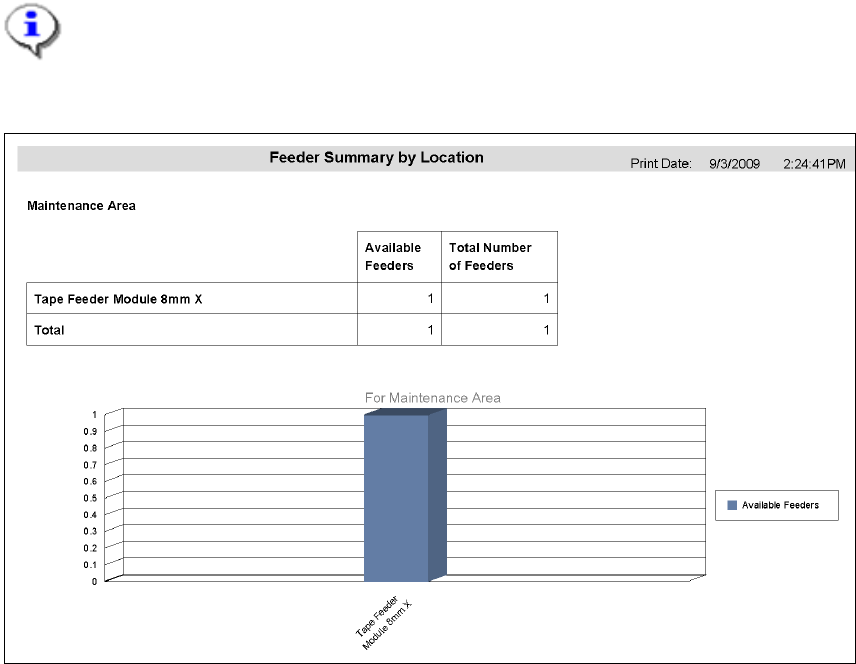

Figure 8-7: Feeder Summary By Location Report, Maintenance Area
SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition
73

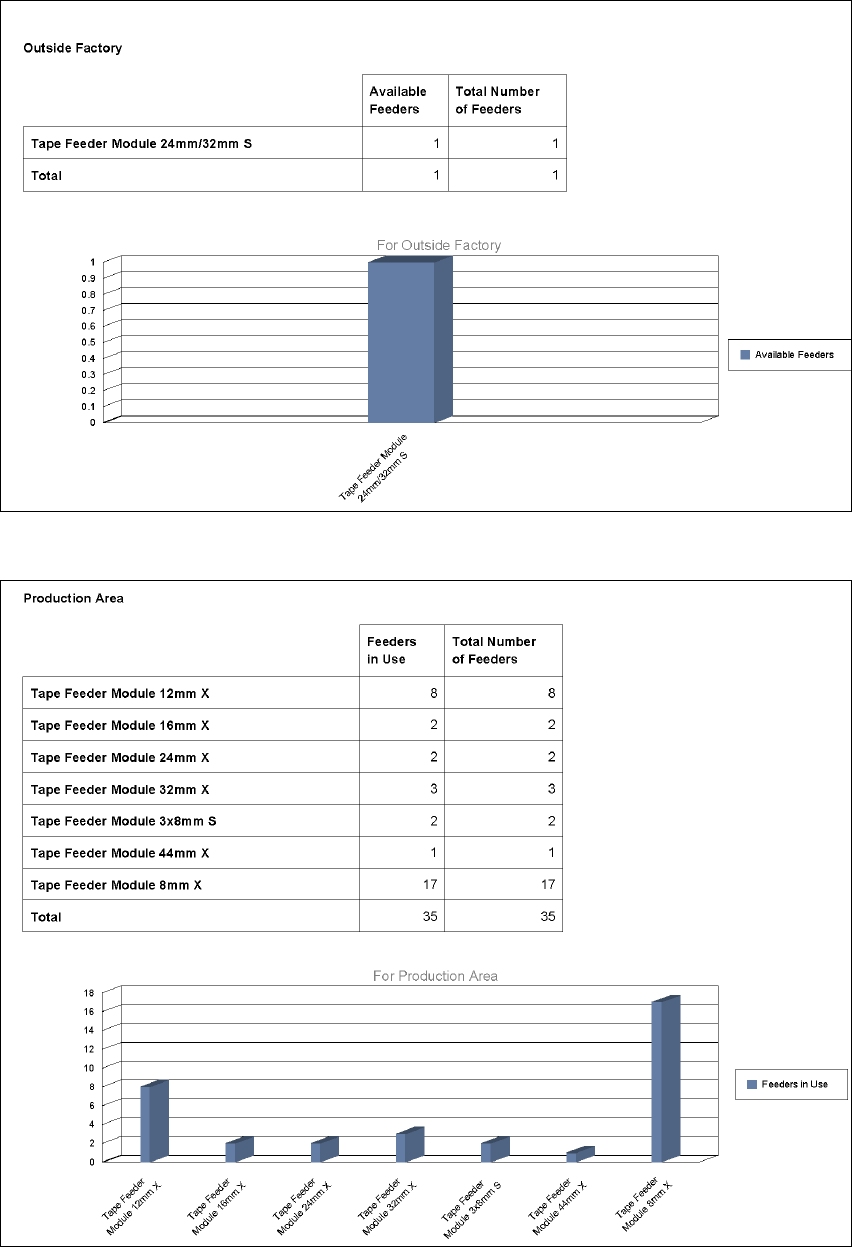

Figure 8-8: Feeder Summary By Location Report, Outside Factory
Figure 8-9: Feeder Summary By Location Report, Production Area
SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition
74
8.4 Available Feeders Over Time Monthly Report view
Click on Report – Available Feeders over Time Monthly Report in the menu bar to
open the view.
The Available Feeders over Time Monthly Report view is displayed.

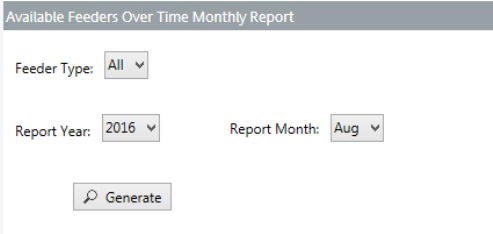

Figure 8-10: Available Feeders over Time Monthly Report view
Select the details to search for the minimum number of available feeders and total
feeders for each day based on the selected month to generate the report.
In this report, the user gets an overview of the feeder availability and can decide if it is
necessary to purchase more feeders of a specific feeder type.
8.4.1 Description of the fields
Feeder Type
Allows the user to search for feeders based on their feeder type. It is possible to select all
feeder types or a specific one.
Report Year
Allows the user to select the report year.
Report Month
Allows the user to select the report month.
8.4.2 Description of the buttons
Generate
Click on this button to search for feeders of the selected feeder type, report year and
month and generate the report.
Reset
Click on this button to clear all fields and reset them to their respective default values.
