SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition

Note:

Both Feeder Manager and Feeder Manager Line Console applications are hosted

inside ASM Studio as Studio modules. Refer to the Feeder Manager Installation

Manual, item no. 00198179-04 for details.

3.1 Starting the Feeder Manager Client

To start FM Client, do one of the following,

 Start the ASM Studio from the Windows Start menu Start – All Programs – ASM Studio or

with the icon on the Windows desktop

 Start the Feeder Manager Client by clicking on the FM Client icon on the ASM Studio

desktop.

 Start FM Client directly from the Windows Start Menu

Once the FM Client Main Window is shown, you’ll need to enter the log on credential. Contact

your system administrator if there are any questions regarding the user name or password.

3.2 Terminating the Feeder Manager Client

To terminate the FM Client, do one of the following,

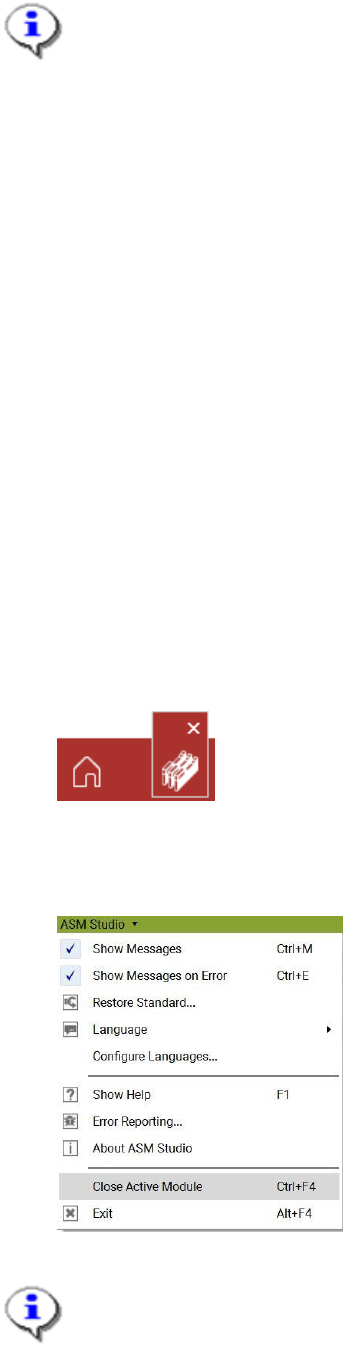

 Mouse over the FM Client icon on the ASM Studio toolbar, then press on the cross sign

 Click the Close Active Module on the ASM Studio Menu (or press Ctrl + F4) to close FM

Client.

Note:

Clicking on the cross button on the top right hand corner of ASM Studio UI will shut

down the ASM Studio.

SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition

3.3 Starting the Feeder Manager Line Console

To start the FM Line Console, do one of the following

 Start the ASM Studio from the Windows Start menu Start – All Programs – ASM Studio or

with the icon on the Windows desktop

 Start the Feeder Manager Client by clicking on the FM Client icon on the ASM Studio

desktop.

Start FM Line Console directly from the Windows Start menu.

3.4 Terminating the Feeder Manager Line Console

Same as the way FM Client is terminated. See section 3.2 for details.

SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition

4 Program Overview

4.1 Input elements and controls

 Keyboard

The keyboard acts as the standard input tool to operate the Feeder Manager.

 Trackball and mouse buttons

On the station, the trackball is used to move the mouse pointer across the user interface. The

left mouse button is then used to execute the corresponding function.

Note:

In this guide, the triggering of actions using the left mouse button is always referred to as

"clicking".

 Touch screen on PDA device (MC70, MC75 and MC67 scanner)

The screen on the PDA device acts as the standard input tool for Feeder Manager Mobile

Application. Actions can be directly selected or the corresponding functions triggered by

touching the corresponding object on the screen with the tip of a finger or with a pen.

4.2 User classification

Certain functions or menus can only be carried out/called by specially trained staff. The

following different access levels are available, when Feeder Manager has been installed:

 Admin

This access level has access to all Feeder Manager functions.

 Service

This access level has access to all Feeder Manager functions except the user

management function.

 Operator

This access level has read-only access to Feeder Manager and some basic operational

functions, such as exchanging feeder, marking feeder as defective, assigning feeder to

location and printing barcodes.
