SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition
43
5.4.3 Step 3 – Maintenance Information

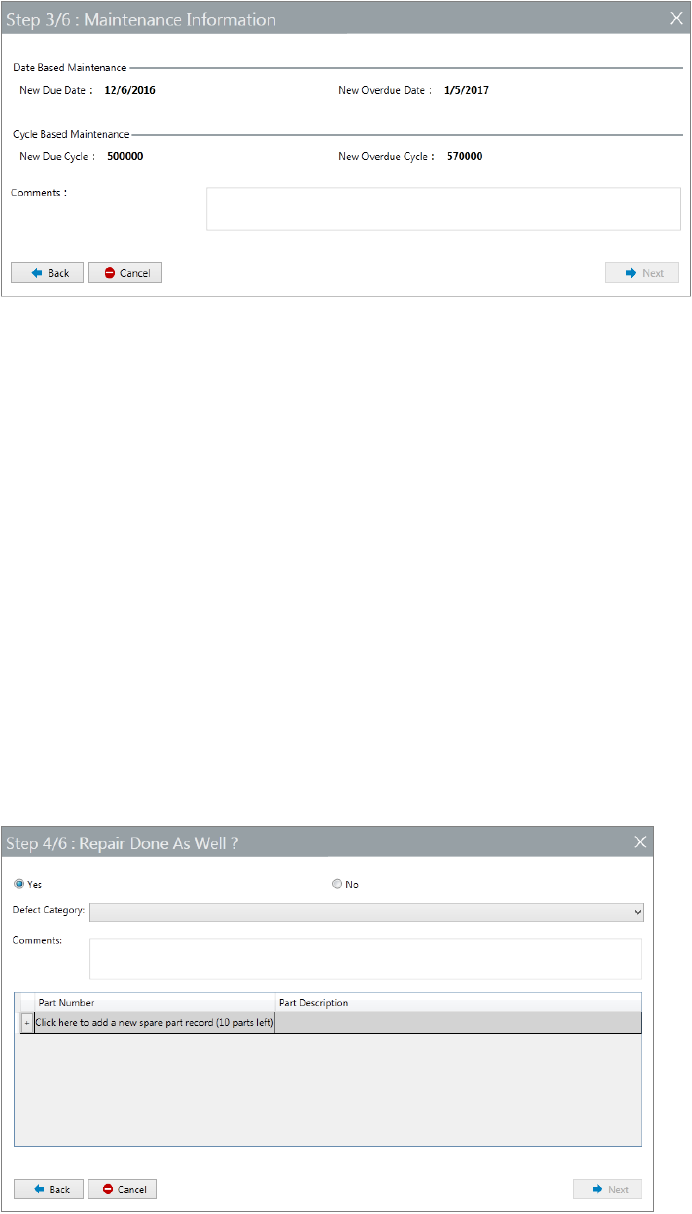

Figure 5-26 maintenance information
This step allows you to check the new maintenance plan which will be applied to the feeder
once the maintenance workflow is completed.
Note: the maintenance plan data seen here are for information only and cannot be edited. For
the editing of feeder maintenance plan, please see chapter 7 Feeder Type centric functions,
section 7.2.3, Editing the maintenance plan.
You are also required to enter the maintenance comments, which is mandatory.
Once done, press Next to continue.
Note: with Feeder Manager 3.0, the workflow is not allowed to continue at this step without a
comment.
5.4.4 Step 4 – Feeder Repair Option
Figure 5-27 Feeder Repair Option
SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition
44
This step provides an option for you to do the feeder repair along the workflow as well. If you
choose Yes, you are required to enter
Defect category
The following defect categories are provided for selection:
– Electrical error
– Foil disposal unit
– Foil rocker
– Mechanical error
– Normal maintenance
– Pick up window
– Tape drive unit
Service comment
Allows the user to enter a service comment that applies to all feeders being added to the list.
This service comment appears as Feeder Service Comment for each individual feeder in the
list.
Note:
This is a mandatory field, if no service comment is entered for each individual feeder.
If needed, service comments can be entered for specific feeders. If a service comment
is entered for all individual feeders, this field can be left blank.
Part Number and part description
Allows the user to enter up to 10 exchanged spare parts with their part number and
descriptions.
5.4.5 Step 5 – Option to check feeder with SFTS or XFTS again
Figure 5-28 Option to check feeder with SFTS or XFTS again
This step allows you to choose whether to conduct another round of SFTS or XFTS test to
verify the maintenance / repair result.
Execute the test if necessary in the same way as described in Step 2, or select No to
proceed.
SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition
45
5.4.6 Step 6 – Summary
Figure 5-29 Feeder Maintenance Workflow Summary page
The 6
th
and last step gives you the summary of all the maintenance settings about to be
applied to the feeder.
Check the content to make sure they are correct. You can use the Back button to go to any
previous step for modifications.
Once satisfied, press the Complete & Store Data button to complete the maintenance
workflow for this feeder and store the relevant maintenance data into Feeder Manager
database.
5.5 Feeder Repair Workflow
Note: Feeder Repair workflow will be done in a guided way to avoid unwanted input errors.
The Feeder Repair Workflow can be accessed via two places
1) Via the main meu. Go to Feeder Feeder Repair Workflow
Figure 5-30 Access Feeder Maintenance Workflow from the main menu
Note: You will need to key in or scan the feeder ID to be maintained.
