SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition

135

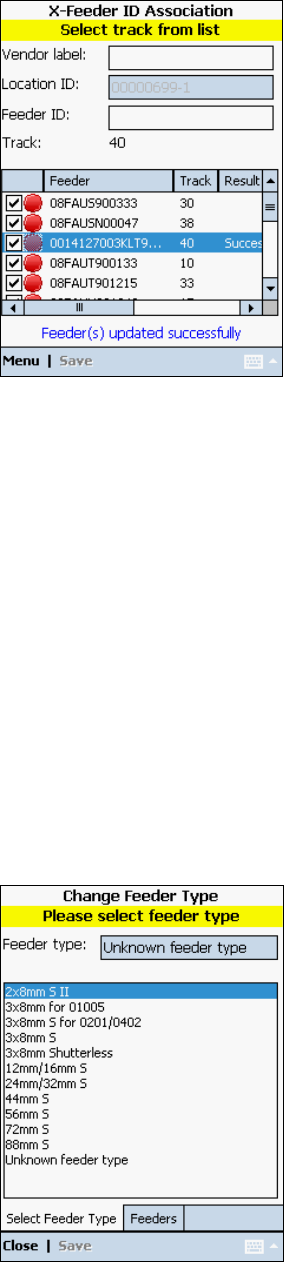

Figure 14-20: X Feeder ID Association – Feeder(s) updated

 Tap on Menu  Close to exit the screen.

Or Menu  Clear Form to perform the function for another feeder.

14.3.3 Change Feeder Type

With this function the user can define a feeder type for an unknown feeder type.

When the system detects a new feeder ID for customer specific feeder IDs and the ID

matches the defined customer specific format, the system will automatically register the

feeder ID by setting the feeder type to Unknown. The user can then change the feeder type by

selecting an existing feeder type from the drop-down list.

 Select Change Feeder Type in the Main menu.

The following screen is displayed.

Figure 14-21: Change Feeder Type – Select Feeder Type

Select Feeder Type tab

 Select a feeder type from the list.

The system will prompt the user to scan a feeder.

SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition

136

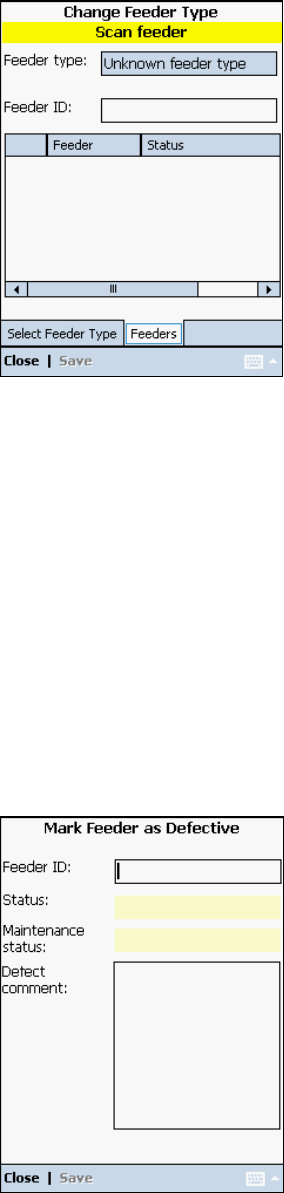

Figure 14-22: Change Feeder Type – Feeders

Feeders tab

 Scan the feeder barcode of the feeder. (Scan all possible feeders to change the feeder

type)

 Tap on Save to save the feeder type.

 Tap on Close to exit the screen.

14.3.4 Mark Feeder as Defective

With this function the user can mark a feeder as defective and enter a defect comment.

 Select Mark Feeder as Defective in the Main menu.

The following screen is displayed.

Figure 14-23: Mark Feeder as Defective

 Scan the feeder barcode of the feeder that shall be marked as defective.

SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition

137

The following screen is displayed for the feeder.

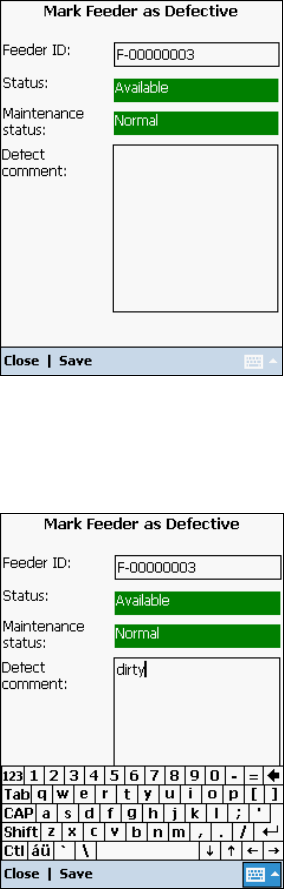

Figure 14-24: Mark Feeder as Defective - Status

In the following screen the user can enter a defect comment for the feeder. Use the integrated

keyboard function for this.

Figure 14-25: Mark Feeder as Defective – Enter defect comment

 Tap on the Defect comment field and then on the keyboard symbol in the menu bar.

The keyboard function opens.

 Use the keyboard to enter the defect comment text.

 Tap on Save to save the entries.

The following screen is displayed for the feeder. The feeder status and maintenance status

have changed to Blocked and Defective respectively and the status is indicated in red.
