SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition
57
Figure 6-7: Line information to import location
Tick the line(s) that shall be imported.
Click on the Import Location(s) button.
Note:
1) If the line name does not exist in the Feeder Manager database, the system will
automatically create a location ID for it and for all the sub-locations extracted from
SIPLACE Pro.
2) If the line already exists, the system will update the parent location ID for all of the
line's sub-locations.
3) The location type for all the new created locations will be assigned to Production
Area.
4) The line will be highlighted in red if no corresponding machine ID was found in
SIPLACE Pro. In this case the system will not create any locations for this line. The
user will be prompted to download a recipe to the line.
Figure 6-8 Message “download recipe first for the line selected”
The imported locations can be modified in the Location Details dialog box.
SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition
58
7 Feeder Type centric functions
Feeder Manager provides following feeder type centric functions
1) Add New Feeder Type
2) Search Feeder Type
3) New Feeder Type Import
7.1 Add New Feeder Type view
Add New Feeder Type is accessed from the main menu via either
1) Add Add New Feeder Type, or
2) Feeder Type Add New Feeder Type
The Add New Feeder Type view is displayed.

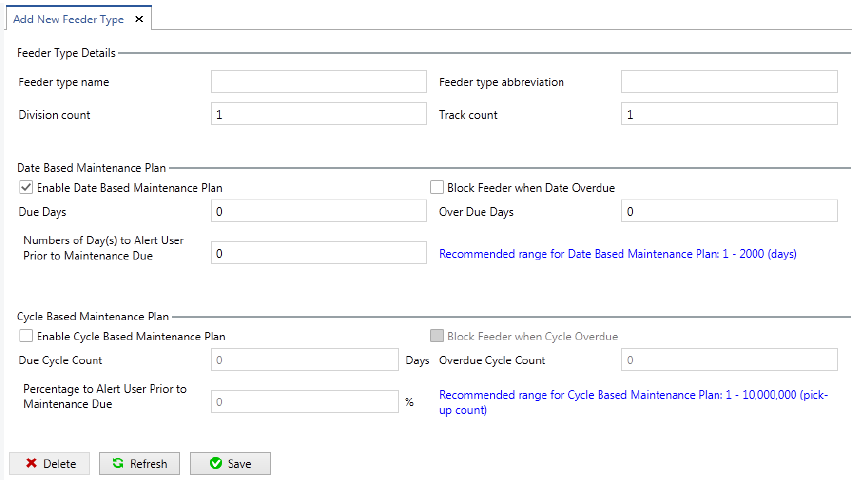

Figure 7-1: Feeder Type Details – New dialog box
Enter the details to add a new feeder type to the system.
7.1.1 Description of the fields
Feeder type name
Allows the user to enter the feeder type name.
Feeder type abbreviation
Allows the user to enter the abbreviated name for the feeder type. The abbreviated name
must have 5 characters.
SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition
59
Division count
Allows the user to enter the number of divisions on which the components are transported.
Track count
Allows the user to enter the number of tracks that are occupied on the table (depends on the
feeder width).
Date Based Maintenance Plan
Indicate whether you want to enable Date Based Maintenance plan for the new feeder type,
and if yes, enter the due and overdue days, as well as how many days you want to alert the
user before the due date.
Cycle Based Maintenance Plan
Indicate whether you want to enable Cycle Based Maintenance plan for the new feeder type,
and if yes, enter the due and overdue cycle counts, as well as how many days you want to
alert the user before the due cycle count is reached.
7.1.2 Description of the buttons
Save
Click on this button to save the feeder type details.
Delete
Click on this button to delete a feeder type from the system.
Note:
A feeder type can only be deleted if no feeder IDs are assigned to it. Otherwise this
button is disabled.
A system-defined feeder type cannot be deleted.
Refresh
Click on this button to refresh the display.
