SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition
32
Division
This is the target division of the feeder verification/test. For single-division feeders, this value
is always 1.
Test Result
This is the result of the feeder verification/test.
Hardware Cycle Count
This is the feeder cycle count that feeder verification and repair station reads from the feeder.

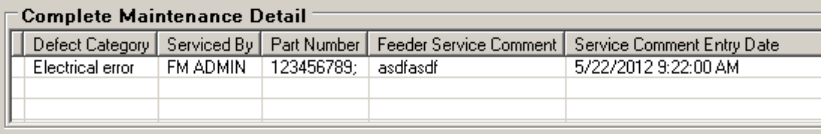

Figure 5-11 Feeder Maintenance History - Complete Maintenance Detail
Defect Category
This is the defect category that was selected on completing maintenance for the
defective/serviced feeder.
The following defect categories are provided for selection:
– Electrical error
– Foil disposal unit
– Foil rocker
– Mechanical error
– Normal maintenance
– Pick up window
– Tape drive unit
Serviced By
This is the name of the person that serviced the feeder.
Part Number
This is the part number of an exchanged spare part.
Feeder Service Comment
This is the feeder service comment that was entered when maintenance was marked as
complete for the defective/serviced feeder.
Service Comment Entry Date
This is the date and time when the service comment was entered for the defective/serviced
feeder.
SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition
33
Click on this button to export the complete maintenance history, including all the details, to an
excel file.
For all three categories (Defect, Verification and Complete Maintenance), the exported excel
will append the detail fields to each of the maintenance records and combine them into one
excel sheet. Fields without any data will be omitted.
Note:
Exported excel files require Microsoft Office Excel or Excel Viewer 2007 or higher to open.
5.2 Add New Feeders (Batch) view
Click on Feeder – Add New Feeders (Batch) or on New… – Add New Feeders (Batch)
in the menu bar to open the view.
The Add New Feeders (Batch For S Feeder) view is displayed.

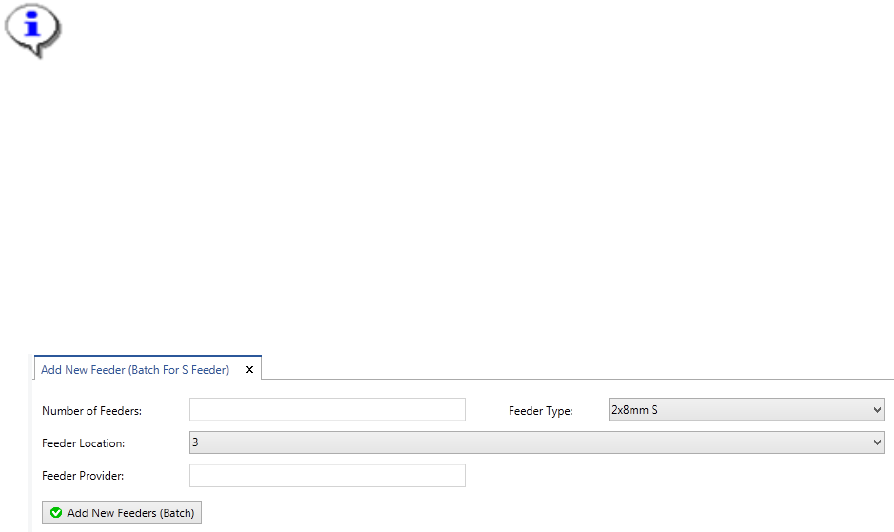

Figure 5-12: Add New Feeders (Batch For S Feeder) view
Enter the details for new feeder barcodes that shall be printed.
SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition
34
Note:
This function is only applicable to S feeders with the feeder ID format set to
“INTERNAL”. See section 9.3 ID Format for details.
If the setting is “EXTERNAL”, following message will be shown.
Figure 5-13 External feeder ID format printing not supported message
The user should set the feeder ID format to “INTERNAL” in order to use this
function.
5.2.1 Description of the fields
Number of feeders
Allows the user to enter the number of new feeder barcodes to be printed. This field is
mandatory.
Feeder type
Allows the user to select the feeder type of the feeders for which barcodes are to be printed
from the drop-down list. If the feeder type is not known at the time of barcode printing, it is
possible to select Unknown Feeder Type.
