SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition

Note:

This function is only applicable to S feeders with the feeder ID format set to

“INTERNAL”. See section 9.3 ID Format for details.

If the setting is “EXTERNAL”, following message will be shown.

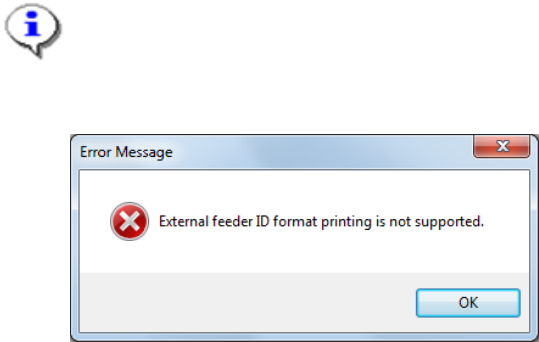

Figure 5-13 External feeder ID format printing not supported message

The user should set the feeder ID format to “INTERNAL” in order to use this

function.

5.2.1 Description of the fields

Number of feeders

Allows the user to enter the number of new feeder barcodes to be printed. This field is

mandatory.

Feeder type

Allows the user to select the feeder type of the feeders for which barcodes are to be printed

from the drop-down list. If the feeder type is not known at the time of barcode printing, it is

possible to select Unknown Feeder Type.

SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition

Feeder location

Allows the user to select the default location of the new feeders for which barcodes are to be

printed from the drop-down list. If the location is not known at the time of barcode printing, it is

possible to select Unknown Location.

Feeder Provider

Allows the user to enter the feeder supplier information.

5.2.2 Print Feeder ID Barcodes

Once the batch of feeders are successfully generated, Feeder Manager will ask you whether

the feeder barcodes are to be printed with the following dialog.

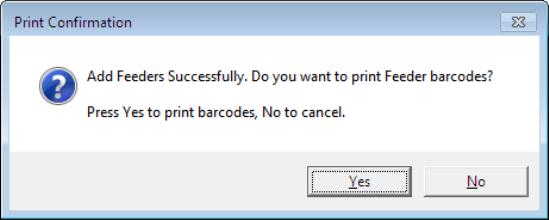

Figure 5-14 Add New S Feeders by Batch - Confirmation Dialog

Press Yes to print the barcodes of the newly generated S feeders to your preconfigured

barcode printer, or No to cancel the barcode printing for now.

It is highly recommended that you print the barcodes for all the newly added feeders for easy

of managing.

SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition

5.3 Search Feeder view

This function is used to search for a feeder, or a group of feeders, using a set of criteria set by

the user. It can be accessed in the menu bar by either Feeder  Search Feeder or Search

 Search Feeder.

Once clicked, the Search Feeder view is displayed in the function view area as a new tab.

Figure 5-15: Search Feeder View

Feeders can be search by either their detail information or warranty information.

 Use the radio button in front of each option to select.

5.3.1 Search feeder by details

Following fields are used for search of feeder

Figure 5-16 Search feeder by details

For example, type in the feeder ID and press “Search” or Enter, or scan the vendor barcode

directly will trigger the search.
