SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition
25
Save
Click on this button to save the feeder details for the feeder.
Print Barcode to label
Click on this button to print a barcode label for any feeder through a label printer.
Print Barcode to A4
Click on this button to print a barcode label for any feeder to an A4 paper through normal
printer.
5.1.2 Modifying feeder details
The maintenance plan for the feeder is selected based on the feeder type. Maintenance
status is set to Normal and Feeder status is set to Available, except for the case when the
feeder is assigned to Offline/Production Area. Then the Feeder status is set to In Use.
The following feeder details can be modified afterwards.
Feeder serial number
Feeder type: can only be modified as long as the feeder type = Unknown Feeder Type. Once
the feeder type is set to a known feeder type, it cannot be modified anymore.
Feeder location
Feeder provider
Feeder description
Warranty Start Date
Warranty Expiry Date
When you open the newly registered feeder, you will also see three more new tabs added to
the feeder details except the extended Feeder Console. The three new tabs are: Feeder
Maintenance Status, Feeder Location Assignment History and Feeder Service History.
Figure 5-5 Different tabs of Feeder details
The meanings of these tabs are described below.
5.1.3 Feeder Maintenance Status tab
The maintenance plans are preset from the system and are based on the feeder type. There
are two types of maintenance plans for each feeder type: Date Based Maintenance and Cycle
Based Maintenance.
SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition
26
Note: starting from Feeder Manager 3.0, the maintenance plans of all the feeders are
managed under the feeder types they belong to. In other words, feeder maintenance plan can
only be modified based on feeder types.
Modification of maintenance plan by each individual feeder is no longer supported.

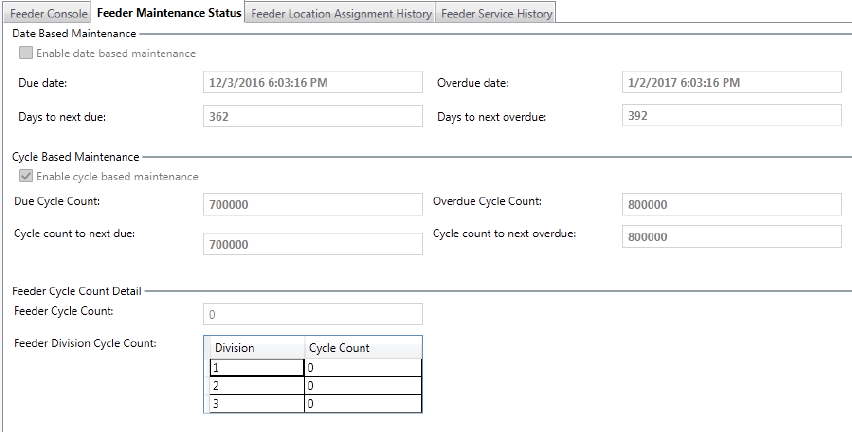

Figure 5-6: Feeder Maintenance Status tab
Note: in the Feeder Maintenance Status of feeder detail, following fields are visible for viewing
information only and cannot be edited. For maintenance plan editing, please see chapter 7,
Feeder Type centric functions, section 7.2.3, Editing the maintenance plan.
5.1.3.1 Date Based Maintenance:
The monitoring is based on the values specified in the Days to next due and Days to next
overdue fields, starting from the feeder's creation date or the last service date.
Enable date based maintenance
If this option shown to be checked, the feeder will be monitored under the date-based
maintenance plan.
Due date
The date this feeder shall become due for servicing, which is based on the maintenance plan
of the particular type this feeder belongs to.
Overdue date
The date this feeder shall become overdue for servicing, which is based on the maintenance
plan of the particular type this feeder belongs to.
SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition
27
Days to next due
The number of days remaining until the aforementioned Due date.
Days to next overdue
The number of days remaining until the aforementioned Overdue date.
5.1.3.2 Cycle Based Maintenance
The Feeder Manager keeps track of the number of pick-ups for each feeder, which is
calculated based on the production data obtained from OIS database and the monitoring is
based on the values specified in the Cycle count to next due and Cycle count to next
overdue fields.
Note: this function relies on the Feeder Manager being able to access OIS database
successfully.
Enable cycle based maintenance
If this option is shown to be checked, the feeder will be monitored under the Cycle Base
maintenance plan.
Due cycle count
The overall pickup cycles which this feeder can endure until it becomes due for servicing. The
value is based on the maintenance plan of the particular type this feeder belongs to.
Overdue cycle count
The overall pickup cycles which this feeder can endure until it becomes overdue for servicing.
The value is based on the maintenance plan of the particular type this feeder belongs to.
Cycle count to next due
The actual remaining cycle counts of this feeder until it becomes due for maintenance.
Cycle count to next overdue
The actual remaining cycle counts of this feeder until it becomes overdue for maintenance.
Note:
It is possible that both date-based and cycle-based maintenance plan are enabled
for one feeder (type).
