SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition
66
Cycle Count to Due
Maintenance due cycles. Allows the user to view the number of cycle counts before a feeder
of this particular feeder type is due for servicing.
Cycle Count to Overdue
Maintenance overdue cycles. Allows the user to view the number of cycle counts before a
feeder of this particular feeder type is overdue for servicing.
7.3.2 Description of the buttons
Browse
Click on this button to browse for the xml file to import a new feeder type.
Save
Click on this button to save the feeder type based on the imported file.
Note:
Only feeder type definition files released by SIPLACE can be imported. Feeder types
imported with this cannot be deleted once the import is done.
7.3.3 Support of new feeder types as of Feeder Manager 3.3
As of Feeder Manager 3.3 the following new feeder types are supported for high speed
machines TX V2:
Order number
Name
141478
SmartFeeder 4mm Xi
141498
SmartFeeder 4mm Xi Splice
141480
SmartFeeder 8mm Xi
141500
SmartFeeder 8mm Xi Splice
141479
SmartFeeder 2x8mm Xi
141499
SmartFeeder 2x8mm Xi Splice
Table 7-2: Feeder Manager coloring scheme
The corresponding xml file is provided in the installation ISO in the Feeder type definitions
directory. After importing the file the types are displayed under Feeder Type – Search
Feeder Type view.
SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition
67
8 Report centric functions
8.1 Feeder Summary Report view
Click on Report – Feeder Summary Report in the menu bar to open the view.
The Feeder Summary Report view is displayed.

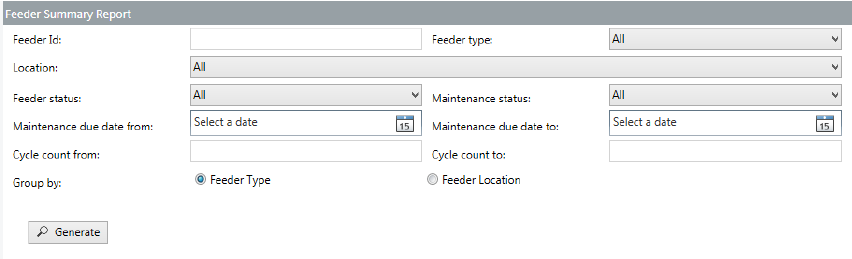

Figure 8-1: Feeder Summary Report view
Enter the details and/or set the filters to generate the desired feeder summary report.
8.1.1 Description of the fields
Feeder Id
Allows the user to search for feeders based on the feeder ID to generate the report.
Feeder type
Allows the user to search for feeders based on the feeder type to generate the report.
Location
Allows the user to search for feeders based on the location to generate the report.
Feeder status
Allows the user to search for feeders based on the feeder status to generate the report.
Maintenance status
Allows the user to search for feeders based on the maintenance status to generate the report.
Maintenance due date from
Allows the user to search for feeders based on the maintenance due date to generate the
report. All feeders that are due for maintenance in the system on/after the selected date,
based on the maintenance plan, are included in the report.
SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition
68
Maintenance due date to
Allows the user to search for feeders based on the maintenance due date to generate the
report. All feeders that are due for maintenance in the system on/before the selected date,
based on the maintenance plan, are included in the report.
Cycle count from
Allows the user to search for feeders based on the cycle count to generate the report. All
feeders that have a cycle count value in the system = or > the selected number of cycles,
based on the maintenance plan, are included in the report.
Cycle count to
Allows the user to search for feeders based on the cycle count to generate the report. All
feeders that have a cycle count value in the system = or < the selected number of cycles,
based on the maintenance plan, are included in the report.
Group by
Two options are available for grouping the records in the report:
– Feeder Type
The records in the report are grouped based on their feeder type.
– Feeder Location
The records in the report are grouped based on their feeder location.
8.1.2 Description of the buttons
Generate
Click on this button to search for feeders matching the criteria and generate the report.
Reset
Click on this button to clear all fields and reset them to their respective default values.
Note:
Maintenance due date to must be >= Maintenance due date from and Today's date
Cycle count to must be >= Cycle count from
Example: Feeder Summary Report Grouped By Feeder Type
