SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition

This step provides an option for you to do the feeder repair along the workflow as well. If you

choose Yes, you are required to enter

Defect category

The following defect categories are provided for selection:

– Electrical error

– Foil disposal unit

– Foil rocker

– Mechanical error

– Normal maintenance

– Pick up window

– Tape drive unit

Service comment

Allows the user to enter a service comment that applies to all feeders being added to the list.

This service comment appears as Feeder Service Comment for each individual feeder in the

list.

Note:

This is a mandatory field, if no service comment is entered for each individual feeder.

If needed, service comments can be entered for specific feeders. If a service comment

is entered for all individual feeders, this field can be left blank.

Part Number and part description

Allows the user to enter up to 10 exchanged spare parts with their part number and

descriptions.

5.4.5 Step 5 – Option to check feeder with SFTS or XFTS again

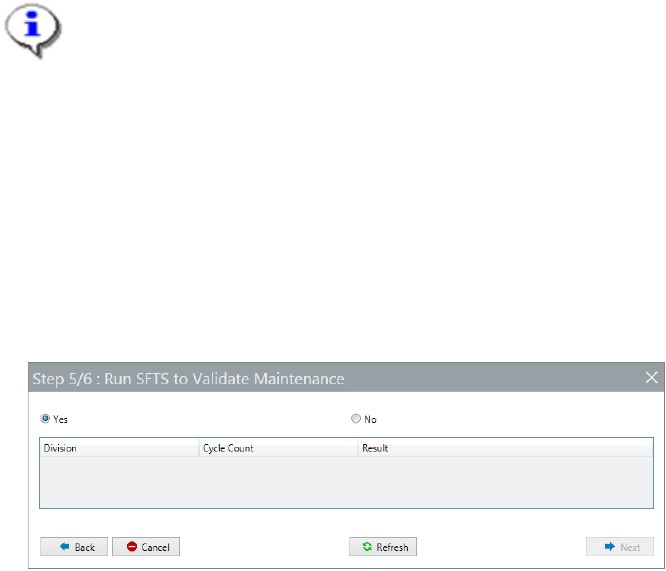

Figure 5-28 Option to check feeder with SFTS or XFTS again

This step allows you to choose whether to conduct another round of SFTS or XFTS test to

verify the maintenance / repair result.

Execute the test if necessary in the same way as described in Step 2, or select No to

proceed.

SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition

5.4.6 Step 6 – Summary

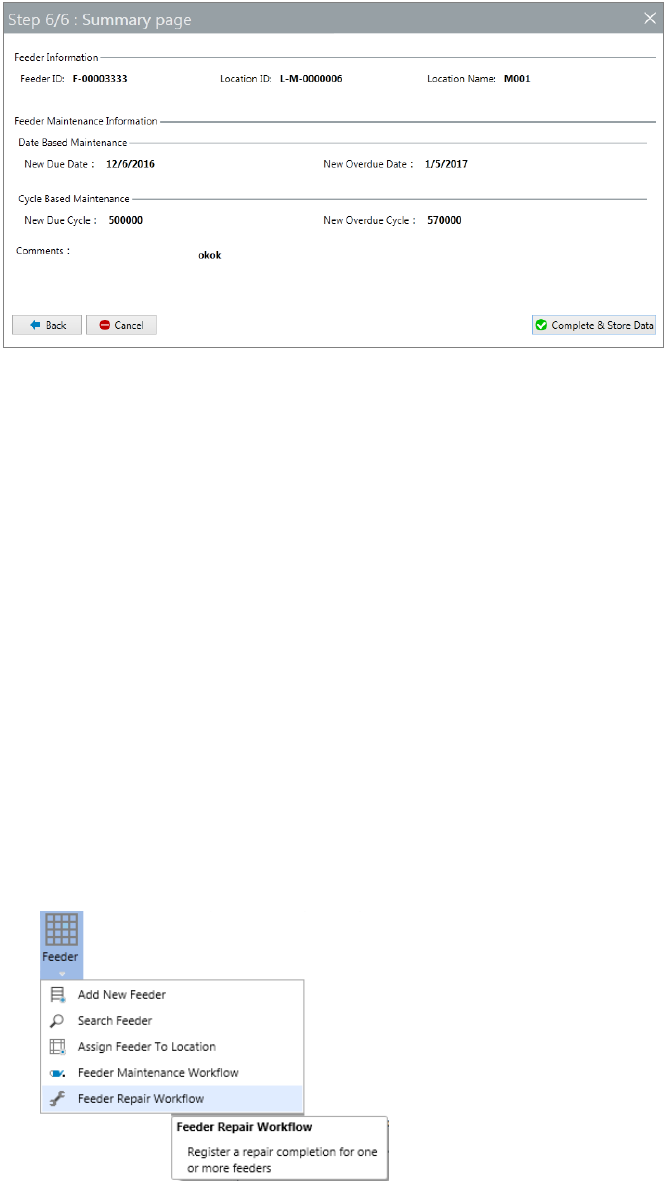

Figure 5-29 Feeder Maintenance Workflow Summary page

The 6

and last step gives you the summary of all the maintenance settings about to be

applied to the feeder.

Check the content to make sure they are correct. You can use the Back button to go to any

previous step for modifications.

Once satisfied, press the Complete & Store Data button to complete the maintenance

workflow for this feeder and store the relevant maintenance data into Feeder Manager

database.

5.5 Feeder Repair Workflow

Note: Feeder Repair workflow will be done in a guided way to avoid unwanted input errors.

The Feeder Repair Workflow can be accessed via two places

1) Via the main meu. Go to Feeder  Feeder Repair Workflow

Figure 5-30 Access Feeder Maintenance Workflow from the main menu

Note: You will need to key in or scan the feeder ID to be maintained.

SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition

2) Via the Action button of Feeder details.

Open up a certain Feeder’s feeder detail view, and then press the Action button to bring

up the dropdown list of actions. Select Feeder Repair Workflow.

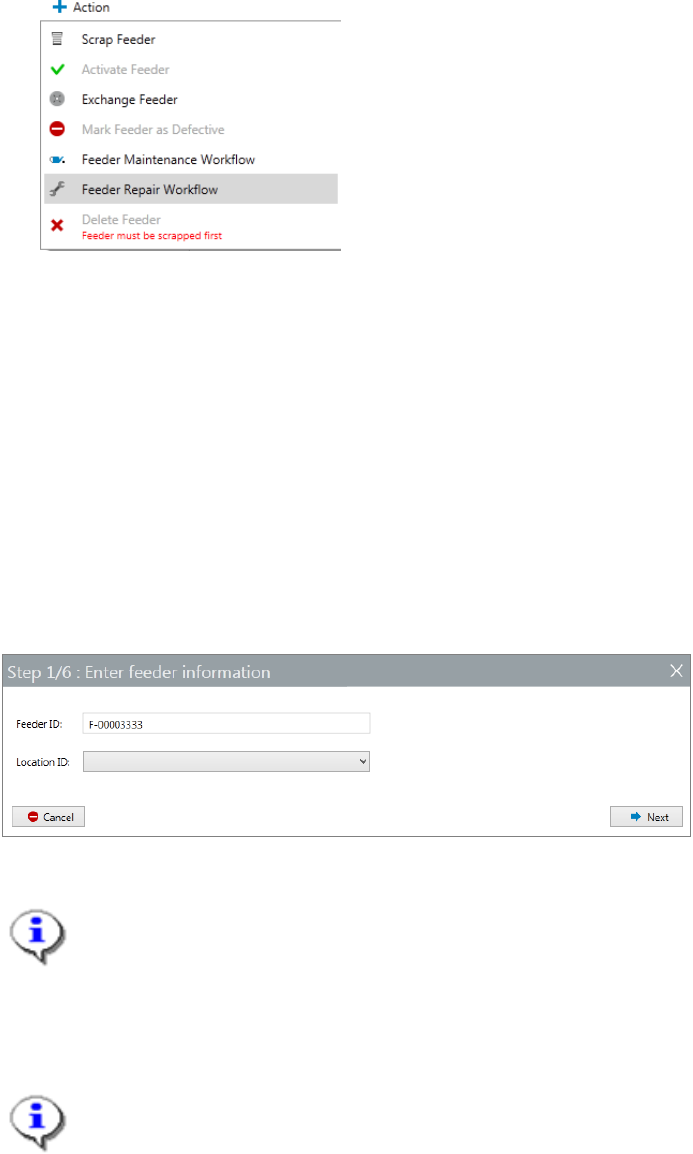

Figure 5-31 Access Feeder Maintenance Workflow from the feeder detail view

Note: in this approach, the Feeder ID of the feeder selected will be pre-entered into the

first page of the Repair Workflow.

The feeder repair workflow will be started and follow the steps below.

5.5.1 Step 1 - Enter feeder information

The first step of the Feeder Repair flow is to request for Feeder ID and the Location this

feeder is to be assigned to for maintaining.

Figure 5-32 Feeder Maintenance Workflow Step 1

Note:

Feeder IDs can also be scanned by using a wired scanner connected to the PC,

see 5.1.1 Add New Feeder view and Feeder Console tab for details.

Feeder ID field will be pre-entered if this workflow is triggered from the Action

dropdown of a selected feeder.

Note:

For the first time this function is used, the Location ID field will be empty. Once a

maintenance location is selected, it will be used as the default maintenance location

for consequent maintenance and repair workflows, until it is changed

Press Next to continue.
