SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition
51
Location ID
If Internal is selected, the value System Assigned is set. If External is selected, this is a
mandatory field, in which a location ID can be entered in any form.
Location name
Allows the user to enter the location name. This is a mandatory field.
Location area
Allows the user to select a location area from the drop-down list. This is a mandatory field.
The following location areas are available:
– Maintenance Area
– Offline Area
– Outside Factory
– Production Area
– Storage Area
Location type
Allows the user to select a location type from the drop-down list. This is a mandatory field.
The following location types are available:
– General Location
– Changeover Table
Note:
Starting from Feeder Manager 2.2 SP1, following location types shall only be imported
from Siplace Pro. Manual creation of these location types are not allowed.
– Docking Station
– Production Line
– Production Line Station
– Production Line Station Location
Description
Allows the user to enter a description for the location.
Parent location ID
The location ID of the parent location is displayed (if any).
Parent name
Allows the user to select the parent location, if the location shall be created as a sub-location
of another location.
Parent description
A description for the parent location is displayed (if any).
SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition
52
6.1.2 Description of the buttons
Save
Click on this button to save the location details.
Print Barcode
Click on this button to print the barcode label for the location.
For the first time when this function is used, the user will be prompted with the standard
Windows printer selection dialog.

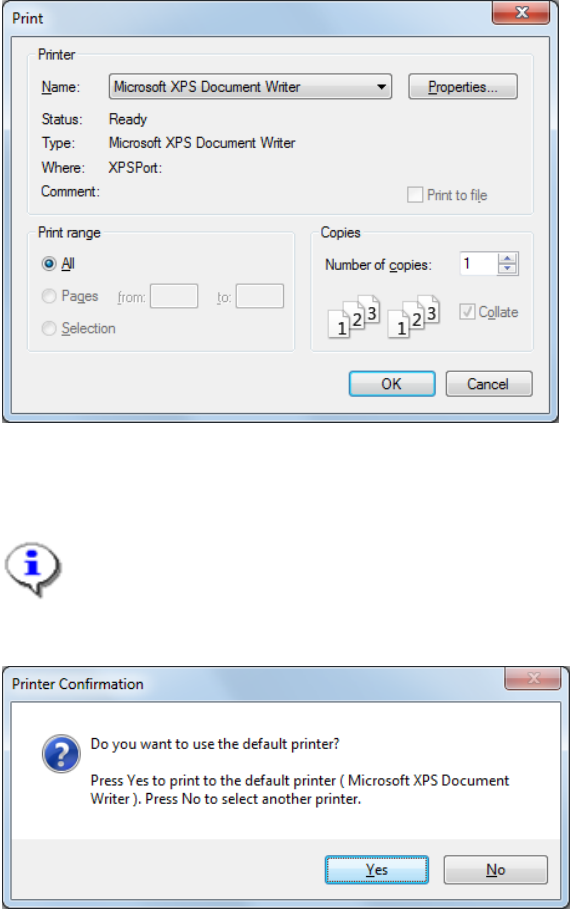

Figure 6-2 Feeder Barcode Printer Selection
User selection will be saved as the default printer for Feeder Manager.
Note:
Feeder Manager default printer is independent of the Windows default printer setting.
See section 9.4 Print Options for details.
For subsequent printing, following message will be shown
Figure 6-3 Feeder Barcode Default Printer Confirmation
Click Yes to directly print to the default printer.
Or
Click No to open the printer selection dialog.
SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition
53
Retire
Click on this button to retire the location. Once retired, the location cannot be used and
the Location status changes to Retired.
Note:
The system does not allow a location to be retired if feeders are assigned to it.
In such cases, the Retire button is disabled.
Activate
Click on this button to activate a retired location.
Upon activation, the location is available for use and the Location status is set back to the
status that was active before retiring.
6.2 Search Location view
Sear Location function can be accessed from the main menu via either
1) Search Search Location or
2) Location Search Location.
The Search Location tab is displayed as following.

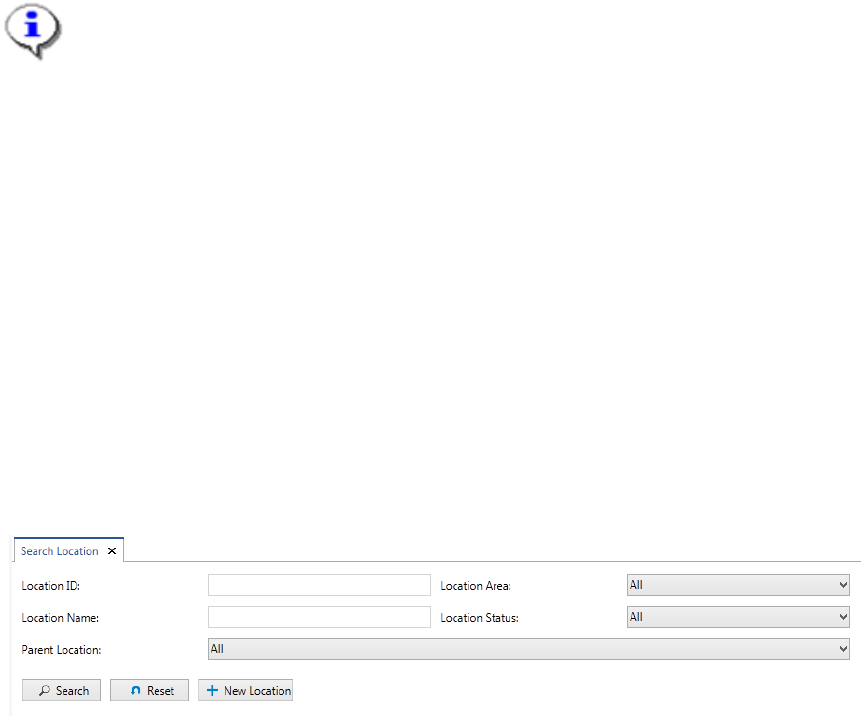

Figure 6-4: Search Location view
Enter the details to search for a location.
6.2.1 Description of the fields
Location ID
Allows the user to enter a location ID to search for.
Location area
Allows the user to select a specific location area to search for or all location areas from the
drop-down list. The following pre-defined location areas exist in the system:
– Storage Area
– Offline Area
– Production Area
– Maintenance Area
– Unknown Location
– Outside Factory
