Module Description
Scope of Delivery Mechanics Assembly Kit for Dual Conveyors
116 PCB Barcode LP-Barcode
2.2.2 Mechanics Assembly Kit for Dual Conveyors
PCB barcode mech. assembly kit DC SX1/2 [00519885-xx]
1 x 03073234- xx Push rod
1 x 03078881- xx T-knob GN 563 l=80 d2=M10
1 x 03084617- xx Ruler bottom SC/DC
1 x 03084762- xx Ruler top SC/DC
1 x 03084879- xx E-chain series 07 B16 R38 / 23 links
1 x 03071902- xx E-chain series 07 B16 R38 / 24 links
20 x 03010690- xx Cable ties 180x4 mm T40R
20 x 00805140- xx Cable binder W=2,4mm L=92mm TYB-23M
1 x 03057342- xx Extension card for TSP-400E options
1 x 00196625- xx Mounting kit PCB barcode SIPLACE SX1/2
Quantity Item No. Designation
Quantity Item No. Designation
1x 03077594-xx
includes
BC Mechanics Assembly Kit DC SX1/SX2
1 x 03071840- xx Barcode adjustment inside
1 x 03072320- xx Cover angle
3 x 03042551- xx ISO 4762 - M 4 x 8-A2-70
1 x 03078736-xx
includes
amongst oth-
ers
Barcode adjustment bottom/right
1 x 03073262- xx Adjustment arm bottom (long pointer for V1-conveyors)
1 x 03095905- xx Adjustment arm bottom (short pointer for V2-conveyors)
1 x 03078311- xx Barcode adjustment top/right
1 x 03078735- xx Barcode adjustment below/left
1 x 03078733- xx Barcode adjustment top/left
2 x 03078730- xx Holder, mirrored
2 x 03077716- xx Holder
9 x 03008815- xx Cable tie mount 22x16
9 x 03042550- xx ISO 4762 - M 4 x 6-A2-70
16 x 03065004- xx ISO 10642 - M3x6-8.8, zinc, TFP
1 x 03073234- xx Push rod
1 x 03078881- xx T-knob GN 563 l=80 d2=M10
1 x 03084617- xx Ruler bottom SC/DC
1 x 03084762- xx Ruler top SC/DC
2 x 03084879- xx E-chain series 07 B16 R38 / 23 links
2 x 03071902- xx E-chain series 07 B16 R38 / 24 links
20 x 03010690- xx Cable ties 180x4 mm T40R
20 x 00805140- xx Cable binder W=2,4mm L=92mm TYB-23M
2 x 03057342- xx Extension card for TSP-400E options
1 x 00196625- xx Mounting kit PCB barcode SIPLACE SX1/2
Module Description
Electrics Assembly Kit for 1D PCB Barcode Scanner [00519890-xx] Scope of Delivery
PCB Barcode LP-Barcode 117
2.2.3 Electrics Assembly Kit for 1D PCB Barcode Scanner [00519890-xx]
2.2.4 Electrics Assembly Kit for 2D PCB Barcode Scanner [00519889-xx]
Quantity Item No. Designation
00519880-xx
contains:
PCB barcode scanner 1D SX machine
Quantities depend on the individual customer order.
2 x 03010316- xx Warning sign no. W216
00519890-xx
includes
Assembly kit PCB barcode electrics 1D SX1/2
1 x 03074066- xx Cable BC scanner DS1500 lane 1 bottom
1 x 03079352- xx Cable BC scanner DS1500 lane 1 top
1 x 03079353- xx Cable BC scanner DS1500 lane 2 bottom
1 x 03079354- xx Cable BC scanner DS1500 lane 2 top
1 x 03078130- xx USB to RS-232 converter 4x
1 x 03051322- xx USB cable type A-plug - B-plug 2m
2 x 03054625- xx Klettostar loop 20x60 mm
2 x 03054626- xx Klettostar hook 20x60 mm
03081757- xx BC-Scanner DS1500 Config. Software
This software is supplied once with each "electrics" mounting kit.
Quantity Item No. Designation
00519881-xx PCB barcode scanner 2D X/SX machine
Quantities depend on the individual customer order
00519889-xx
includes
Assembly kit PCB barcode electrics 2D SX1/2
1 x 03075944- xx Cable barcode scanner DM100 lane 1 bottom
1 x 03079389- xx Cable barcode scanner DM100 lane 1 top
1 x 03079390- xx Cable barcode scanner DM100 lane 2 bottom
1 x 03079391- xx Cable barcode scanner DM100 lane 2 top
1 x 03078149- xx Cable hub supply
1 x 03053145- xx USB hub 2.0 4-port
1 x 03051322- xx USB cable type A-plug - B-plug 2m
2 x 03054625- xx Klettostar loop 20x60 mm
2 x 03054626- xx Klettostar hook 20x60 mm
03079962- xx CD Cognex DataMan software
This software is supplied once with each "electrics" mounting kit.
Module Description
Tools and Equipment Required Electrics Assembly Kit for 2D PCB Barcode Scanner [00519889-xx]
118 PCB Barcode LP-Barcode
2.3 Tools and Equipment Required
▪ Allen key set
▪ Set of screwdrivers
▪ Diagonal cutter
2.4 Prerequisites
▪ The top code must be at least 3 mm from the side edges of the boards.
▪ The bottom code must be at least 3 mm from the side edges of the boards.
▪ Only one code can be read on the board: either top or bottom.

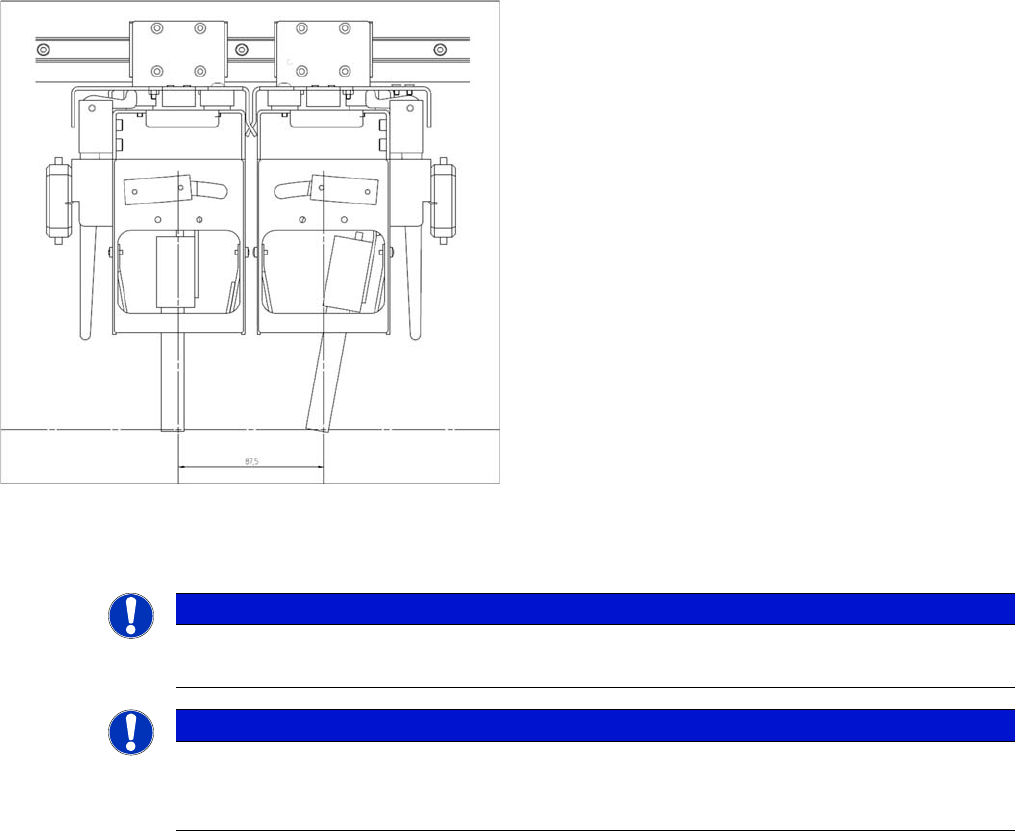

Minimum space between the barcode labels on lane 1 and 2
2.5 Restrictions
2.6 PCB Barcode Scanner Serial Number
The serial number of the barcode scanner can be found on the bottom of the scanner.
The minimum distance for the lens axes or the center-
point of the field of vision is approx. 88 mm. Taking into
consideration the field of vision width, a minimum space
is required between the barcode labels at lanes 1 and 2
(this does not apply to scanning of 1D codes in the X di-
rection). This is, in practice, only relevant if the PCB width
at lane 1 is near to the maximum width of the conveyor
lane.
NOTICE
Combination of various scanner types not possible
1D and 2D scanners can not be combined in one and the same machine.
NOTICE
Machines up to serial number K0261
Machines up to and including serial number K0261 can only be retrofitted with additional work.
Please contact your SIPLACE Service team in Munich for details.
