Setting up and Commissioning 1D PCB Barcode Scanner Configuring the PCB Barcode Scanner PCB Barcode LP-Barcode 171 "Edit Configuration" dialog – "Aux Int." tab "Edit Configuration" dialog – …
Setting up and Commissioning
Configuring the PCB Barcode Scanner 1D PCB Barcode Scanner
170 PCB Barcode LP-Barcode
"Edit Configuration" dialog – "Main Int." tab
"Edit Configuration" dialog – "Main Int." tab
The parameters for the MAIN interface, which connects the barcode scanner to the conveyor control (for
transfer of read code data), are set in the Main Int tab.
► Accept the values shown in the screenshot (1).
Setting up and Commissioning
1D PCB Barcode Scanner Configuring the PCB Barcode Scanner
PCB Barcode LP-Barcode 171
"Edit Configuration" dialog – "Aux Int." tab
"Edit Configuration" dialog – "Aux Int." tab
The parameters for the AUX interface (RS232), which connects the WinHost with the barcode scanner,
are set in the Aux. Int tab, for barcode scanner setup purposes.
► Accept the values shown in the screenshot (1).
Setting up and Commissioning
Configuring the PCB Barcode Scanner 1D PCB Barcode Scanner
172 PCB Barcode LP-Barcode
"Edit Configuration" dialog – "Data Format" tab
"Edit Configuration" dialog – "Data Format" tab

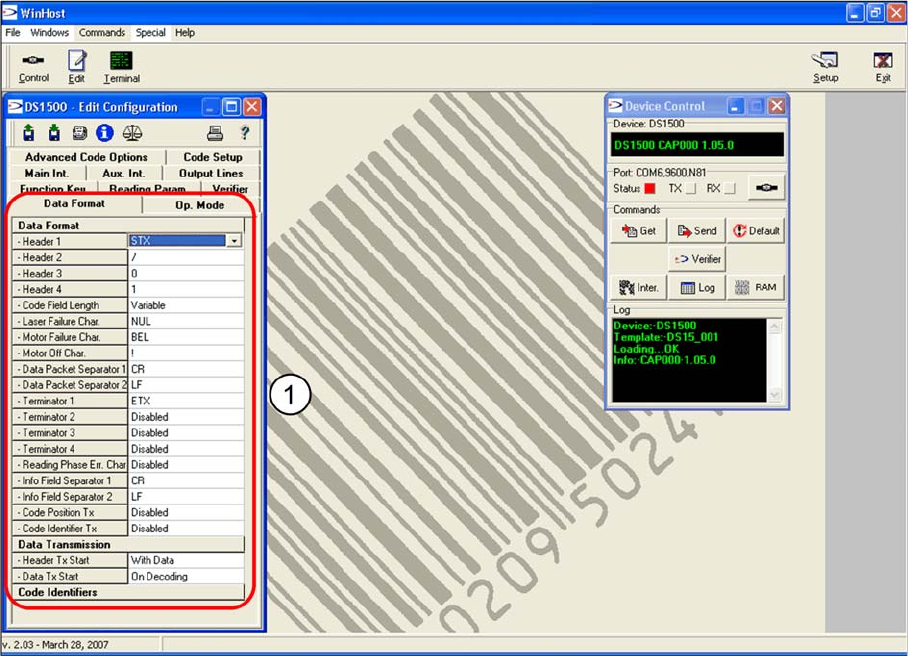

The data string structure is shown in the Data Format tab.
► Accept the values shown in the screenshot (1).
