Setting up and Commissioning
Preparing the SIPLACE SX Installing the PCB Barcode Scanner
PCB Barcode LP-Barcode 147
Option boards on conveyor control 1 and conveyor control 2
► Fit the option board on the conveyor control and fix into place with four screws.
You need to fit one option board for each conveyor control when using machines with a dual con-
veyor.
► To do this, loosen the screw (1) and remove the cover.
Setting up and Commissioning
Installing the PCB Barcode Scanner Fitting and Fastening the Mounting Frame
148 PCB Barcode LP-Barcode
3.2.6 Fitting and Fastening the Mounting Frame
Fitting the mounting frame in the machine base
Fitting the mounting frame - example without barcode scanner
► Remove the cover on the PCB barcode scanner installation position in the machine base.
Setting up and Commissioning
Fitting and Fastening the Mounting Frame Installing the PCB Barcode Scanner
PCB Barcode LP-Barcode 149
► To do this, position the push rod (1) and carefully pull the cover out.
The installation position can now be accessed.
► Pull the push rod off the cover and insert it into the mounting frame.
► Insert the mounting frame into the guide rails (2) and use the push rod to move it carefully into the
installation position (3 to 5).
When moving the mounting frame, take care that the fixtures for the pointer (3a) do not scratch the
paint (you may need to screw the holders back in again).
► Remove the push rod and keep this for future use.
Fastening the mounting frame in the machine base

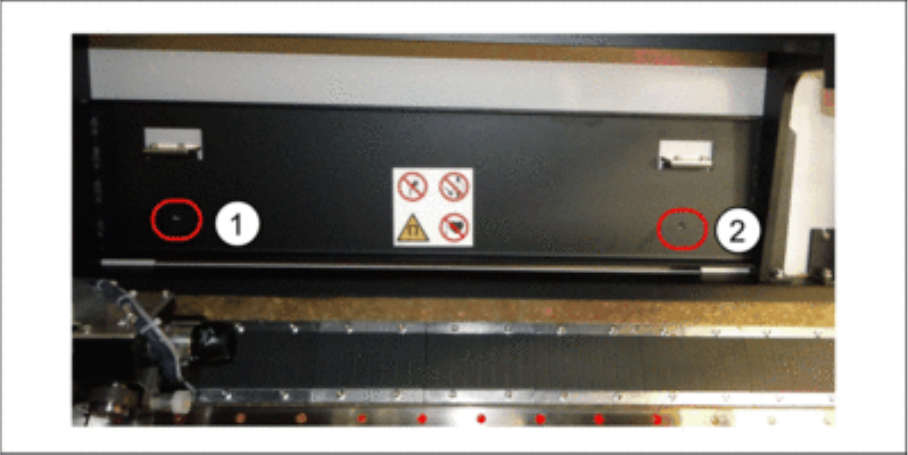

Installation position on the machine base and fixture position from inside
► Fix the mounting frame from inside with two M6 screws to the positions 1 and 2.
