3.3 Configuring the PCB Barcode Scanner
3.3.1 1D PCB Barcode Scanner
When first installing a 1D PCB barcode scanner, you need to also install the driver software for the
RS232/USB converter.
3.3.1.1 Installing the Driver Software
The driver software for the RS232/USB converter is supplied on a CD. It can also be downloaded from
the Download Center.
► Log into Windows at the station computer as an administrator.
After connecting the converter to the machine controller and before installing the driver software, a mes-
sage will appear in the Windows task bar, informing you that new hardware has been detected.
You may see a dialog appear several times, in which you will be asked to make the required files avail-
able.
► Cancel this dialog each time with Cancel
► Place the CD into the drive.
The installation program can be found at:
\\driver\windows\PL-2303 Driver Installer_JetCon_2.0.2.1
► Doubleclick on the installation program.
The Windows Installer will open.
► Follow the instructions of the installer and click on Finish to finish the installation.
► Briefly unplug the USB connection to the converter from the machine controller and then plug back
in again.
This ensures that the new hardware is detected and linked to the driver.
A message will appear in the Windows task bar, indicating that new hardware has been found and can
be used.
► Take the CD out of the CD drive.
► Check the driver installation and hardware detection in the Device Manager (Start – System Control
– System – Hardware – Device Manager).
Setting up and Commissioning
1D PCB Barcode Scanner Configuring the PCB Barcode Scanner
PCB Barcode LP-Barcode 163

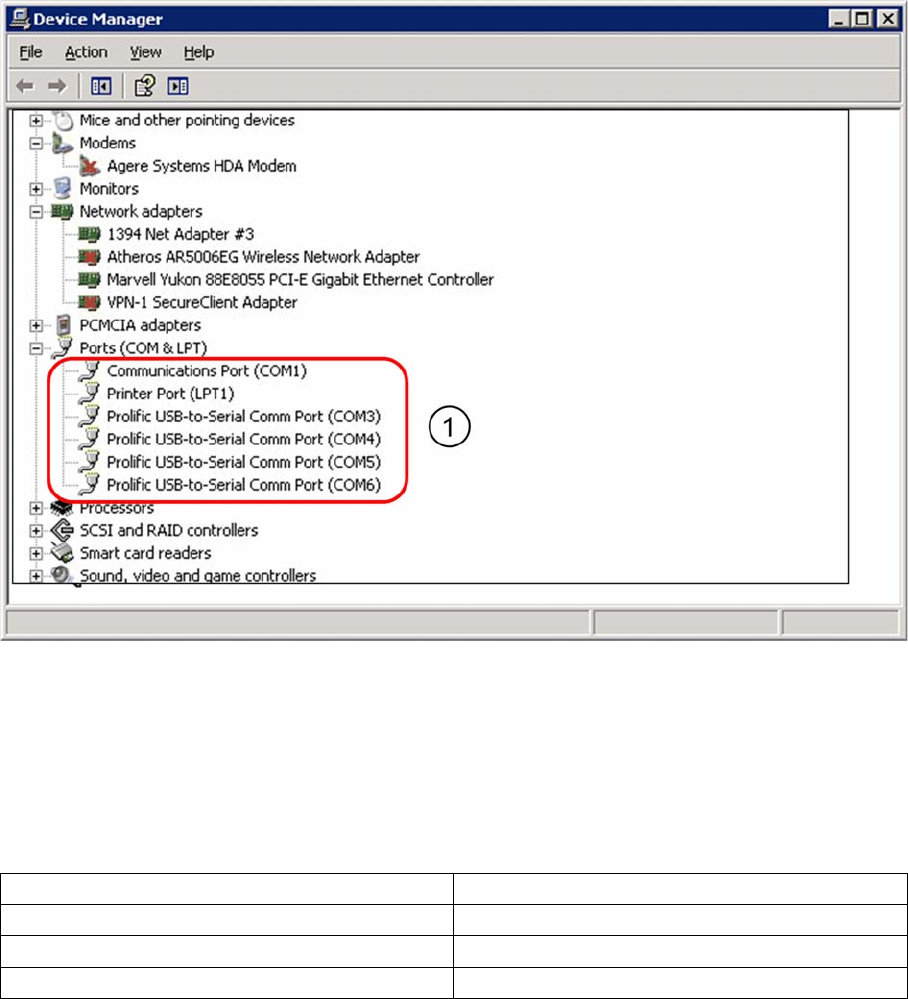

Occupied COM ports in the Device Manager
Legend
1. Virtual COM ports for connecting the barcode scanner
The COM ports 3-6 have been defined in the example shown. However, other ports can be defined if
required.
The barcode scanners are assigned to the virtual COM ports as follows:
In these examples, "n" specifies the lowest of the 4 COM port numbers assigned.
The next step shows how to install and configure the barcode scanner software.
Conveyor lane 1 (right), underside COM_n
Conveyor lane 1 (right), upper side COM_n+1
Conveyor lane 2 (left), underside COM_n+2
Conveyor lane 1 (left), upper side COM_n+3
Setting up and Commissioning
Configuring the PCB Barcode Scanner 1D PCB Barcode Scanner
164 PCB Barcode LP-Barcode
3.3.1.2 Installing and Configuring the Barcode Scanner Software
The barcode scanner software Datalogic WinHost is supplied on a CD. However, it can also be down-
loaded from the Download Center.
This software is used to configure the scanner. It is not needed during productive operations. If required,
it can be started from the Windows interface of the station computer.
Installing the Barcode Scanner Software
► Log into Windows at the station computer as an administrator.
► Place the CD into the drive.
► Doubleclick on the file IndexD0.exe.
The WinHost 2.02 window will open.

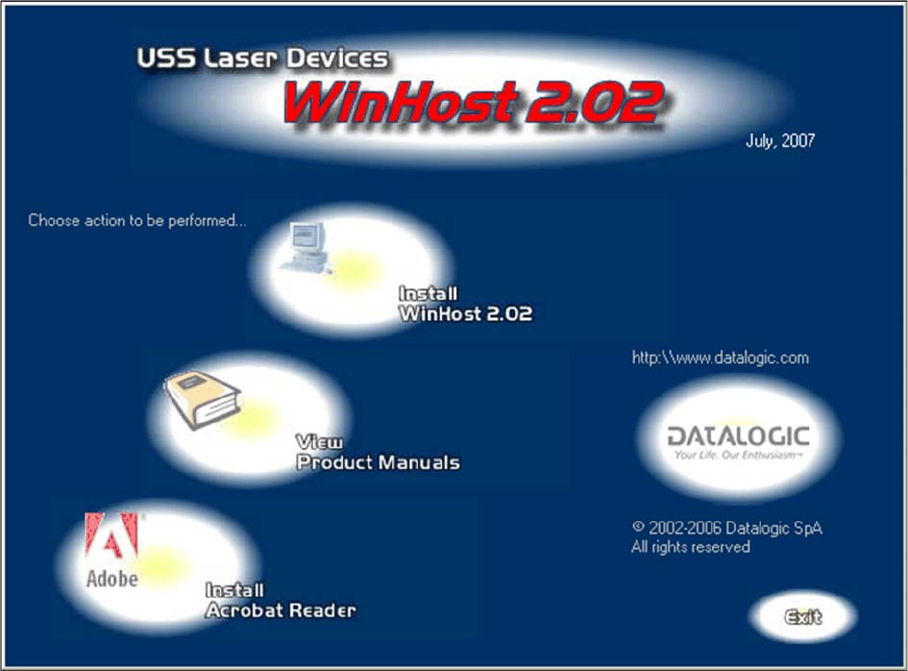

WinHost 2.02 window
► Click on the Install WinHost 2.02 icon.
This starts the InstallShield Wizard for WinHost 2.02.
