Setting up and Commissioning
Fitting and Fastening the Mounting Frame Installing the PCB Barcode Scanner
PCB Barcode LP-Barcode 149
► To do this, position the push rod (1) and carefully pull the cover out.
The installation position can now be accessed.
► Pull the push rod off the cover and insert it into the mounting frame.
► Insert the mounting frame into the guide rails (2) and use the push rod to move it carefully into the
installation position (3 to 5).
When moving the mounting frame, take care that the fixtures for the pointer (3a) do not scratch the
paint (you may need to screw the holders back in again).
► Remove the push rod and keep this for future use.
Fastening the mounting frame in the machine base
Installation position on the machine base and fixture position from inside
► Fix the mounting frame from inside with two M6 screws to the positions 1 and 2.
Setting up and Commissioning
Installing the PCB Barcode Scanner Connecting the Barcode Scanner to the SIPLACE SX
150 PCB Barcode LP-Barcode
3.2.7 Connecting the Barcode Scanner to the SIPLACE SX
Cable clamp on the machine base
► Pull the barcode scanner cable into the machine and fix it into place on the machine base with the
cable clamp (1).
► Remove the plastic bag.
► Run the cable through the recess in the housing (2) and on towards the conveyor control.
Setting up and Commissioning
Connecting the Barcode Scanner to the SIPLACE SX Installing the PCB Barcode Scanner
PCB Barcode LP-Barcode 151
3.2.7.1 Connecting the 1D PCB Barcode Scanner

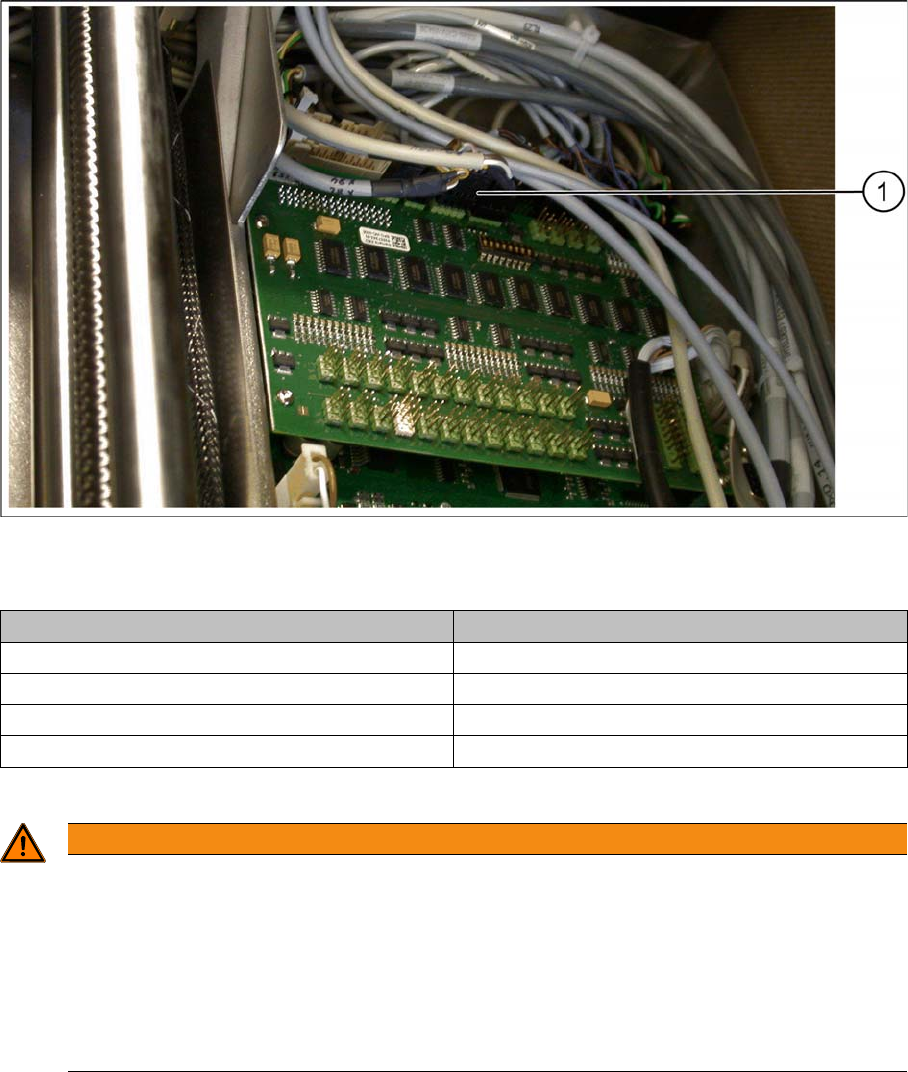

Option board on conveyor lane 1 with connected barcode scanner cables
► Connect each barcode scanner according to the wiring plan on the option board (1):
You can use the diagram on the inside of the conveyor control cover for help.
Conveyor lane Connections on relevant option board
Conveyor lane 1 top X82 on X82 and X84 on X84
Conveyor lane 2 top X82 on X82 and X84 on X84
Conveyor lane 1 bottom X81 on X81 and X83 on X83
Conveyor lane 2 bottom X81 on X81 and X83 on X83
WARNING
Handling the cable
Cables may only be connected to or disconnected from the machine when currentless.
The connector encoding informs the conveyor control that a scanner is to be used at the rele-
vant installation position. If the scanner is missing, an error message will be issued.
► Please note that scanner cables may only be connected to the option board if the corre-
sponding scanner has been fitted.
► Take care that the cables do not get into the hazard area of the machine.
