Setting up and Commissioning Installing the PCB Barcode Scanner Installing the 1D PCB Barcode Scanner 128 PCB Barcode LP-Barcode Parallel to the Direction of Travel, Right Fitting the barcode scanner on the right, into t…
Setting up and Commissioning
Installing the 1D PCB Barcode Scanner Installing the PCB Barcode Scanner
PCB Barcode LP-Barcode 127
1D barcode scanner parallel to the direction of travel, installation on left
Legend
► Wind up the cable and fix it into place (see "3.2.3.4 Winding and Fixing the Cable" [ ➙ 138]).
1 Fixing bracket 2 2D BC holding bracket right
3 Barcode scanner with cover angle 4 1D BC holding bracket right and left
5 2D BC holding bracket left 6 Position for connector
Setting up and Commissioning
Installing the PCB Barcode Scanner Installing the 1D PCB Barcode Scanner
128 PCB Barcode LP-Barcode
Parallel to the Direction of Travel, Right
Fitting the barcode scanner on the right, into the fixing bracket
Fitting the barcode scanner on the right, into the fixing bracket - two views
Legend
► Fasten the holding bracket with the barcode scanner (3) to the right side of the fixing bracket (1).
Insert the screws (2) from the outside to do this.
1 Fixing bracket [03084155-xx] 2 Two screws [03007733-xx]
3 Holding bracket with barcode scanner 4 Clamping piece [03071701-xx]
Setting up and Commissioning
Installing the 1D PCB Barcode Scanner Installing the PCB Barcode Scanner
PCB Barcode LP-Barcode 129
Fitting the fixing bracket into the holder

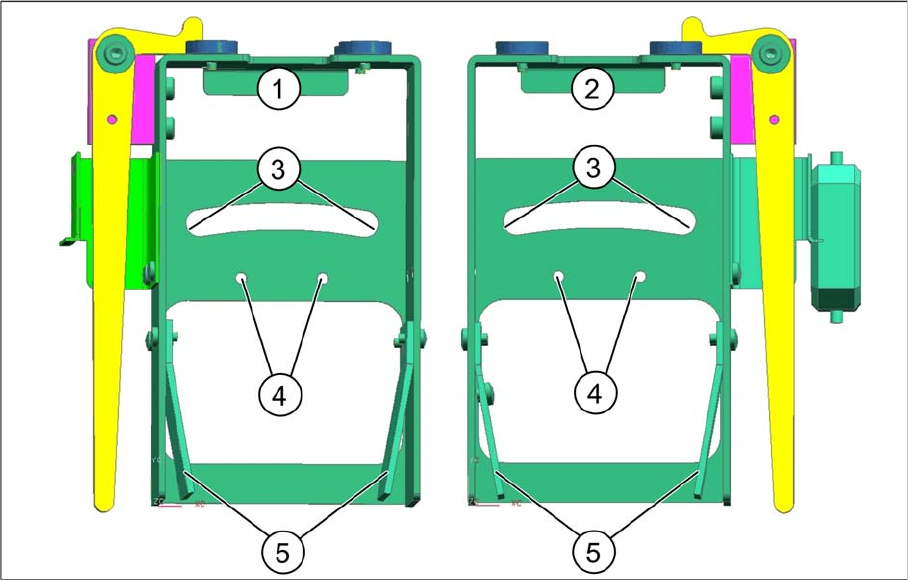

Installation position in the holder
Legend
► Position the fixing bracket from above onto the arched aperture (3) and the arched clamping piece
from below, against the aperture and then screw both together from above.
By moving the fixing bracket along the arched aperture, you can adjust the angle from approx. 5° to
15°. Fixing the bracket in the center of the aperture (3) achieves approx. 10°.
► Fasten unused BC holding brackets to the positions shown at (5).
► Wind up the cable and fix it into place (see "3.2.3.4 Winding and Fixing the Cable" [ ➙ 138]).
See also
3.2.2.3.1 Parallel to the Direction of Travel, Left [ ➙ 125]
1 Holder for BC scanner, mirrored [03078730-
xx]
2 Holder for BC scanner [03083937-xx]
3 Arched aperture with mounting position for fix-
ing bracket and clamping piece, BC scanner
right / left
4 Mounting position for BC scanner, cross an-
gles
5 Park positions for unused BC holding brackets
