Setting up and Commissioning Fitting and Fastening the Mounting Frame Installing the PCB Barc ode Scanner PCB Barcode LP-Barcode 149 ► To do th is, position the push rod (1) and carefully pu ll the cover out. The install…
Setting up and Commissioning
Installing the PCB Barcode Scanner Fitting and Fastening the Mounting Frame
148 PCB Barcode LP-Barcode
3.2.6 Fitting and Fastening the Mounting Frame
Fitting the mounting frame in the machine base
Fitting the mounting frame - example without barcode scanner
► Remove the cover on the PCB barcode scanner installation position in the machine base.
Setting up and Commissioning
Fitting and Fastening the Mounting Frame Installing the PCB Barcode Scanner
PCB Barcode LP-Barcode 149
► To do this, position the push rod (1) and carefully pull the cover out.
The installation position can now be accessed.
► Pull the push rod off the cover and insert it into the mounting frame.
► Insert the mounting frame into the guide rails (2) and use the push rod to move it carefully into the
installation position (3 to 5).
When moving the mounting frame, take care that the fixtures for the pointer (3a) do not scratch the
paint (you may need to screw the holders back in again).
► Remove the push rod and keep this for future use.
Fastening the mounting frame in the machine base
Installation position on the machine base and fixture position from inside
► Fix the mounting frame from inside with two M6 screws to the positions 1 and 2.
Setting up and Commissioning
Installing the PCB Barcode Scanner Connecting the Barcode Scanner to the SIPLACE SX
150 PCB Barcode LP-Barcode
3.2.7 Connecting the Barcode Scanner to the SIPLACE SX

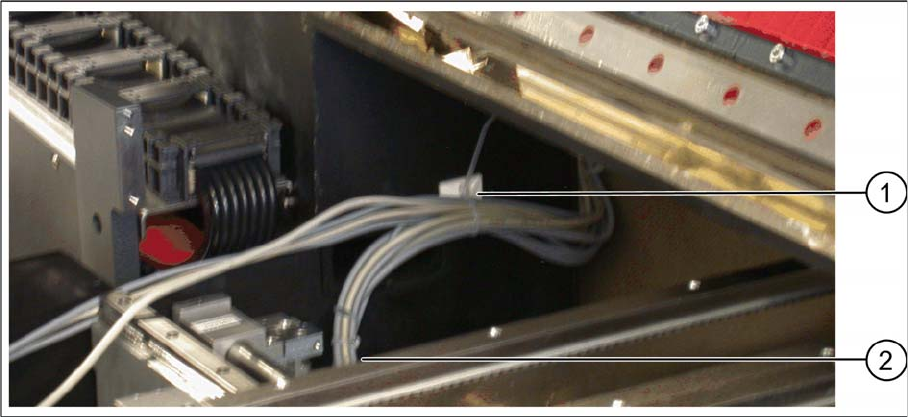

Cable clamp on the machine base
► Pull the barcode scanner cable into the machine and fix it into place on the machine base with the
cable clamp (1).
► Remove the plastic bag.
► Run the cable through the recess in the housing (2) and on towards the conveyor control.
