Setting up and Commissioning
Configuring the PCB Barcode Scanner 2D PCB Barcode Scanner
178 PCB Barcode LP-Barcode
Configuring the Barcode Scanner Software
► If the software is not automatically started after completion of the installation, doubleclick on the icon
for configuration of the Cognex DataMan
software on your desktop. The welcome page for the Cognex DataMan setup tool will be shown.
Setup tool start page
When you enable the ScanPorts function, the setup tool searches for all scanners connected via USB.
Each scanner connected for the first time will have a virtual COM port assigned to it, which it will keep
for future use.
The setup tool can only set up a connection to one scanner at a time. After the program start, you need
to select the scanner to which a connection is to be made from the list of all connected scanners.
You therefore need to assign the maximum of 4 scanners in the machine to the 4 COM numbers, in order
to specifically address any one of the scanners.
We recommend the following procedure for initial installation:
▪ First connect just one scanner to the USB hub and assign a COM number to it using the Scan Ports-
function.
▪ Now repeat this procedure for all other scanners, one after the other. The machine can remain
switched on and the setup tool open.
This ensures that the order of COM numbers assigned also matches the order in which the scanners
were connected to the hub.
If the scanners have been connected in sequence to the hub locations 1-2-3-4, the order of COM num-
bers will be: lane 1 bottom, lane 1 top, lane 2 bottom, lane 2 top. The automatically assigned COM num-
bers could then, for example, be: COM5, COM6, COM7, COM8.
Setting up and Commissioning
2D PCB Barcode Scanner Configuring the PCB Barcode Scanner
PCB Barcode LP-Barcode 179

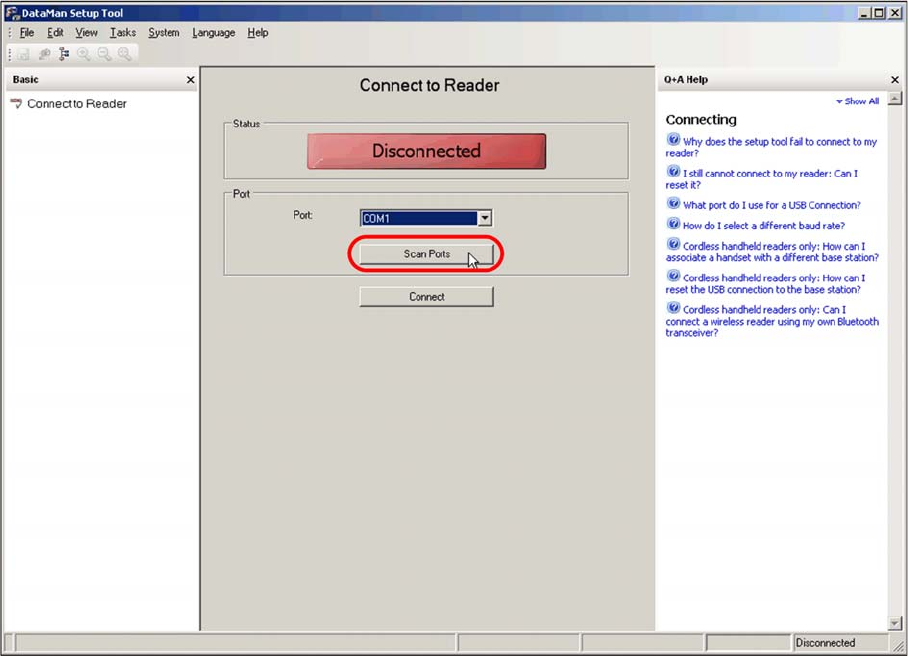

"Connect to Reader" view - searching for barcode scanners
► Click on ScanPorts.
The software will search for connected barcode scanners.
Setting up and Commissioning
Configuring the PCB Barcode Scanner 2D PCB Barcode Scanner
180 PCB Barcode LP-Barcode

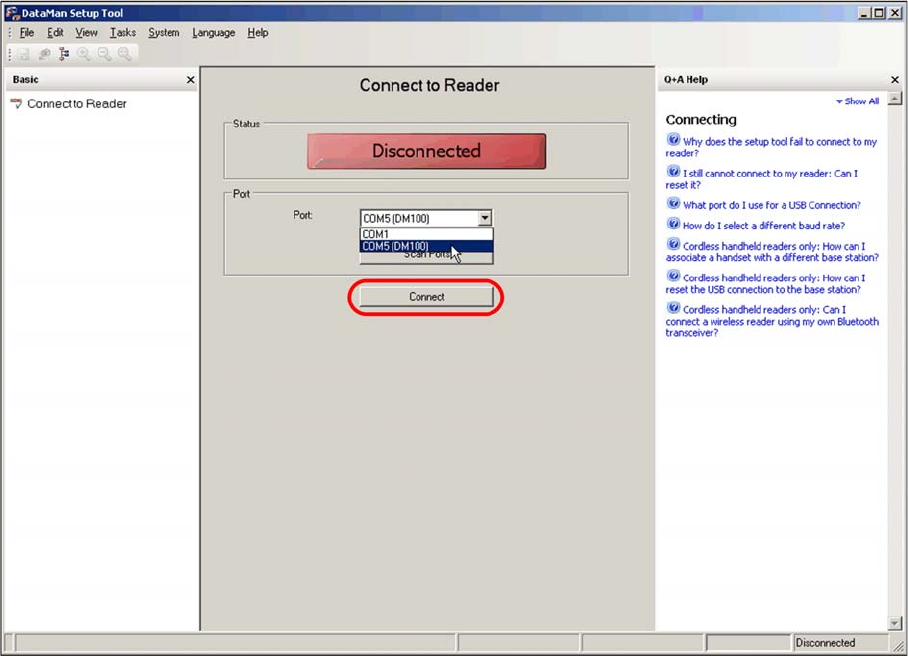

"Connect to Reader" view - connecting to the barcode scanner
► Select a COM port with DM100 from the pull down menu.
► Click on Connect.
The software will connect to the barcode scanner at the selected port.
