Annex Technical Data - 1D PCB Barcode Scanner PCB Barcode LP-Barcode 195 4 Annex 4.1 Technical Data - 1D PCB Barcode Scanner Technical data. Scan field diagram Dimensions (L x W x H) 40 x 30 x 20 mm 3 Weight 44 grams Wav…
Setting up and Commissioning
Removing the PCB Barcode Adjusting the Machine Configuration in the Station Software.
194 PCB Barcode LP-Barcode
Annex
Technical Data - 1D PCB Barcode Scanner
PCB Barcode LP-Barcode 195
4 Annex
4.1 Technical Data - 1D PCB Barcode Scanner
Technical data.
Scan field diagram
Dimensions (L x W x H)
40 x 30 x 20 mm
3
Weight 44 grams
Wave length 600 to 680 nm
Laser class Class 2, in line with DIN EN 60825-1, class II - CDRH
Scanning frequency 800 to 1200 scans/second
Code types Code 39, Code 128, Code 93, Codabar, EAN, EAN 128, UPC, 2/
5 Interleaved, Pharma Code, ISTB 128
Barcode length
single conveyor
dual conveyor, asynchronous
dual conveyor, synchronous
max. 40 characters
max. 40 characters
max. 40 characters
Data interface RS232, RS485
Electrical connection 15-pin D-Sub HD connector
Operating voltage 5 V- ± 5 %
Scan field diagram of 1D PCB barcode scanner
(0/0) is the centerpoint of the laser beam output window.
Prerequisites
Code = Interleaved 2/5 or Code 39
PCS = 0.90
"Pitch" angle = 0°
"Skew" angle = 15°
"Tilt" angle = 0°
Motor control = speed_3 (800 scans/s)
This parameter can be set in WinHost.
Annex
Technical Data - 1D PCB Barcode Scanner Circuit Plan 1D PCB Barcode Scanner
196 PCB Barcode LP-Barcode

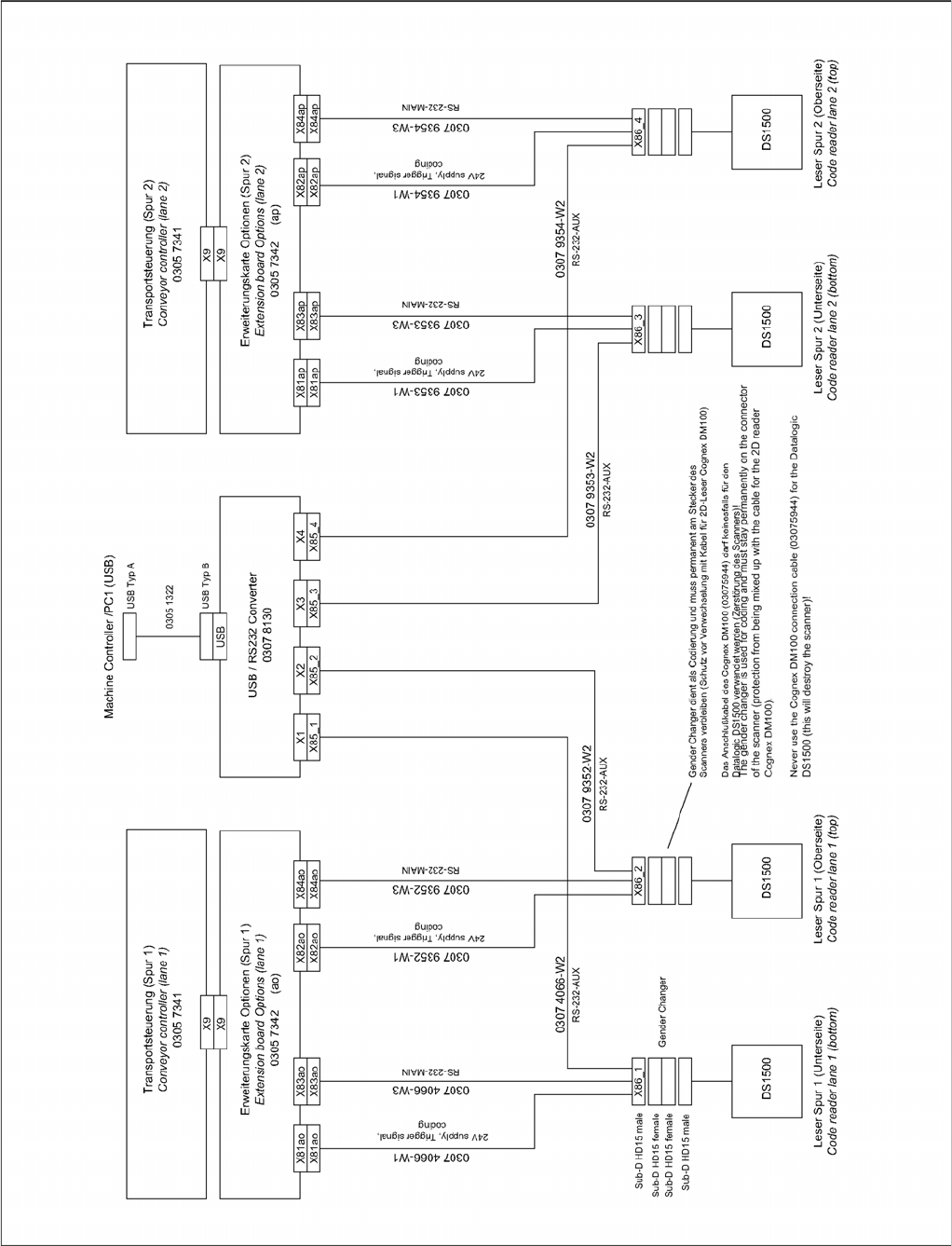

4.1.1 Circuit Plan 1D PCB Barcode Scanner
Circuit plan of the 1D PCB barcode scanner
