Setting up and Commissioning

Connecting the Barcode Scanner to the SIPLACE SX Installing the PCB Barcode Scanner

PCB Barcode LP-Barcode 155

3.2.7.2 Connecting the 2D PCB Barcode Scanner

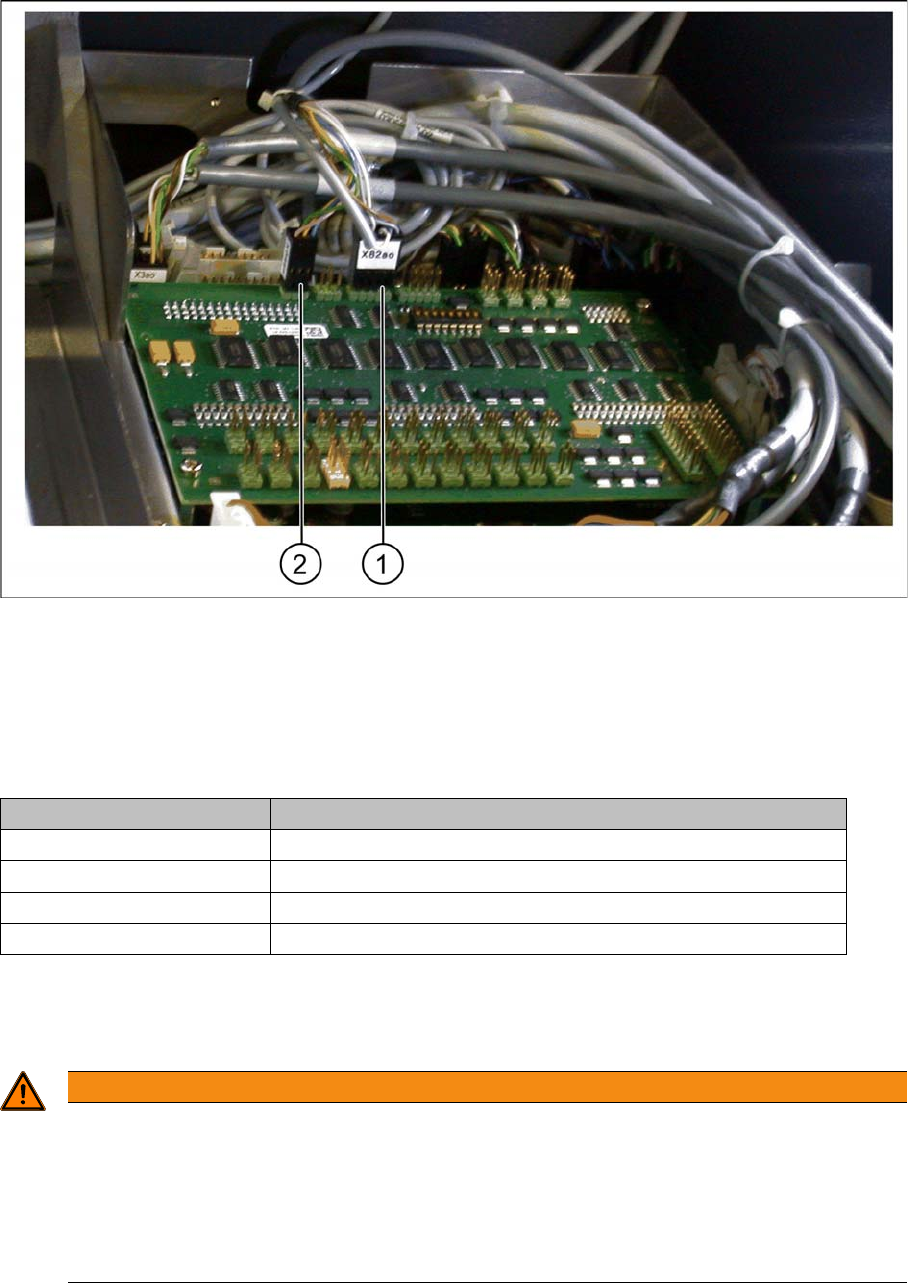

Example: connection of 2D PCB barcode scanner to lane 1, top

Legend

► Connect each barcode scanner according to the wiring plan on the option board:

You can use the diagram on the inside of the conveyor control cover for help.

► Run the connection cable to the USB hub (0307 7944-W3) out of the conveyor control tray, at the

back left.

1 Connection X82 2 Connection X84

Conveyor lane Connections on relevant option board

Conveyor lane 1 top X82 and X84

Conveyor lane 2 top X82 and X84

Conveyor lane 1 bottom X81 and X83

Conveyor lane 2 bottom X81 and X83

WARNING

Handling the cable

Cables may only be connected to or disconnected from the machine when currentless.

The connector encoding informs the conveyor control that a scanner is to be used at the rele-

vant installation position. If the scanner is missing, an error message will be issued.

Please note that scanner cables may only be connected to the option board if the correspond-

ing scanner has been fitted.

Setting up and Commissioning

Installing the PCB Barcode Scanner Connecting the Barcode Scanner to the SIPLACE SX

156 PCB Barcode LP-Barcode

Fitting the cover and hub

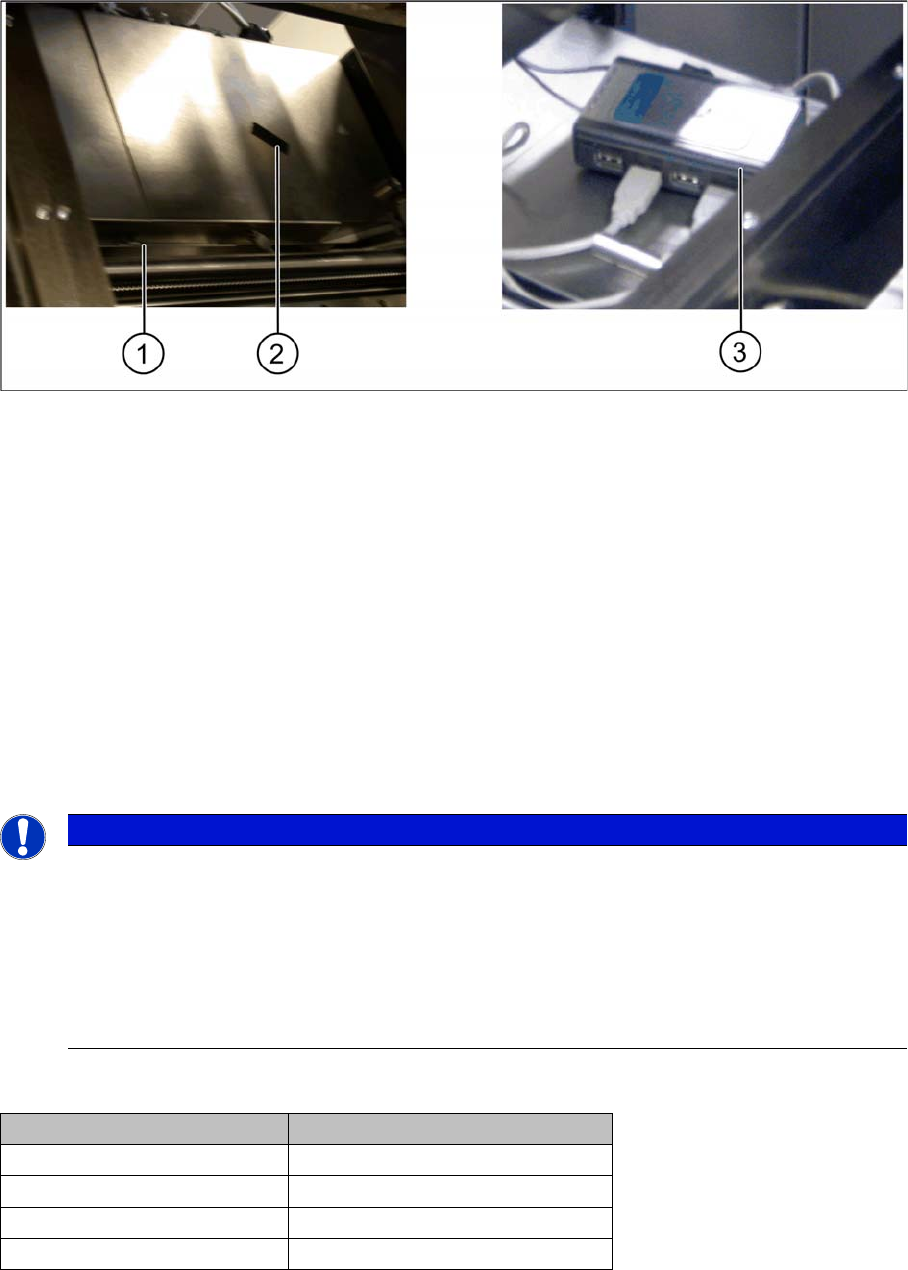

Conveyor control 1 and 2 – cover fitted and USB hub fixed

Legend

1. Nib of cover

2. Hook and loop fastening tape

3. USB hub fixed

► Refit the conveyor control cover(s). Fit the nib (1) under the screw and then fix the covers(s) into

place with the screw.

► Fix the USB hub on one of the two conveyor controls with the help of the hook and loop fastening

tape (2) provided.

► Connect the connection cable for the USB hub to connection X9 of the USB hub.

► Connect the relevant USB cable for the installed barcode scanner(s) to the respective USB hub con-

nection.

Connections and conveyor lanes

NOTICE

Assigning the USB connections in the setup tool of the barcode scanner software

During barcode scanner configuration, the setup tool assigns each scanner connected for the

first time a virtual COM port, which is kept for future use. As the setup tool can only ever estab-

lish a connection to one scanner at a time, we recommend that - on initial installation - you con-

nect just one scanner to the USB hub and let the setup tool then allocate a virtual COM port

and COM number to this. See "3.3.2.1.2 Configuring the Barcode Scanner Software" [ ➙ 178].

► Repeat this procedure for all barcode scanners to be connected.

Conveyor lane Connections on the USB hub

Conveyor lane 1 top X85_2 on X2

Conveyor lane 2 top X85_4 on X4

Conveyor lane 1 bottom X85_1 on X1

Conveyor lane 2 bottom X85_3 on X3

Setting up and Commissioning

Connecting the Barcode Scanner to the SIPLACE SX Installing the PCB Barcode Scanner

PCB Barcode LP-Barcode 157

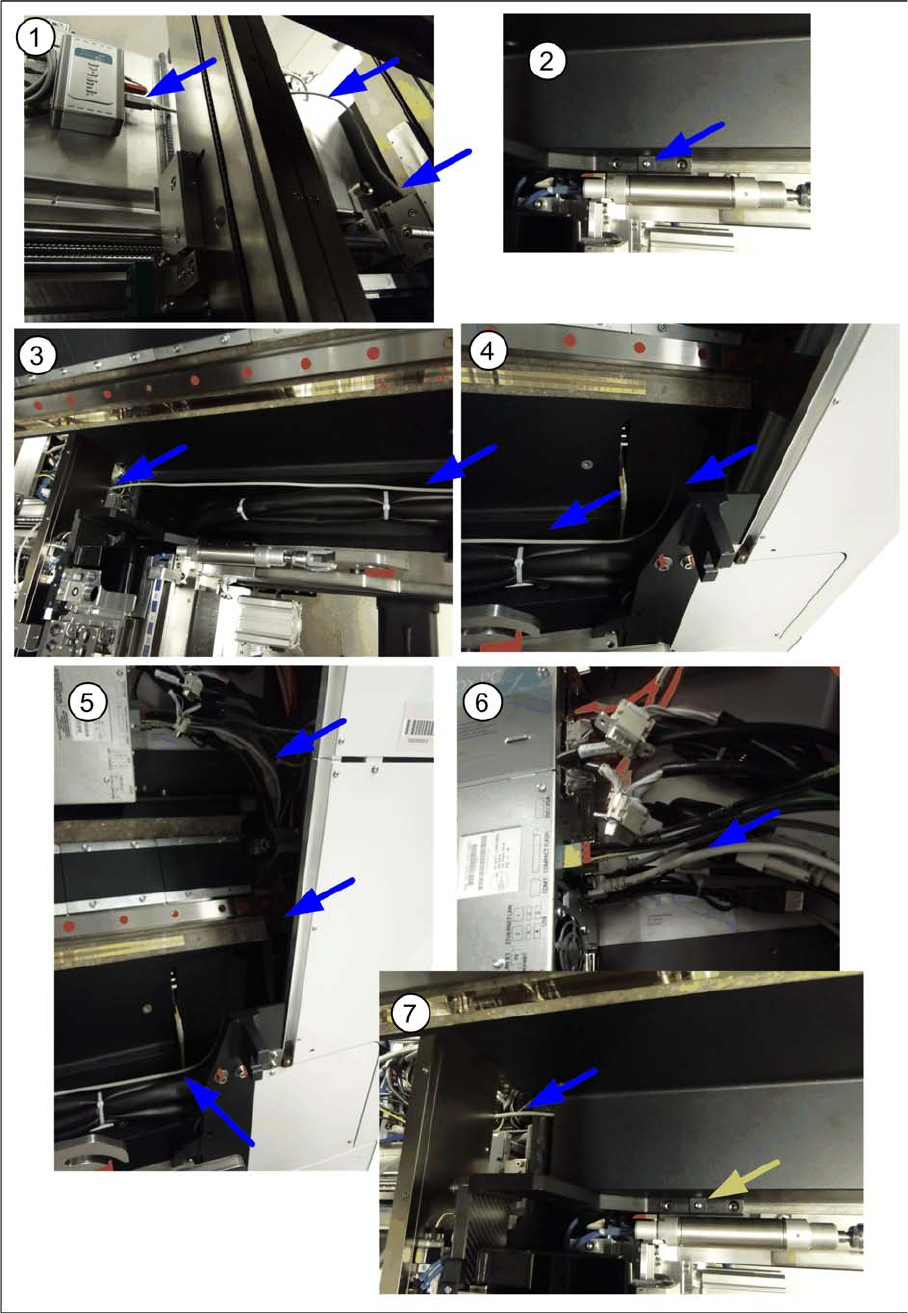

Running the USB cable from the hub to the box PC

► Connect the USB cable to the relevant connection on the hub and run the cable over the conveyor

control cover towards the Box PC (1).
