Annex
Technical Data - 1D PCB Barcode Scanner Circuit Plan 1D PCB Barcode Scanner
196 PCB Barcode LP-Barcode
4.1.1 Circuit Plan 1D PCB Barcode Scanner

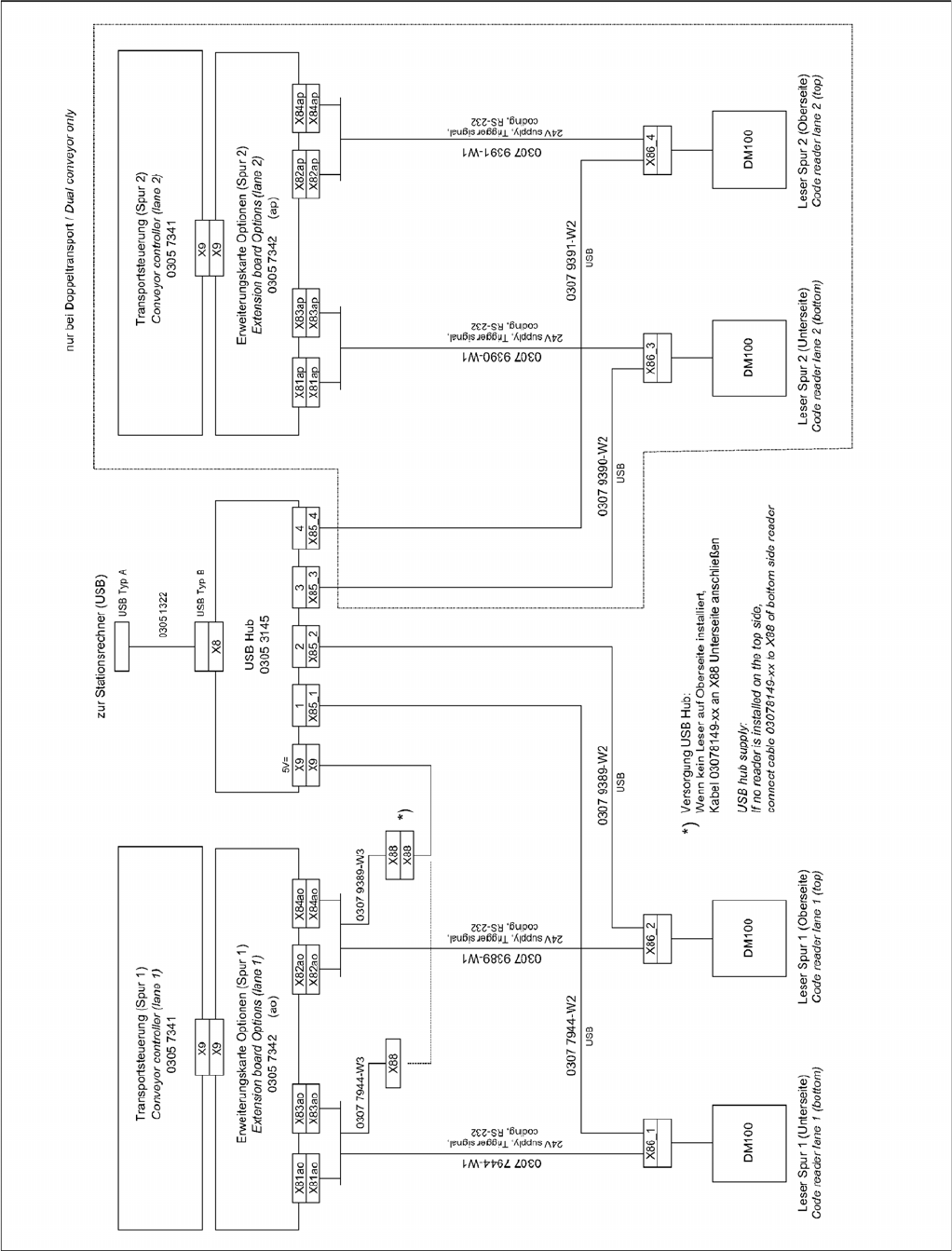

Circuit plan of the 1D PCB barcode scanner
Annex
Circuit Plan 1D PCB Barcode Scanner Technical Data - 2D PCB Barcode Scanner
PCB Barcode LP-Barcode 197
4.2 Technical Data - 2D PCB Barcode Scanner
Dimensions (L x W x H)
55 x 42 x 22 mm
3
Weight 125 grams
Wave length 600 to 680 nm
Code types 2D Data matrix ECC 0, 50, 80, 100, 140 and 200. Data matrix
ECC200, QR code, MicroQR code
Barcode length
single conveyor
dual conveyor, asynchro-
nous
dual conveyor, synchronous
max. 40 characters
max. 40 characters
max. 40 characters
Maximum size of code includ-
ing rest zone
8 x 8 – 14 x 14 mm (note: when using code sizes over 8 x 8 mm,
the valid position of the code on the board is limited in the X direc-
tion)
Minimum cell size 10 x 10 mil
Data interface RS232, USB 2.0
Electrical connection 15-pin D-Sub HD connector
Operating voltage 5 V to 24 V
Annex
Technical Data - 2D PCB Barcode Scanner Circuit Plan 2D PCB Barcode Scanner
198 PCB Barcode LP-Barcode
4.2.1 Circuit Plan 2D PCB Barcode Scanner
Circuit plan of the 2D PCB barcode scanner
