Setting up and Commissioning Installing the PCB Barcode Scanner Preparing the SIPLACE SX 146 PCB Barcode LP-Barcode 3.2.5 Preparing the SIPLACE SX ► End all tasks on the SIPLACE SX and shut down the machine. ► Switch of …
Setting up and Commissioning
Running the Cables Installing the PCB Barcode Scanner
PCB Barcode LP-Barcode 145
3.2.4.4 Running the Cable at the Mounting Frame
► Pull a plastic bag over the loose cable ends.
This makes it easier to thread the cables into the SIPLACE SX later on.
Running the cable at the mounting frame - example with
-
out holders fitted
► Run the cable set along the mounting frame and fix it
with cable ties to the cable clamps (1).
► Prepare the following cable lengths (3) for connection
of the conveyor control and the converter or hub,
measured from the last cable clamp on the mounting
frame (2):
⇨ Length of cable to conveyor control 1: 480 mm
⇨ Length of cable to conveyor control 2: 1000 mm
⇨ Length of cable to converter or hub: 900 mm
Setting up and Commissioning
Installing the PCB Barcode Scanner Preparing the SIPLACE SX
146 PCB Barcode LP-Barcode
3.2.5 Preparing the SIPLACE SX
► End all tasks on the SIPLACE SX and shut down the machine.
► Switch off the machine at the main switch and secure it to prevent unauthorized reactivation.
► Remove the changeover tables from the machine.
► Move the component heads manually to the back.
► Release the conveyor sides, so that these can be adjusted to make room for working.
Access to the conveyor control system
Fitting the option board

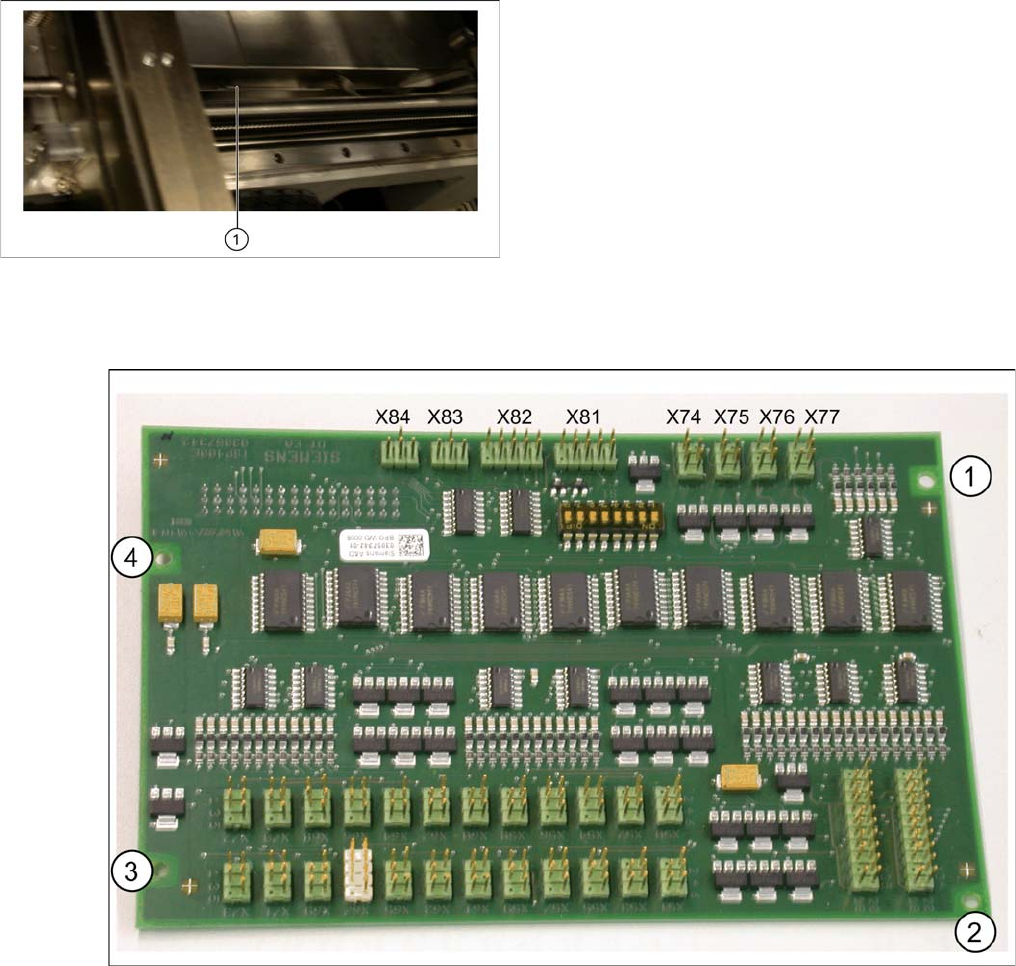

Option board with connections and drilled holes
Position of the fixture screw (1)
► Remove the cover from the conveyor control. To do
this, unscrew the relevant fixture screw until you can
take off the cover. Do not remove the screw!
► Lift the cover carefully out of the machine, making
sure that it does not catch on any parts.
You will need to remove both covers on machines
with a dual conveyor.
Setting up and Commissioning
Preparing the SIPLACE SX Installing the PCB Barcode Scanner
PCB Barcode LP-Barcode 147

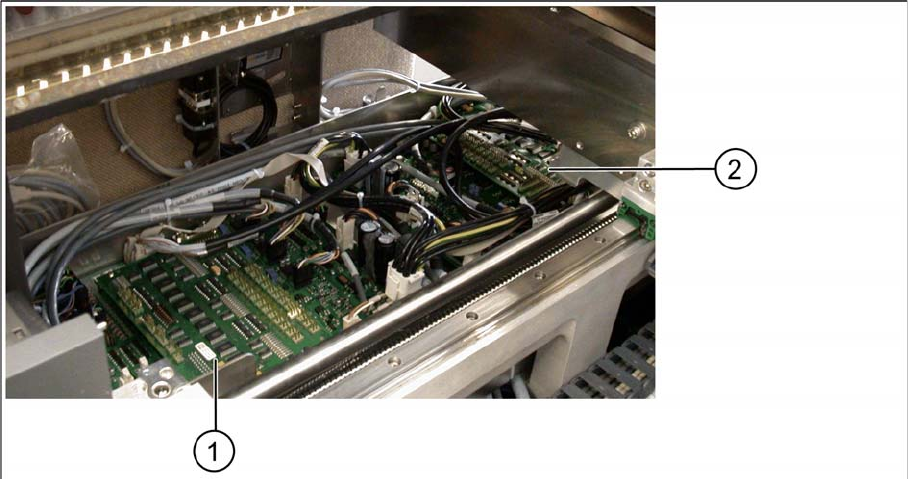

Option boards on conveyor control 1 and conveyor control 2
► Fit the option board on the conveyor control and fix into place with four screws.
You need to fit one option board for each conveyor control when using machines with a dual con-
veyor.
► To do this, loosen the screw (1) and remove the cover.
