Maintenance Adjustment Light Transfer-Head Assembly (8 nozzles) This section describes the procedures for entering the offset for the Z-axis origin. ・ Tools None ・ Jig Nozzle 130 1 pc or 8 pcs. 4-2-3 Z-axis Origin Offset…
Maintenance Adjustment LIght Transfer-Head Assembly (8 nozzles)
Remarks
Item
Press [Unlock] and [Xyaxis org offset mgf teach] simultaneously.
The head camera recognizes the mark.
The offset for the magnification of the camera
is entered.
Press [Unlock] and [Run] simultaneously.
The X- and the Y-axes return to the
origin.
Offset range:
Board recognition
camera:
X mag.: 0.0096 to 0.0104
Y mag.: 0.0096 to 0.0104
Origin offset:
X: -2.0 mm to +2.0 mm
Y: -2.0 mm to +2.0 mm
5
6
7

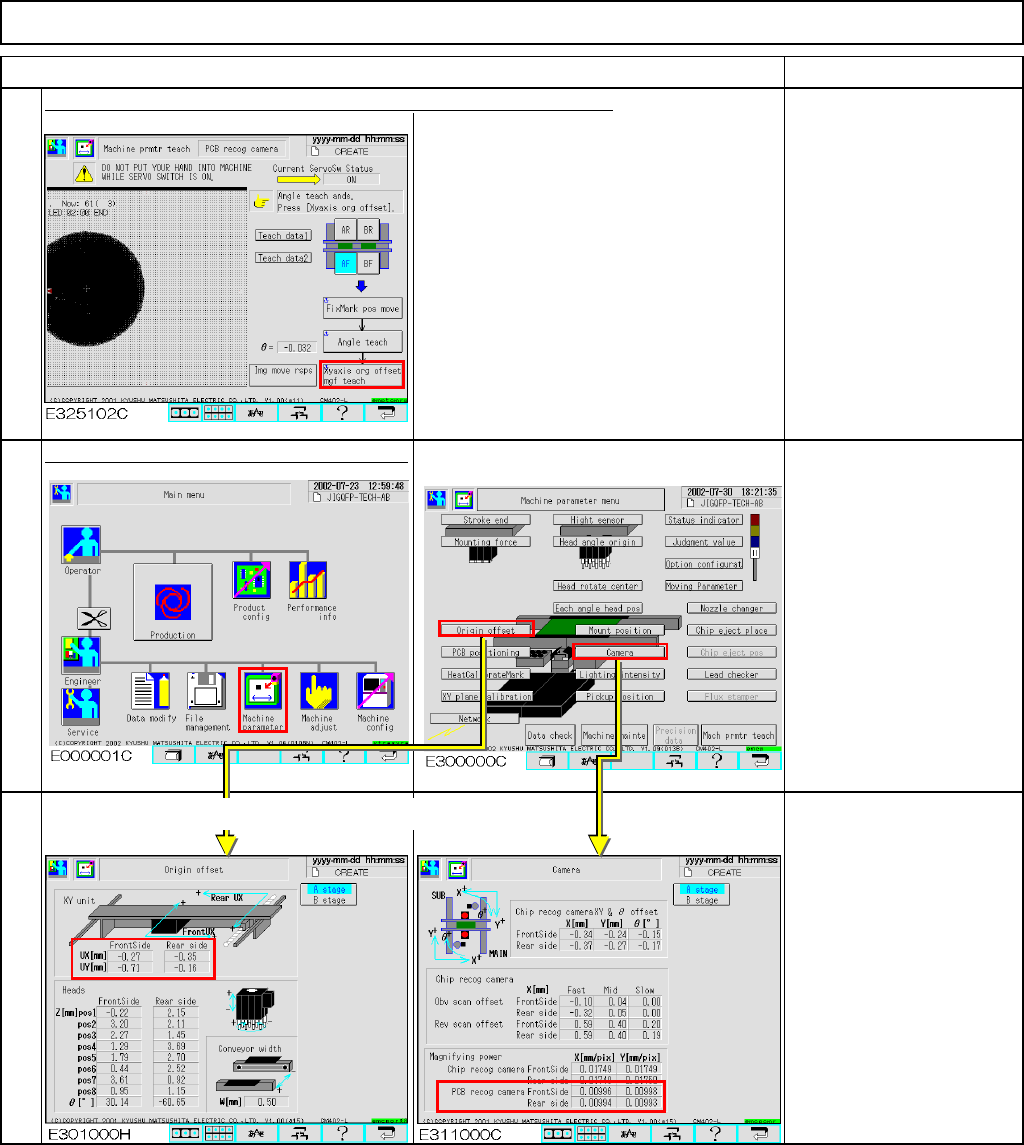

Offsets are entered automatically into the screen below:
EJM8A-E-SMA040202-A01-00
Page 4-2-2-3
Maintenance Adjustment Light Transfer-Head Assembly (8 nozzles)
This section describes the procedures for entering the offset for the Z-axis origin.
・Tools
None
・Jig
Nozzle 130
1 pc or 8 pcs.
4-2-3 Z-axis Origin Offset
Clean the upper surface of the themarl correction mark beforehand.
Remove the feeder cover.
Assembly
Adjustment
min.
Teaching
5min.
Total Time Weight of
Part
Removal
Disassembly
min.
5min.
kgs
Caution
Dange
r
Warning
EJM8A-E-SMA040203-A01-00
Page 4-2-3-1
Maintenance Adjustment Light Transfer-Head Assembly (8 nozzles)
Remarks
Press [Zaxis origin offset].
When using eight
nozzles, follow Steps 1 to
8.
Select the stage to be taught.
When selecting the
stage, check that [Gang]
is selected.
Press [Unlock] and [Return to origin] simultaneously.
The selected stage returns to the origin.
Press [Unlock] and [Jig setting] simultaneously.
The head moves to the nozzle setting
position (over the NG box).
Set Nozzle 130 on each
nozzle position.
2
3
4
Item
1
EJM8A-E-SMA040203-A01-00
Page 4-2-3-2
