Maintenance Part Replacement 12-Nozzle Head Teaching Remarks Item Once the width has been adjusted, press [Offset set]. The preset offset is changed to the new one. Press the [Return] key. Max: 460 mm+/-0.2mm Min: 50 mm+…
Maintenance Part Replacement 12-Nozzle Head Teaching
Remarks
Press [W axis origin offset].
Select the desired stage.
Press [Unlock] and [Return to origin] simultaneously.
The width adjusting axis returns to the
origin.
Press [Unlock] and one of the arrow keys - [
↑] or [↓] - simultaneously.
Moving the width adjusting axis and
measuring the width of the conveyor with
a ruler, adjust the width to 460.5 mm.
Each time the [Key rsps] key is pressed,
the amount by which the axis moves is
changed from 0.01 mm to 0.1 mm to 1
mm.
Specifications:
460.5 mm + 0mm to
0.2mm
(460.5mm to 460.7mm)
1
Item
2
3
4
EJM8A-E-SMA051105-A01-00
Page 5-11-5-2
Maintenance Part Replacement 12-Nozzle Head Teaching
Remarks
Item
Once the width has been adjusted, press [Offset set].
The preset offset is changed to the new
one.
Press the [Return] key.
Max: 460 mm+/-0.2mm
Min: 50 mm+/-0.2mm
The offset is entered into the screen below:
Offset range:
0.00mm to +5.00mm
7
6
5
EJM8A-E-SMA051105-A01-00
Page 5-11-5-3
Machinery Part Replacement
This section describes the procedures for determining the mounting height and for positioning the board.
Tools
None
Jig
FM-1074
Board jig 50 mm x 50 mm
(with a hole)
Nozzle 130S

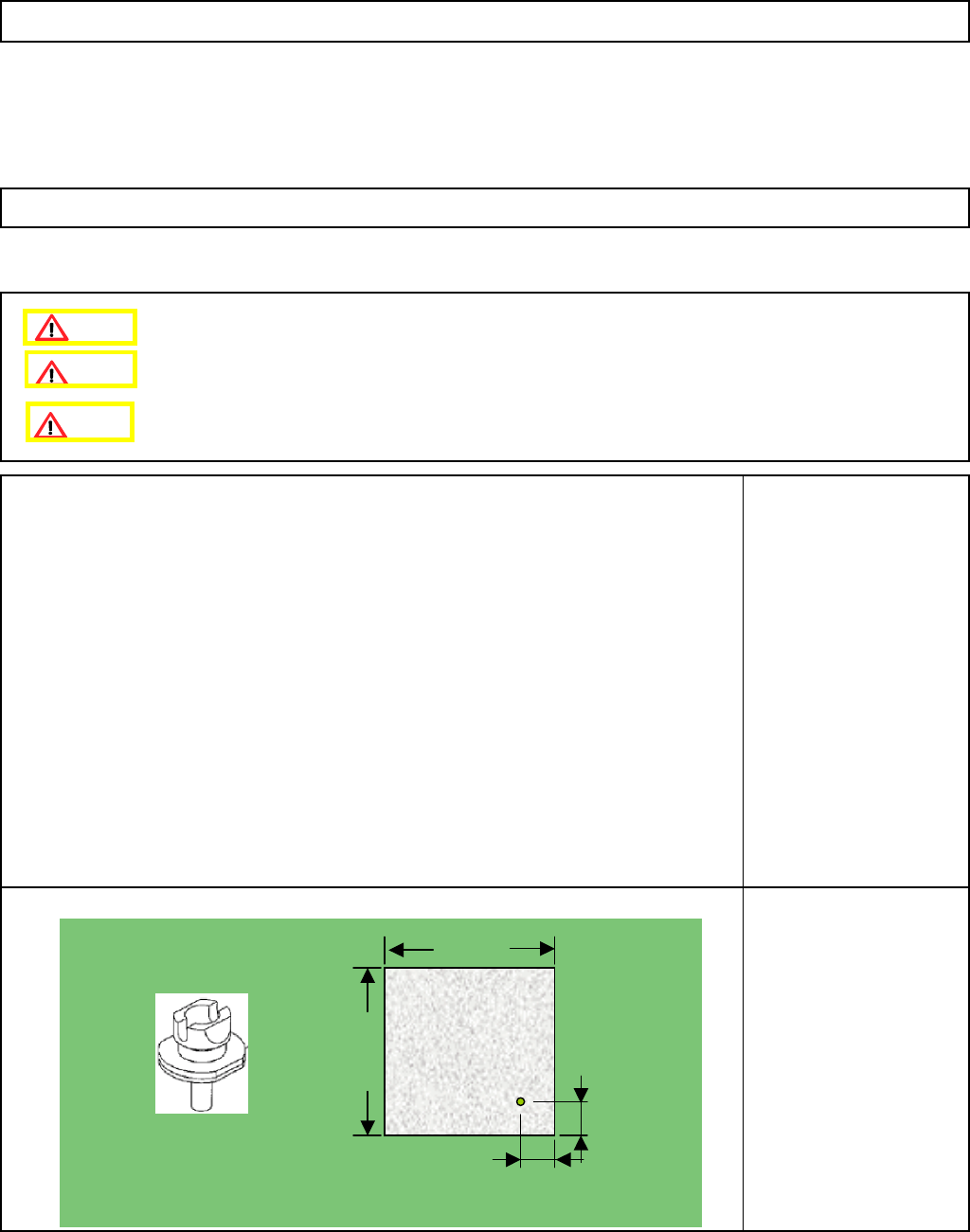

5-11-6 Determining the Mounting Height and Positioning the Board
12-Nozzle Head Teaching
Remove the support pins beforehand.
10+/-0.05mm
10+/-0.05mm
50mm
50mm
t= 3.0mm
Caution
Dange
r
Warning
EJM8A-E-SMA051106-A01-00
Page 5-11-6-1
