Press AR (BR) button so that: AF(BF) is selected. AR(BR) is NOT selected. Press AF(BF) button so that AF(BF) is NOT selected. AR(BR) is selected. Cpk target 602 p recision data: C pk ＝ 1.800 or more (If average is 0.005 …

100%1 / 1093
ﾍｯﾄﾞﾊﾟｽ

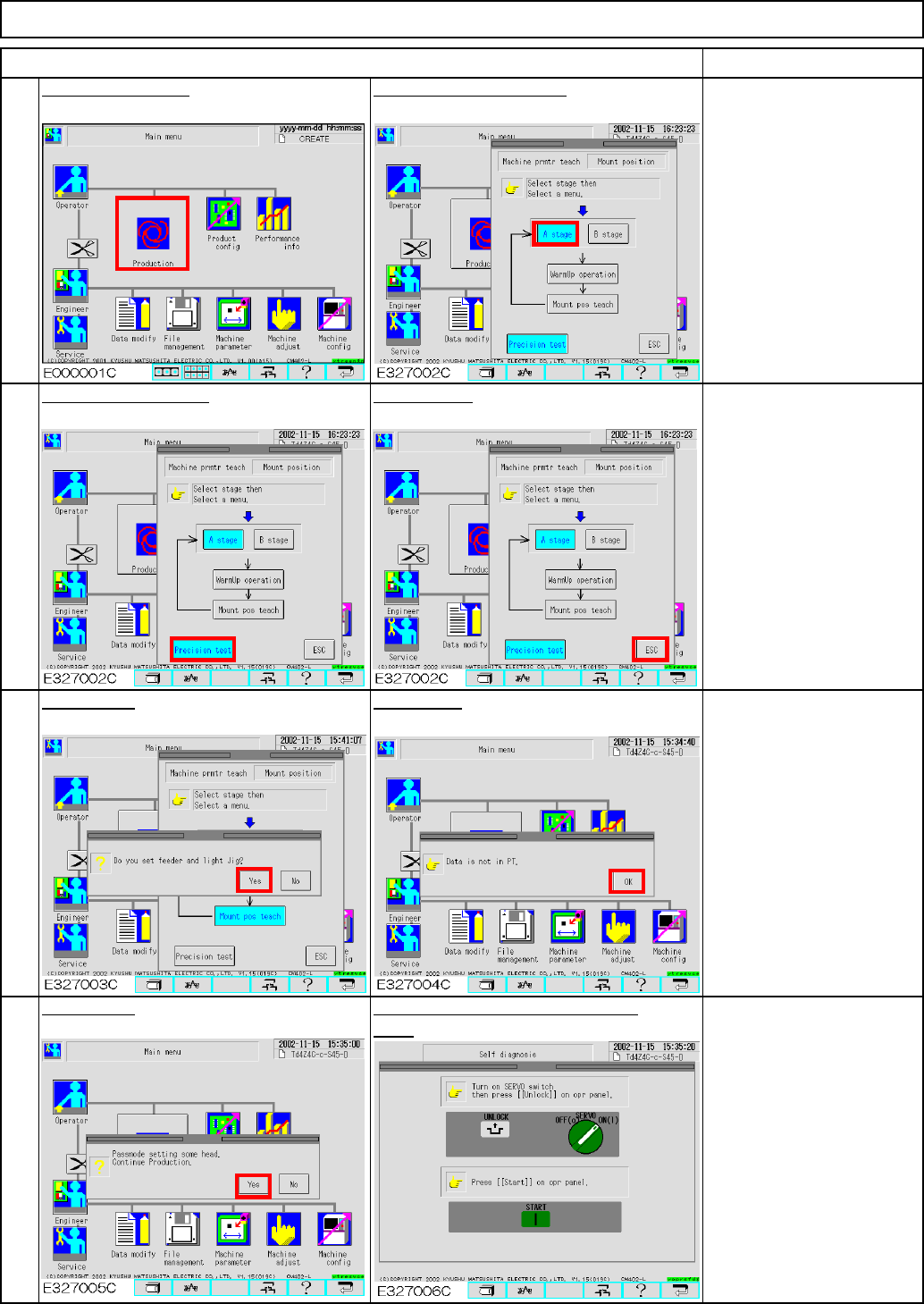

Light Transfer-Head Assembly (8 nozzles)
Press [Yes].
ITEM
26
Press [Precision test].
Press [ESC].
28
Press the "Unlock" and the "Start"
keys.
Press [Production].
Maintenance Adjustment
REMARKS
25
Select the desired stage.
27
Press [Yes].
Press [OK].
EJM8A-E-SMA040207-A01-00
Page　4-2-7-9
Press AR (BR) button so that:
AF(BF) is selected.
AR(BR) is NOT selected.
Press AF(BF) button so that
AF(BF) is NOT selected.
AR(BR) is selected.
Cpk target
602
p
recision data: C
pk
＝1.800 or more
(If average is 0.005 or more, it is necessary to correct.)
If accuracy is not achieved at each table separately,
see Step 39.
E327011C

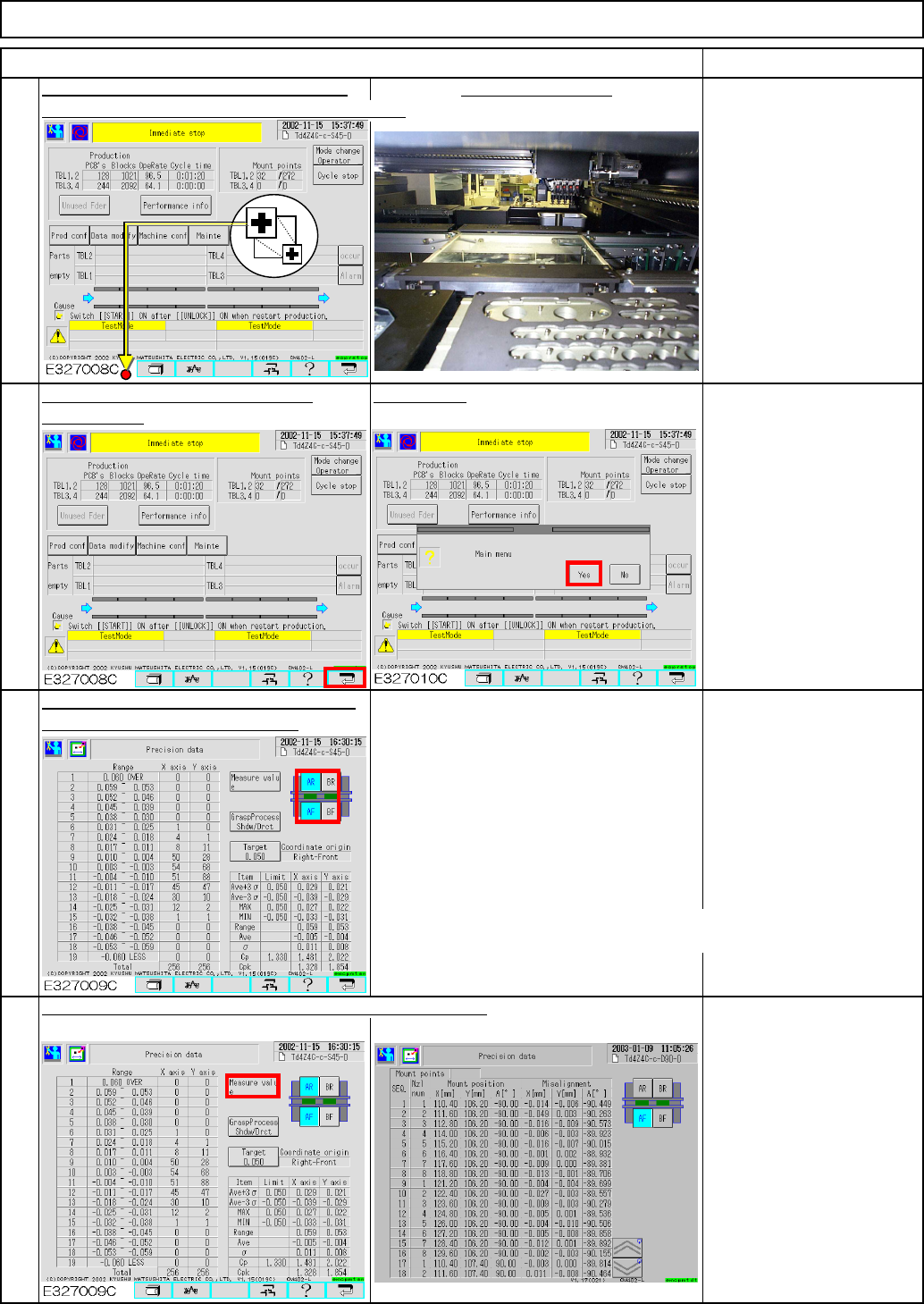

Maintenance Adjustment Light Transfer-Head Assembly (8 nozzles)
"Immediate stop" and display the recognition screen.
Place the board jig.
Check how much one component is shifted. (Check only)
30
31
ITEM REMARKS
29
After waiting for the previous process, select
After the machine stops, press the Press [Yes].
"Return" key.
Check the precision data accessed from
the "Machine parameter" screen.
32
EJM8A-E-SMA040207-A01-00
Page　4-2-7-10
Component type:
0603R with sharp corners
Td4Z4C-a-SHA :Type A High-speed head shadow teaching
Td4Z4C-a-DIR :Type A High-speed head direct teaching
Td4Z4C-b-45D :Type B Multi-purpose head 45°teaching
Td4Z4C-b-90D :Type B Multi-purpose head 90°teaching
Td4Z4C-c-S45 :Type C High-speed shadow teaching, Multi-purpose head 45°teaching
Td4Z4C-c-D90 :Type C High-speed direct teaching, Multi-purpose head 90°teaching
* Type C: High-speed head at Stage A, Multi-purpose head at Stage B
Follow Steps 11 to 32.
Direct teaching:
If the range value exceeds 0.007, chip
shape may not be appropriate.
Request the Maker to check.
KOA is recommended
Maintenance Adjustment Light Transfer-Head Assembly (8 nozzles)
Place Component 0603 onto the 2-mm pitch tape feeders.
ITEM REMARKS
Place one feeder onto Position 5 of each side: Front and Rear.
Fit Nozzles 205A onto both stages: Front and Rear.
33
Component 0603R, 2 reels
34
Load data.
35
Data type
36
Nozzle 205A x 16 pcs.
OK
NG
0603R
EJM8A-E-SMA040207-A01-00
Page　4-2-7-11
