Tool Jig 5-11-11 Mounting Position This section describes the procedures for teaching the mounting position. * When the machine is warmed up for some reason such as a test run, cool down the machine by powering down the …
Machinery Part Replacement
Remarks
12-Nozzle Head Teaching
Item

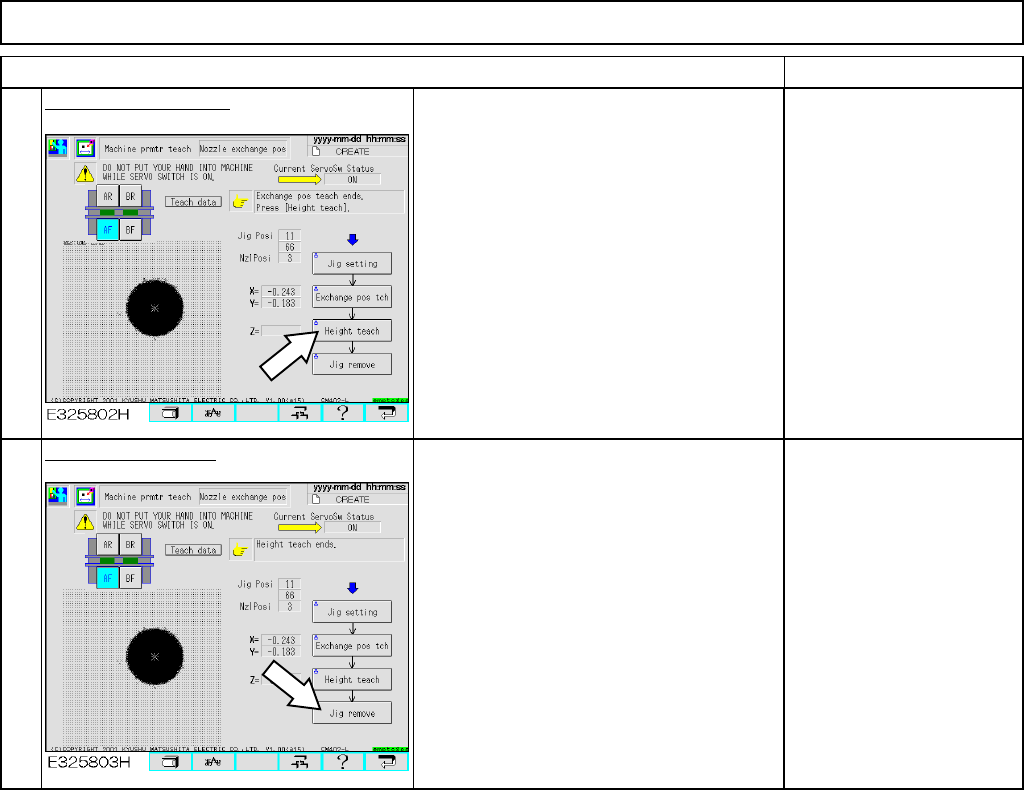

Press [Height teach].
• The nozzle 130S moves down and
measures the height of the upper surface
of the nozzle changer.
Press [Jig remove].
Remove the jig from the nozzle changer,
and the nozzle from the nozzle holder.
5
6
EJM8A-E-SMA051110-A01-00
Page 5-11-10-3
Tool
Jig
5-11-11
Mounting Position
This section describes the procedures for teaching the mounting position.
* When the machine is warmed up for some reason such as a test run, cool down the
machine by powering down the machine and opening the four upper covers before
teaching.
* When teaching the machine that has been left powered down for some time, carry out
a one-cycle test run using the "Mount position teaching - Warmup operation."
Mounting position
correcting data
Light Box
Glass board
(240x215 TH: 2.4)
Component 1005R 2 pcs.
Component 0603R 2pcs.
Nozzle 110S 48 pcs.
Nozzle 205S 48 pcs.
Double-sided tape
Machinery Part Replacement 12-Nozzle Head Teaching
Phillips screwdriver #2
Dange
r
Warning
Caution
EJM8A-E-SMA051111-A01-00
Page 5-11-11-1
should be positioned on the reference side.
Prepare the stage to teach as shown below.
• Turn on the power switch of the light box. (Do not connect the plug yet.)
• The narrow side between the end and the lighting portion of the box
RemarksItem
1
Load the data.
Direct recognition: [TdEJM4A-a2-DIR0]
Adjust the width of the conveyors.
Shadow recognition: [TdEJM4A-a2-SHA0]
Put the pins on the pin plate. Put the light box in the machine.
Select the teaching data and press [Load].
* To avoid pin interference, check there are no pins on the plate beforehand.
2
3
4
Machinery Part Replacement 12-Nozzle Head Teaching
Light box
Press [File management].
Press [Floppy disk].
Press [Machine adjust]. Press [Cnvr adjustment]. Press [Prd data PCB w].
Press [Run].
Plug
Support
block
(
Left
)
Support
block (Right)
Light box
Ref.
id
Stopper side
Narrow side
Pin position
Truss screw
