Maintenance Adjustment Light Transfer-Head Assembly(3-nozzles)
Remarks

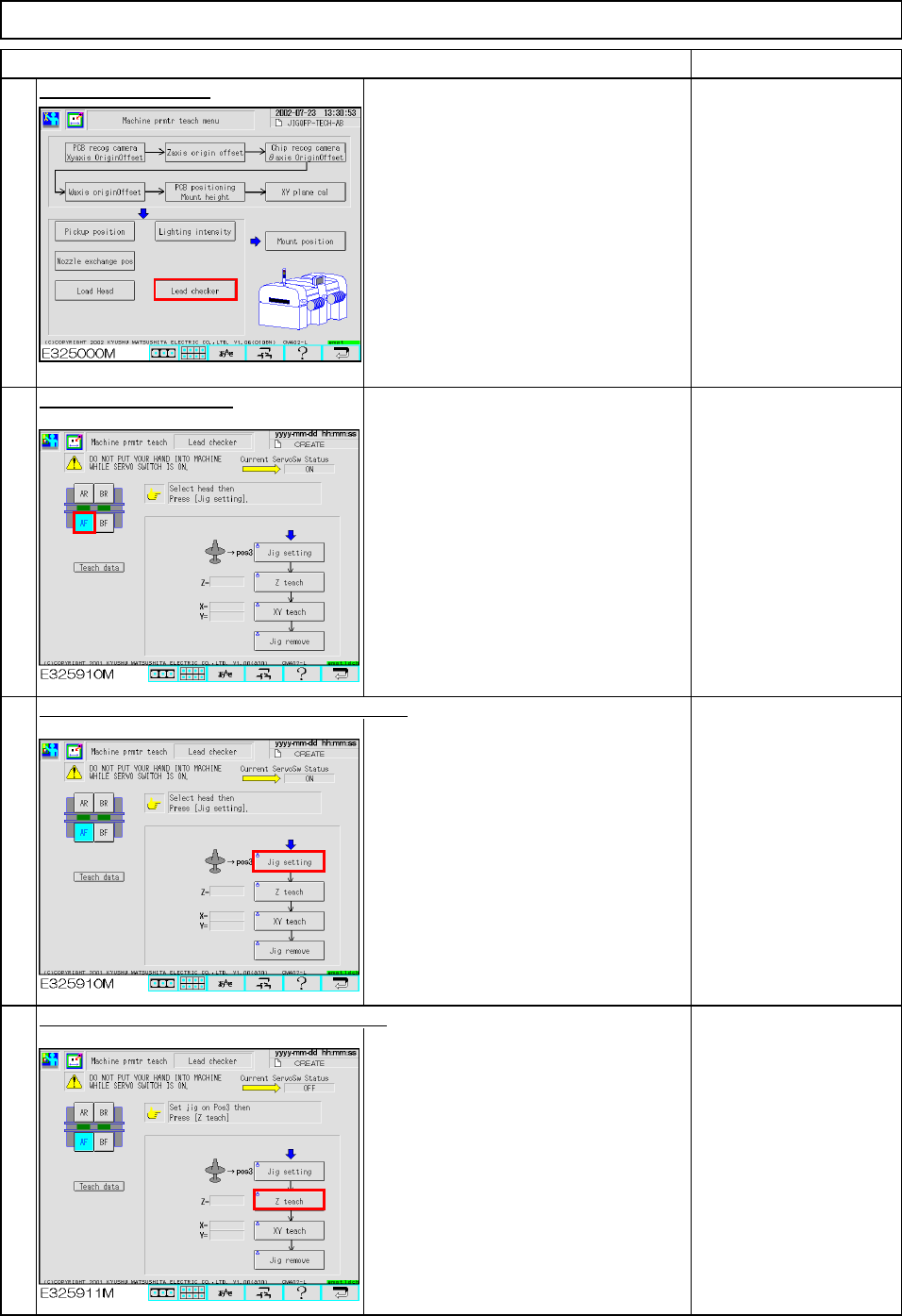

Press [Lead checker].
Select the desired stage.
Press [Unlock] and [Jig setting] simultaneously.
Set the jig onto Head 3.
Press [Unlock] and [Z teach] simultaneously.
Head 3 moves to the lead checker and Z
(between the lead checker and the jig) is
measured automatically.
4
1
Item
2
3
EJM8A-E-SMA040311-A01-00
Page 4-3-11-2
Maintenance Adjustment Light Transfer-Head Assembly(3-nozzles)
Remarks
Item

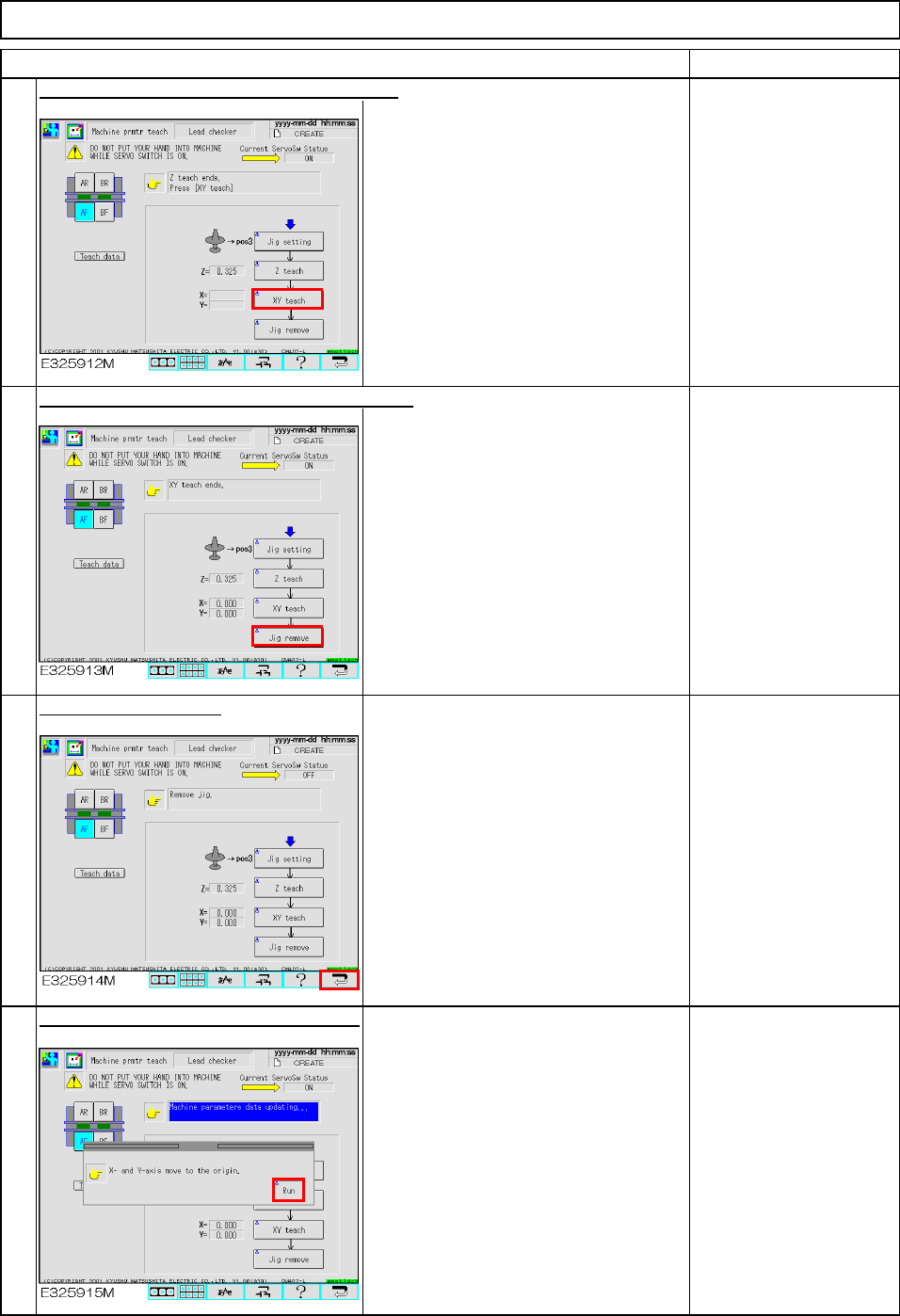

Press [Unlock] and [XY teach] simultaneously.
Starting from the point at which the Z
teaching is finished, X and Y are
measured automatically.
Press [Unlock] and [Jig remove] simultaneously.
Remove the jig from
Head 3.
Press the "Return" key.
Press [Unlock] and [Run] simultaneously.
The selected head returns to the origin.
5
6
7
8
EJM8A-E-SMA040311-A01-00
Page 4-3-11-3
Maintenance Adjustment Light Transfer-Head Assembly(3-nozzles)
Remarks
Item
Offsets are entered into the screen below:
Offset range:
X: -1.0 mm to 1.0 mm
Y: -1.0 mm to 1.0 mm
Z: -1.0 mm to 1.0 mm
9
EJM8A-E-SMA040311-A01-00
Page 4-3-11-4
