Light Transfer-Head Assembly(3 nozzles)Maintenance Adjustment
23
Select the desired stage.
Press [Production]
24
(Accuracy Verification)
Remove the QFP jigs,
rotating them to avoid
breaking the QFP jigs.
After removing QFP jigs,
clean the double-sided
tape (Solvent can be
used.).
22
"Return" key.
After teaching is finished:
If cycle stop is carried out:
teaching is complete.
In case of immediate stop,
a head camera recognition
error has occurred and the
machine stopped; it is
necessary to teach again.
In case of half-way stop,
press "Unlock" and "Start"
to finish teaching, and re-
teach.
Remove the board.
Remove the chip jigs from the board.
Press [Yes].
Place the board jig. Once the machine stops, press the
ITEM REMARKS
21

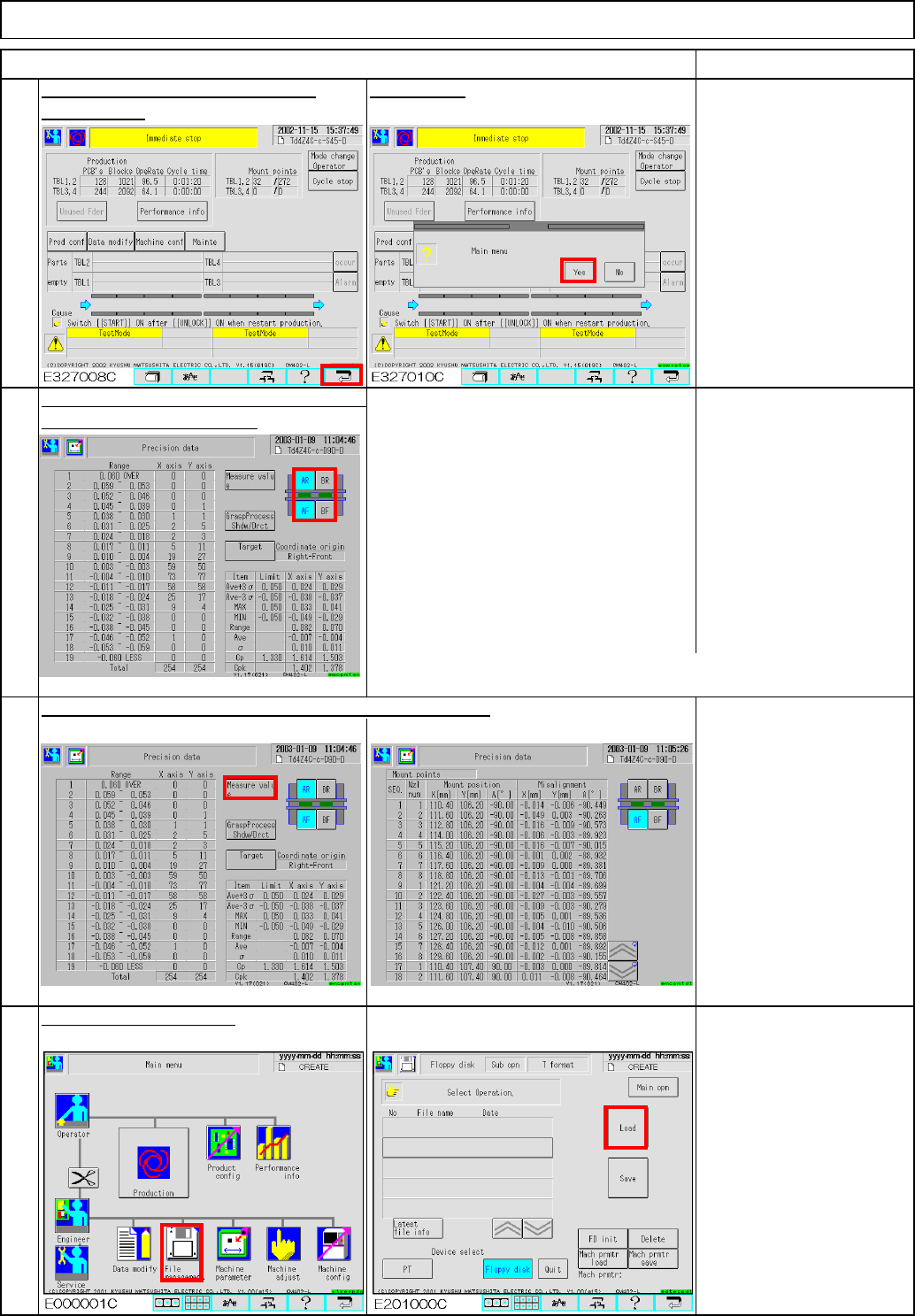

"Immediate stop" and display the recognition screen
After waiting for the previous process, select
EJM8A-E-SMA040307-A01-00
Page 4-3-7-8
ﾍｯﾄﾞﾊﾟｽ
Press the "Unlock" and the "Start"
Light Transfer-Head Assembly(3 nozzles)Maintenance Adjustment
Place the board jig.
27
Press [Yes].
25
keys simultaneously.
ITEM REMARKS
Press [ESC].
Press [Precision test].
26
Press [Yes].
Press [OK].
28
"Immediate stop" and display the recognition screen
After waiting for the previous process, select
EJM8A-E-SMA040307-A01-00
Page 4-3-7-9
Press AR (BR) button so that:
AF(BF) is selected.
AR(BR) is NOT selected.
Press AF(BF) button so that
AF(BF) is NOT selected.
E327014C AR(BR) is selected.
To display the average of front and rear,
select both front and rear.
Cpk target
602 precision data: Cpk＝1.800 or more
(If average is 0.005 or more, it is necessary to correct.)
If accuracy is not achieved for each tray separately, see Step 37.
E327013C
E327014C
Check how much one component is shifted. (Check only)
Light Transfer-Head Assembly(3 nozzles)
Check the accuracy verifying data placed
30
31
in the machine parameters.
Maintenance Adjustment
29
After the machine stops, press the
Press [Yes].
ITEM REMARKS
"Return" key.
32
Load data. (90°teaching)
EJM8A-E-SMA040307-A01-00
