Remark Turn off the power and air supply. Remove the feeder cover. Allen key 3 mm Screw M4 4 pcs. Remove the amplifier connector. Allen key M6 Screw M6 x 60L 2 pcs. Component-Thickness-Measuring Unit 4 Item 1 Option Part…
• Tools
Phillips screwdriver #2
Allen key Long/Short
Wrench 10 mm
Wrench 12 mm
Nipper
• Jigs
FM-1962(1)
(1. Component-height-
detection-sensor-
adjusting power box)
FM-1962(2)
(2. Component-thickness-
measuring-unit-light-axis-
adjusting jig)
• Necessities
Bushing
KXFB029SA00 (4 pcs.)
Block gauge (10 mm)
Component-Thickness-Measuring Unit
6-4-5 Component-Thickness-Sensor Replacement (8-Nozzle-Head Specifications)
Option Part and Accessory Replacement
This section describes the procedures for replacing the component-thickness sensor (8-nozzle-head spec.).
Bushing Block gauge
Danger
Warning
Caution
FM-1962(1) Component-thickness-measuring-unit-light-axis-
adjusting jig
(1. Component-height-detection-sensor-adjusting power box )
FM-1962(2) Component-thickness-measuring-unit-light-axis-
adjusting jig
(2. Component-thickness-measuring-unit-light-axis-adjusting
j
i
g)
EJM8A-E-SMA060405-A01-00 Page 6-4-5-1
Remark
Turn off the power and air supply.
Remove the feeder cover.
Allen key 3 mm
Screw M4 4 pcs.
Remove the amplifier connector.
Allen key M6
Screw M6 x 60L 2 pcs.
Component-Thickness-Measuring Unit
4
Item
1
Option Part and Accessory Replacement
Remove the component-thickness-sensor unit.
2
3
1
2
Remove the amplifier connector.
Loosen the two M6 x 60L bolts. Remove the unit.
EJM8A-E-SMA060405-A01-00
Page 6-4-5-2
Remark
Component-Thickness-Measuring Unit
Item
Option Part and Accessory Replacement
Phillips screwdriver #2
Cut off the cable ties.
Nipper
Open the amplifier cover.
Open the connector lock.
7
6
8
5

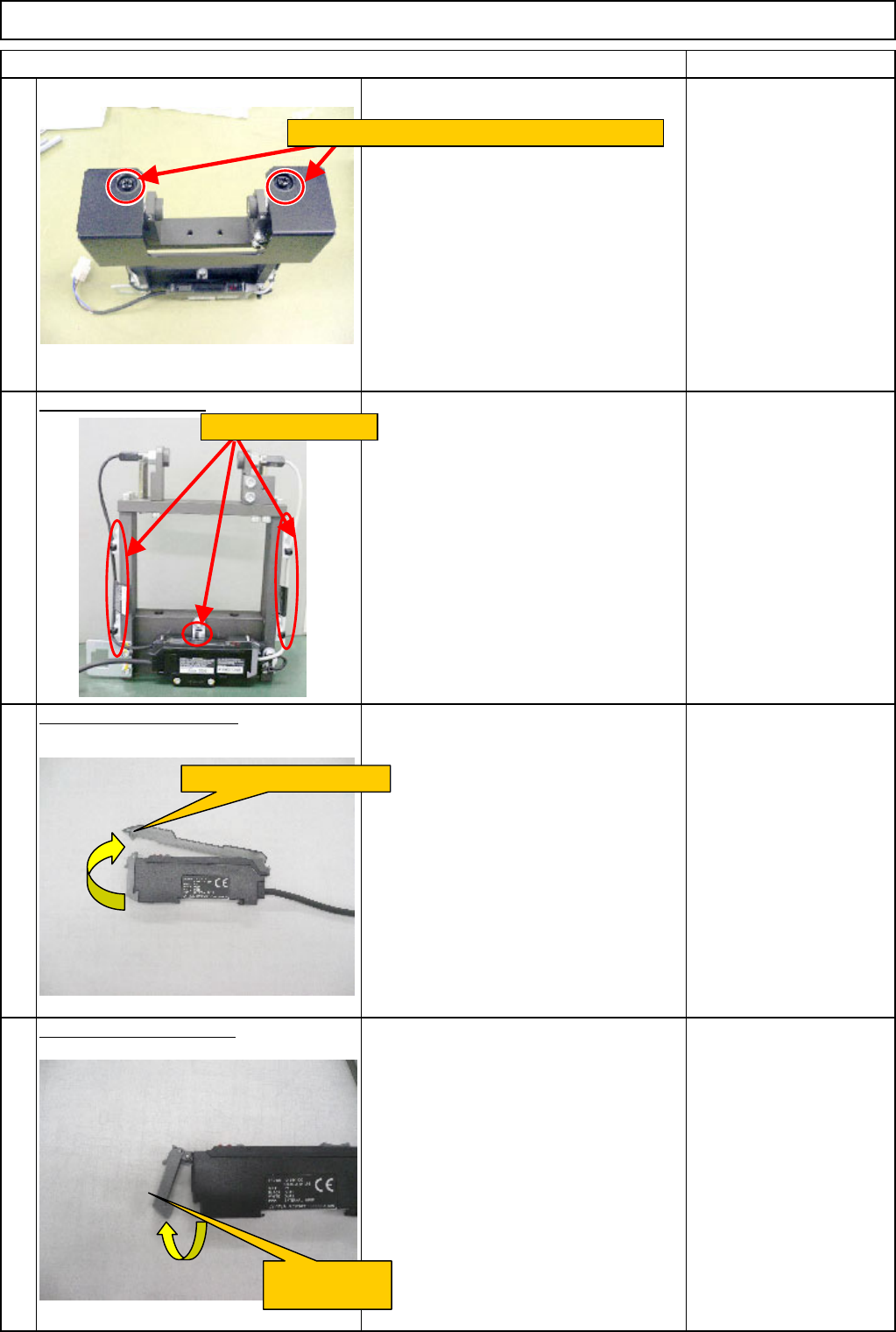

Loosen the two M4 screws. Remove the cover.
Open the amplifier cover.
Open the
connector lock.
Cut off the cable ties.
EJM8A-E-SMA060405-A01-00
Page 6-4-5-3
