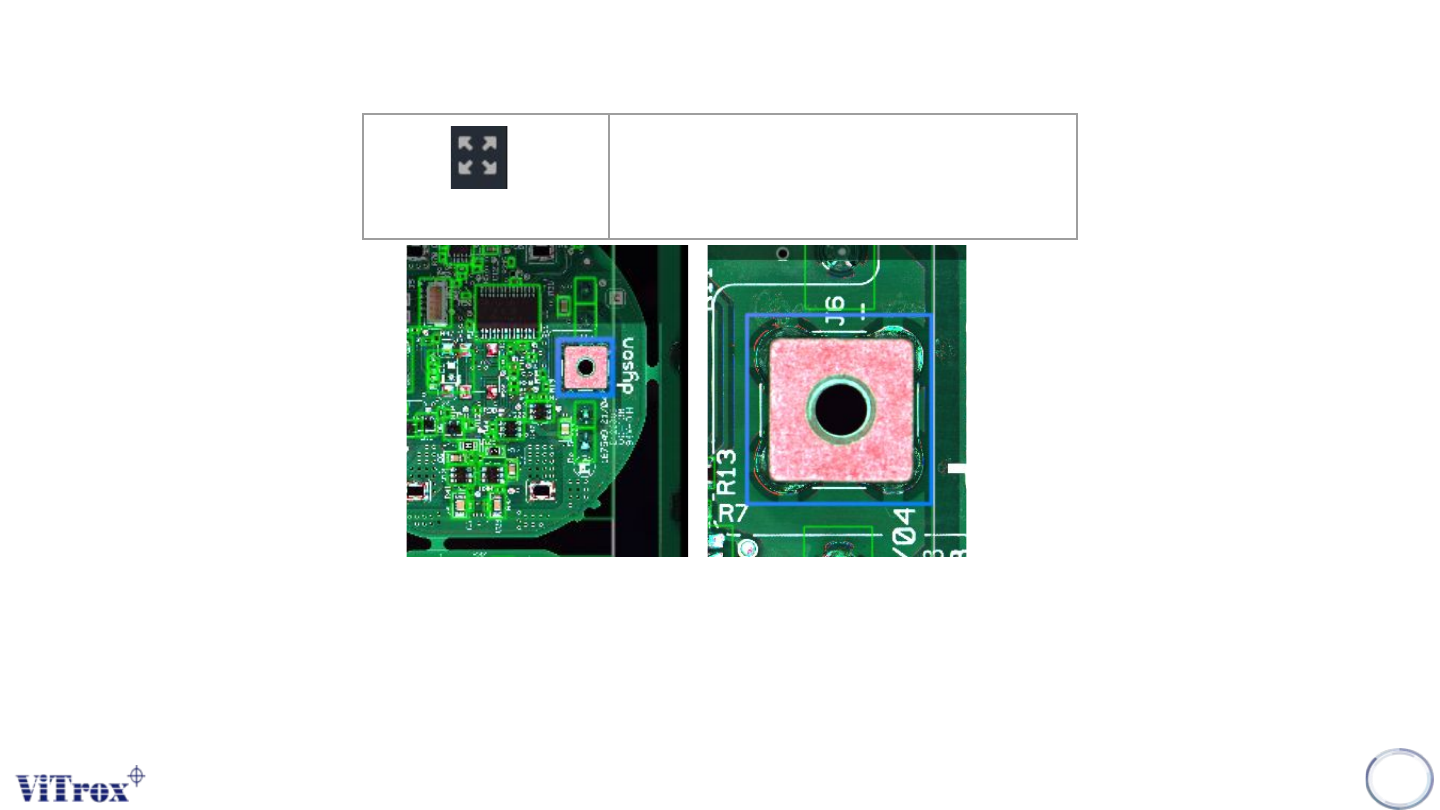

Zoom 1 to 1

When click at the Zoom 1 to 1 button in the tool box, the camera view moves to the selected component (Blue bracket) and this

component stays in center of camera view.

Note: If there is no component selected, no action will be performed. Zoom 1 to 1 performed in component camera view and full

board view shows different sizes.

Zoom 1 to 1

Zoom at component in centroid of

camera view

Figure 85: Before and after click Zoom 1 to 1

Add Component

Add Component is used to add single or multiple components in camera view. This feature is helpful for customized inspection

including gold pad inspection, THT inspection, gap detector inspection, foreign material inspection, or components that are not

in cad file.

Note: User can add single or multiple component by using this feature

100

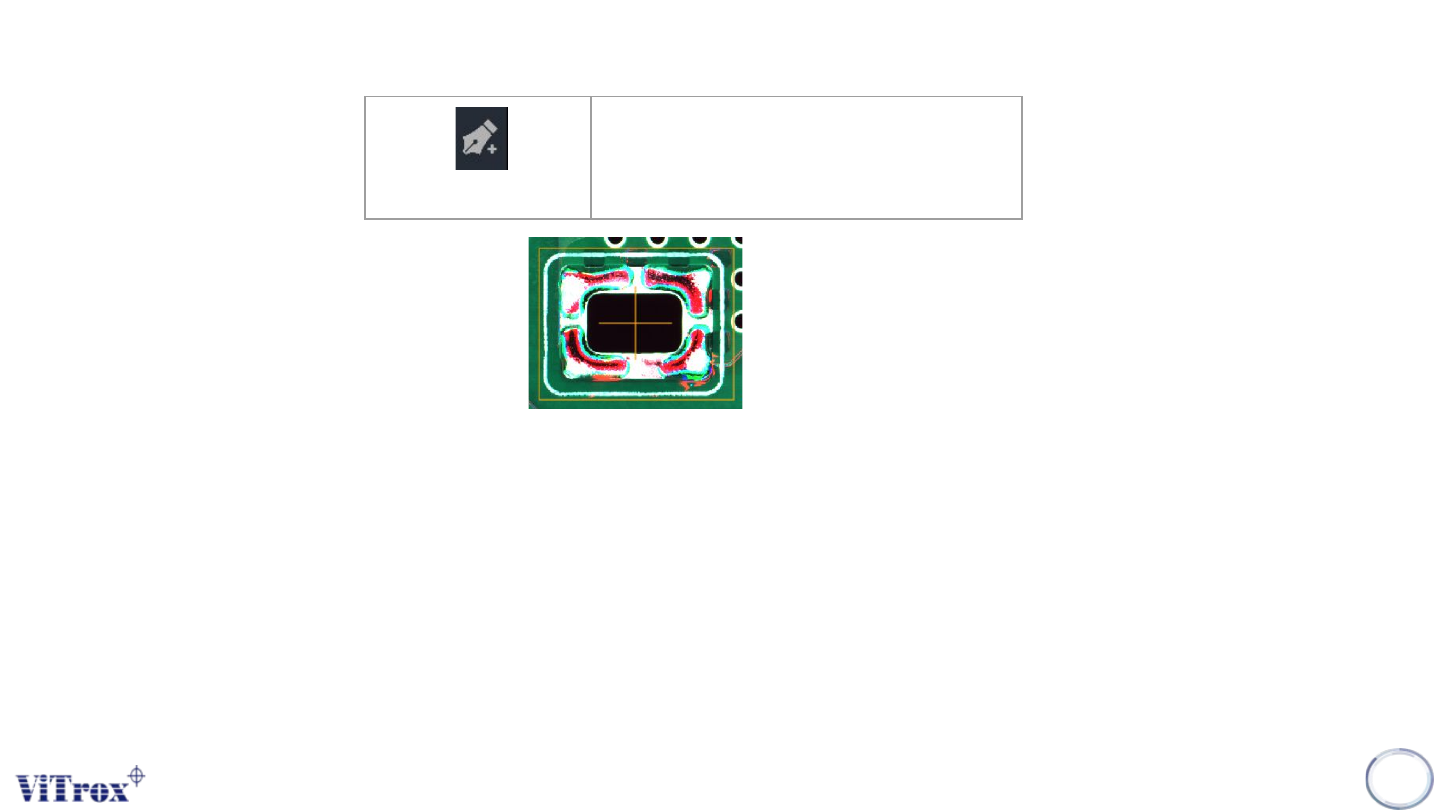

Add Component

Add component by drag and draw

Figure 86: Draw and Drag for add component

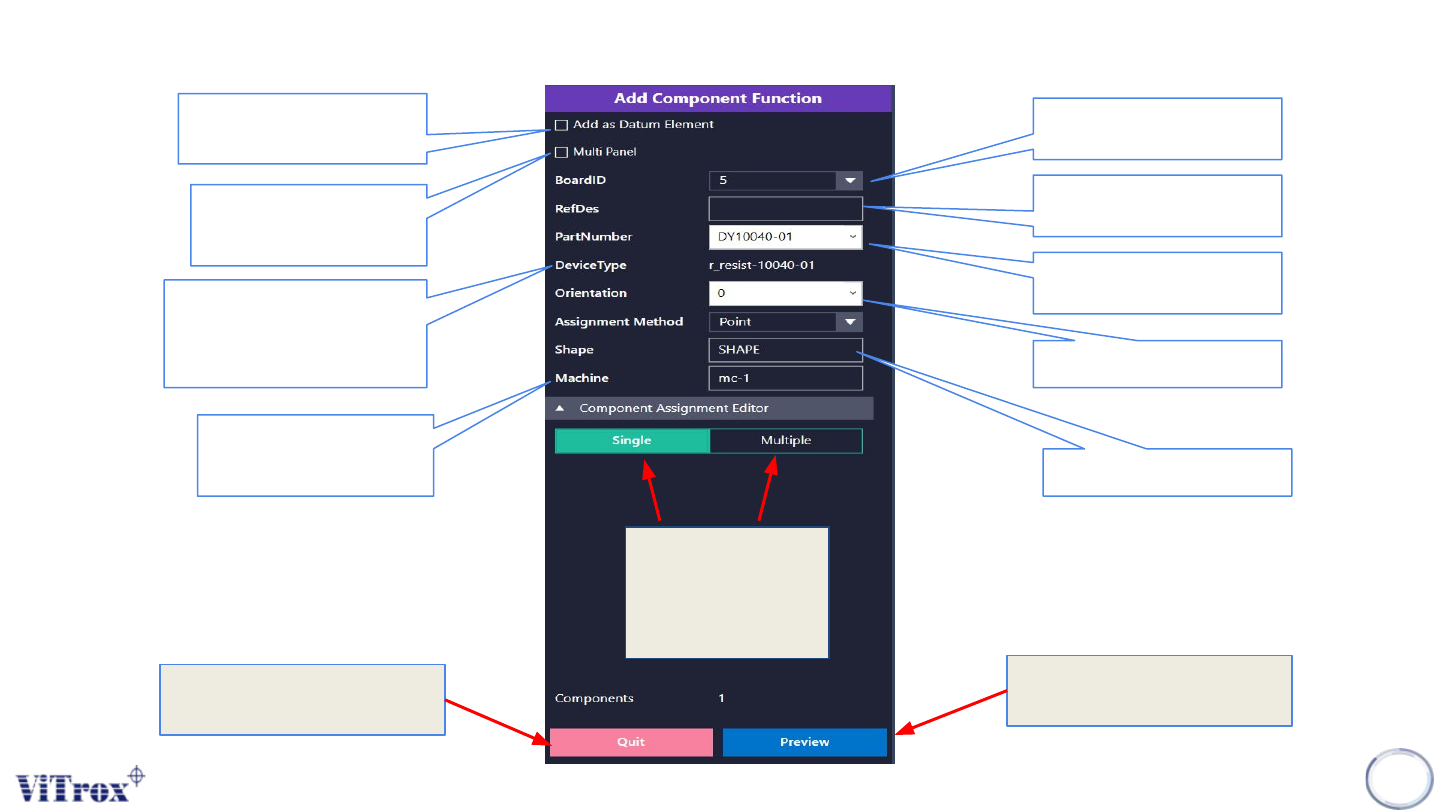

Add component description

101

Figure 87: Add component functionality

This is used to show the

current board number in a

panel board.

This is used to provide

refdes name of the

component

To find the consistent

region to calculate the

warpage compensation.

This is used to add a

component into multiple

boards.

This is used to link the ref

des into the existing part

number.

This is used to show the

device type of the existing

part number only. For a

newly created part number, it

shows n0000

This is used to set the

component rotation.

This is used to set the

shape of component

This is used to set the

machine type. The

recommended setting is

mc-1.

This is used to add a

single component or

multiple components

at the same time. The

default setting is

single.

Preview the components

detail before done add

component

Quit the add component

configuration
