Copyright © ViT rox All Rights Reserved . Main Menu This is the main menu button of the SmartG. There are several type of parameters: • Cad V isualizer • Cad Converter • Multi Board Panelizer 7 Main Menu Figure 3: Main M…
Copyright © ViTrox All Rights Reserved.
Engineer Main button
6
Copyright © ViTrox All Rights Reserved.
Main Menu

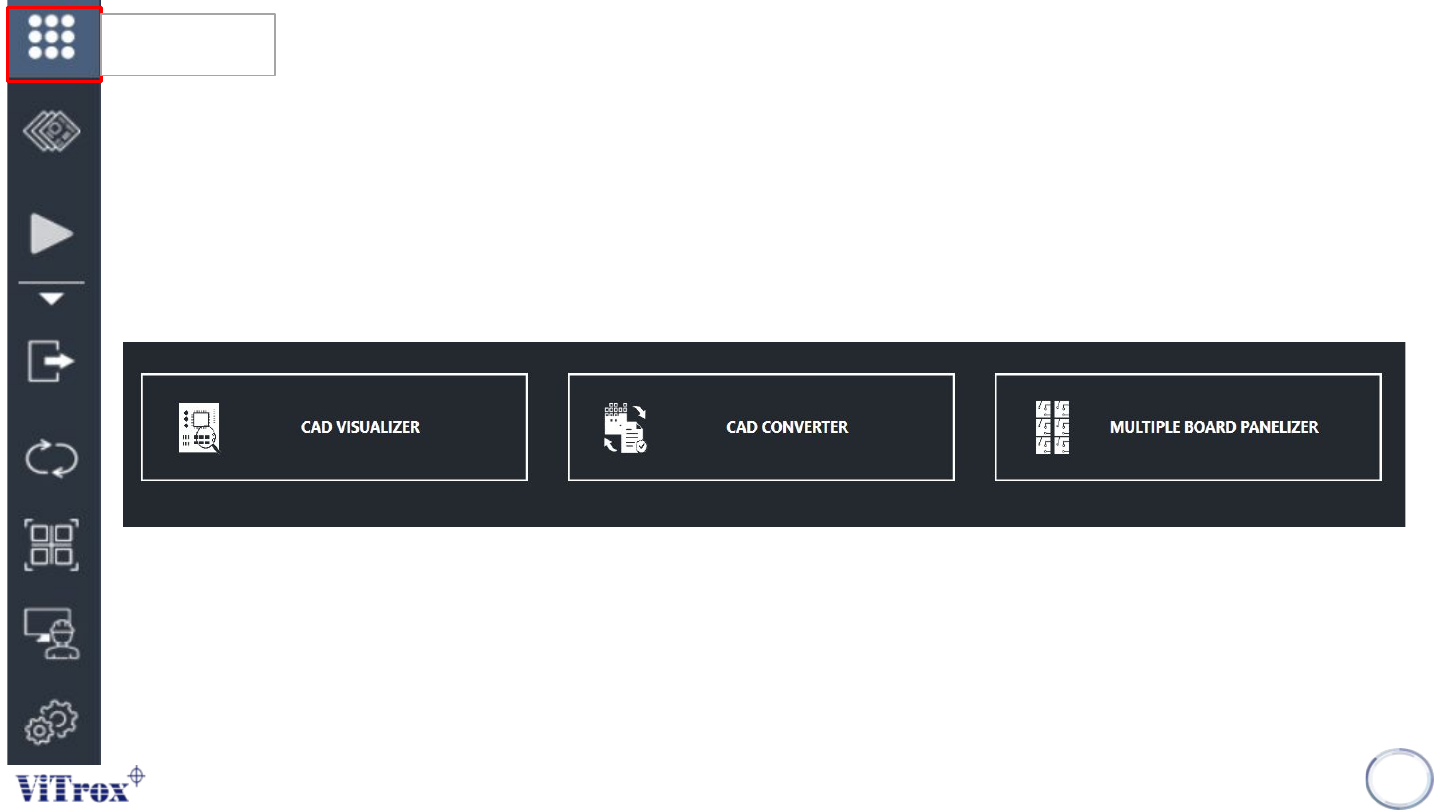

This is the main menu button of the SmartG. There are several type of parameters:
• Cad Visualizer
• Cad Converter
• Multi Board Panelizer
7
Main Menu
Figure 3: Main Menu Interface Parameter
Copyright © ViTrox All Rights Reserved.
Boards
There are three features in the board list which are:
● Search tab: This is used to search board names with characters and symbols in the board list.
● Refresh Programs: This is used to refresh the board list when a new board is created or a new cad file is being
replaced in c:\cpi\cad folder.
● View Program Details: This is used to View Program details button is to set all specific measurement/information
about the board program including board side, panel width, panel length, board clearance, board thickness and board
weight.
8
Refresh
View Program details
Figure 4: Boards List Show
Boards Show the board list and allow
user to change the program
