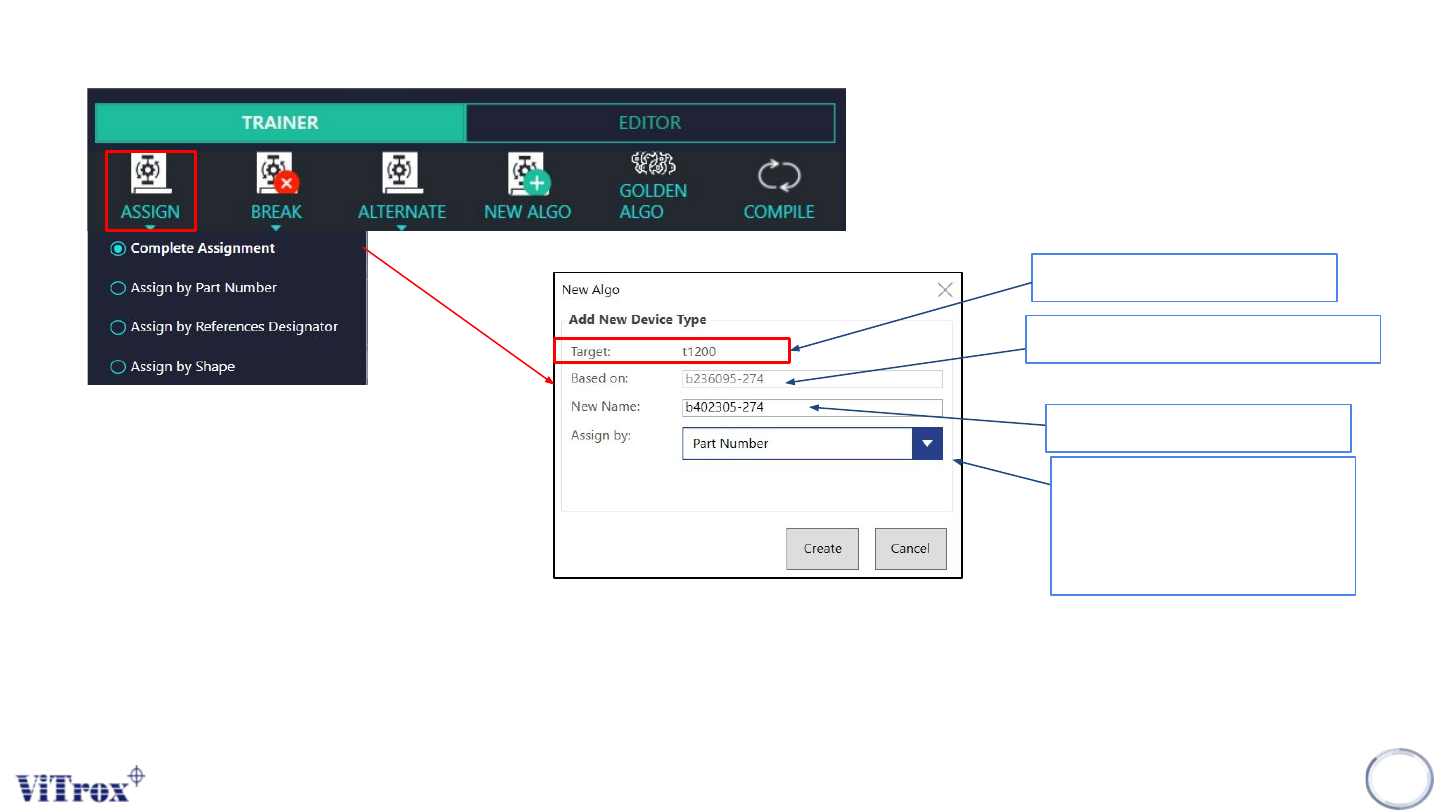

Assign Main Device Type

There are 4 options to assign the the component, it can be complete assignment, it can be directly assign by part number, it can

be assign by reference designator and it can be assign by shape.

Note: It depends on the user to train the device type.

154

Ref. Des.

Name of copy from other device

Name of New device

Assign by any:

1) Part number

2) Shape

3) Ref Des

Figure 138: Assign Main Device Type

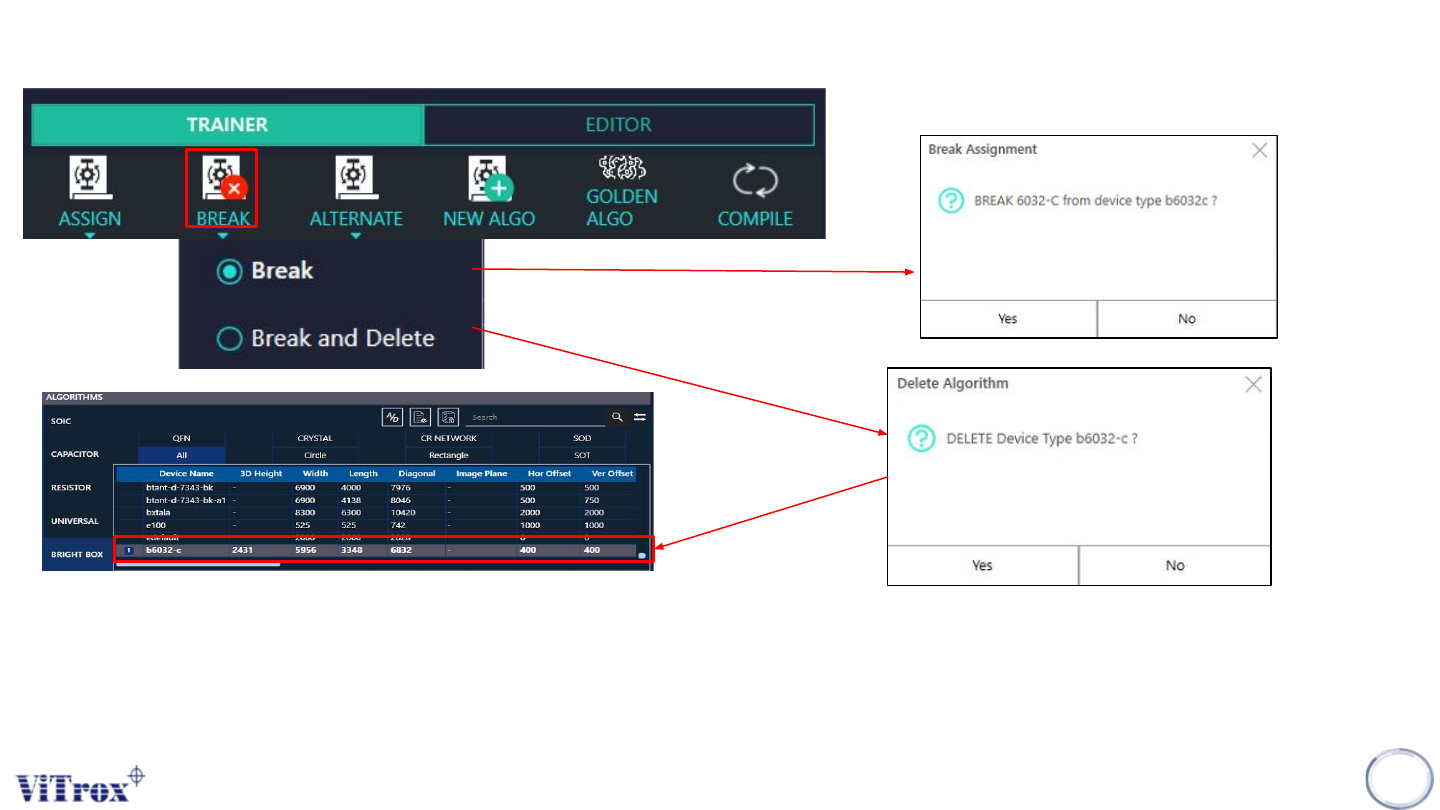

Break Main Device Type Assignment

• There are 2 options to break the trained component, it can be Break, it can be Break and Delete.

• The Break means selected trained component will be switch to Untrain the selected device type without delete

the device name in list of algorithms

• For the Break and Delete means selected trained component will be delete the current device type and, it will

totally be delete in list of algorithms.

155

Figure 139: Break Main device type

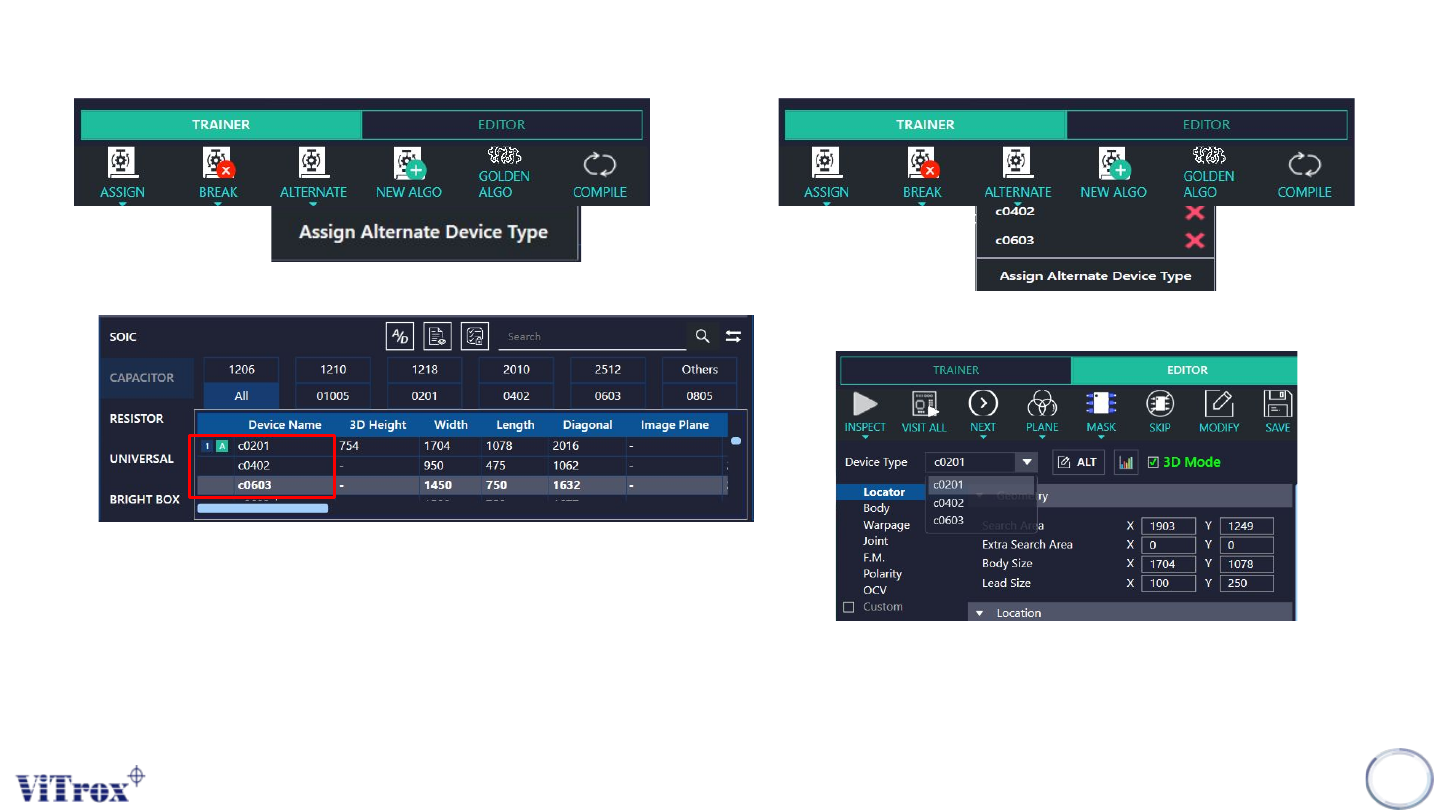

Assign Alternate Device Type

Note: Alternate device type is to alternate more than one device type in one components. This software will be auto pick the best

algorithm to match with components

*Depend on the user whether want to set alternate or not.

156

Figure 140: Assign Alternate device type

Figure 143: In algorithm editor will shows three alternating device type

Figure 141: Example choose 3 different device type

Figure 142: Two others alternative device type
