Copyright © ViTrox All Rights Reserved.
Create New Database from Existing
After creating a new database from the existing, a confirmation message is prompted to confirm the
database assignment and golden database setting.
129

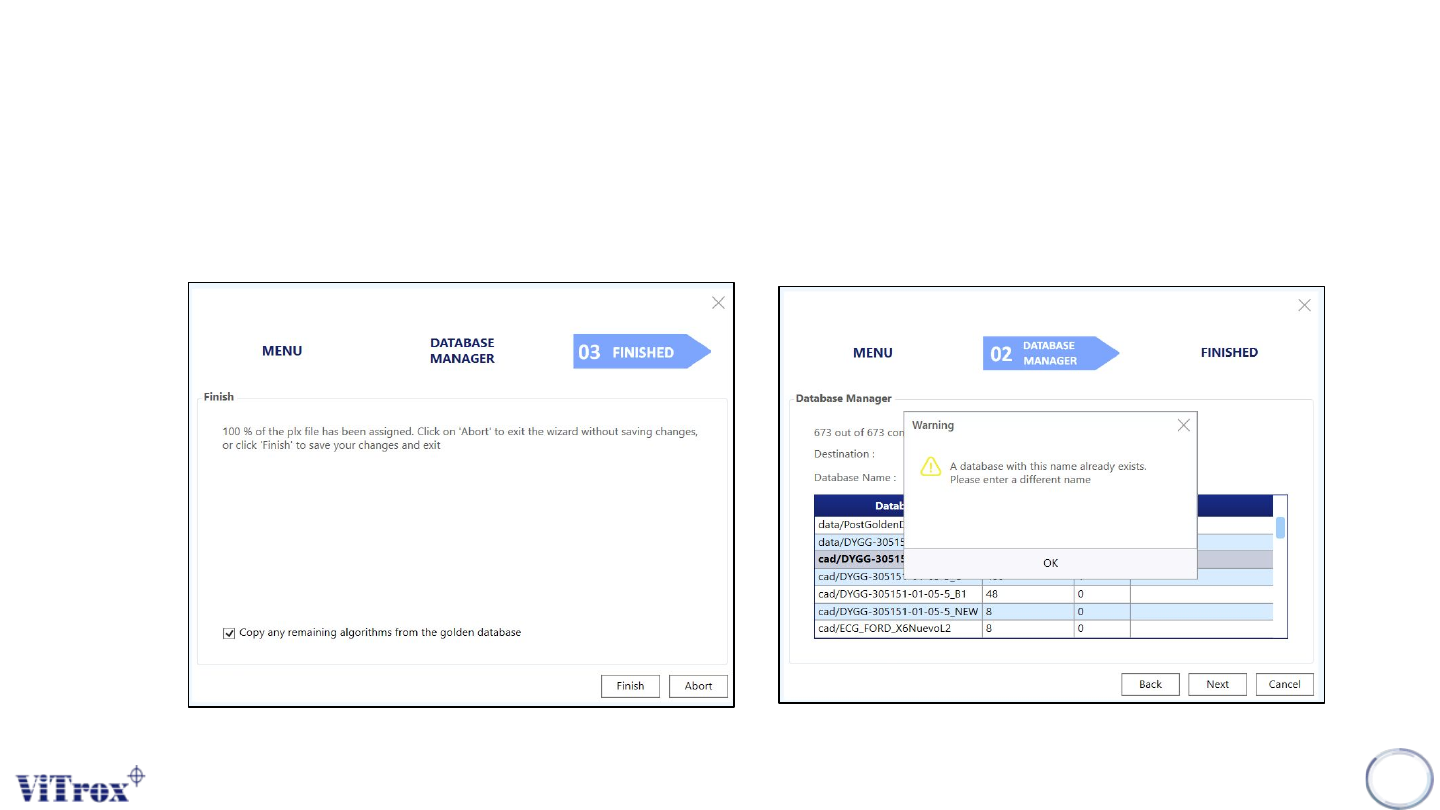

Figure 115: Confirmation Message
Figure 116: Warning message of duplicate database occur
Copyright © ViTrox All Rights Reserved.
Point to Existing Database
Point to Existing Database is used to point to a new database for current program. This may cause the situation where
multiple programs are linked to one database. This induces databases mix-up when running multiple programs. The
recommended setting is "Create new from existing".
The figure below shows the database manager setting after selecting "create new database from existing". The
information shows in database manager are:
● Total components that are unassigned.
● Database list that contains similar part number or shape in descending order
130
Figure 117: Point to Existing Database
Copyright © ViTrox All Rights Reserved.
Point to Existing Database
After pointing to the existing database, a confirmation message shows to verify the database
assignment and golden database setting.
131
Figure 118: Confirmation Message
