Machine Setting (Lighting Setting)
69
Figure 60: lighting Controller
Undo button
RGB lights
Average Value of
Lighting Intensity
Calibrate on exact
location
Auto Custom
Calibration
To move the gantry
Size of step
gantry
To see the log of
history lighting
calibration
C\CPI\Log
Note: Lighting calibration perform when the lens is refocused, the pixel size is changed and lighting intensity is changed.
Copyright © ViTrox All Rights Reserved.
Machine Setting (Lighting Calibration)
70
User can enable/disable to
set the duration of lighting
calibration
Shows the last date and time for
lighting calibration
Shows when next date and time for
lighting calibration
To set the specific date
and time to perform
lighting calibration.
To set the limit XY for
board and width of grey
card position
User can customize log file whether
path/foldername/starting log file

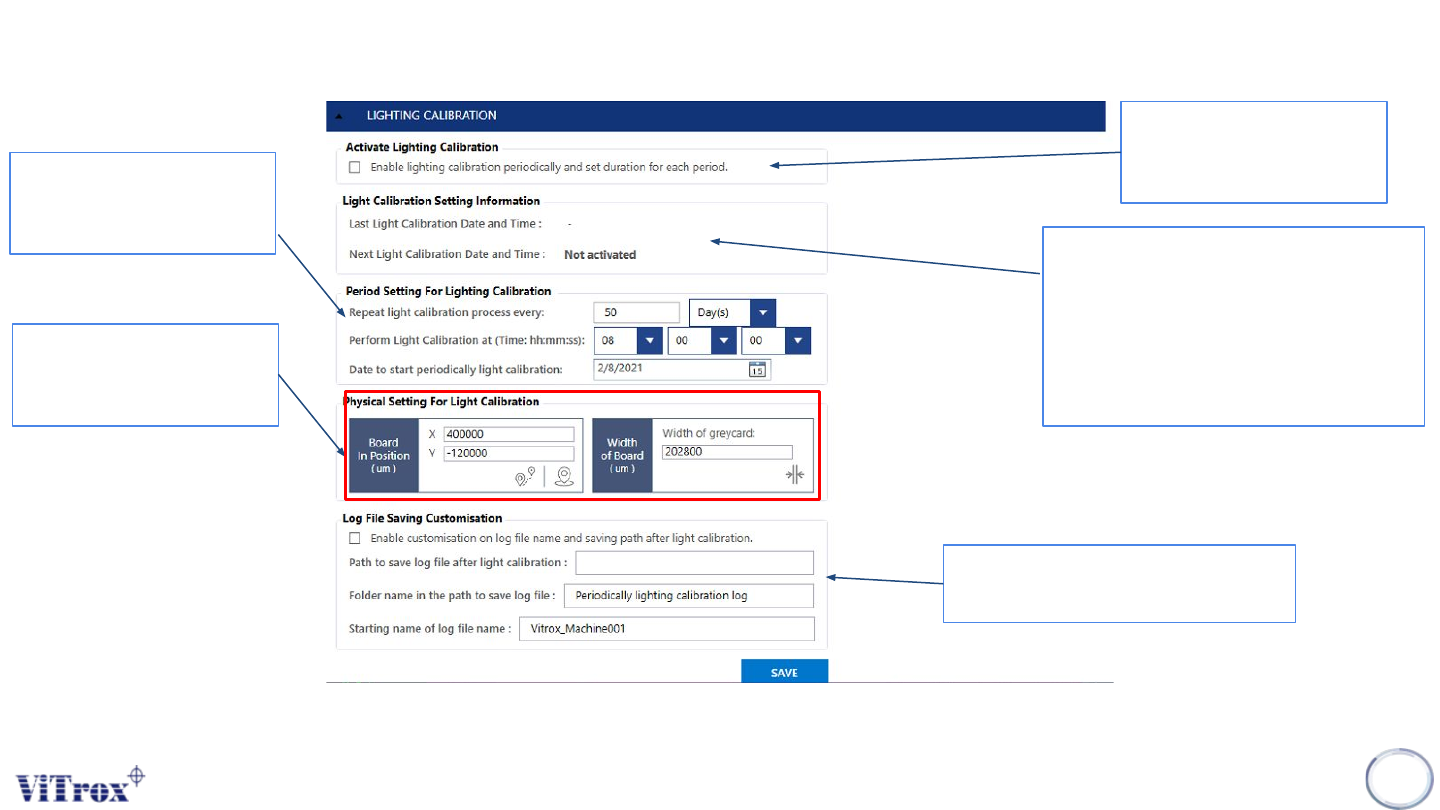

Figure 61: Lighting Calibration Configuration
Copyright © ViTrox All Rights Reserved.
Machine Setting (Machine I/O)
*Please refer to the next slide to see input/output of each description and function
71

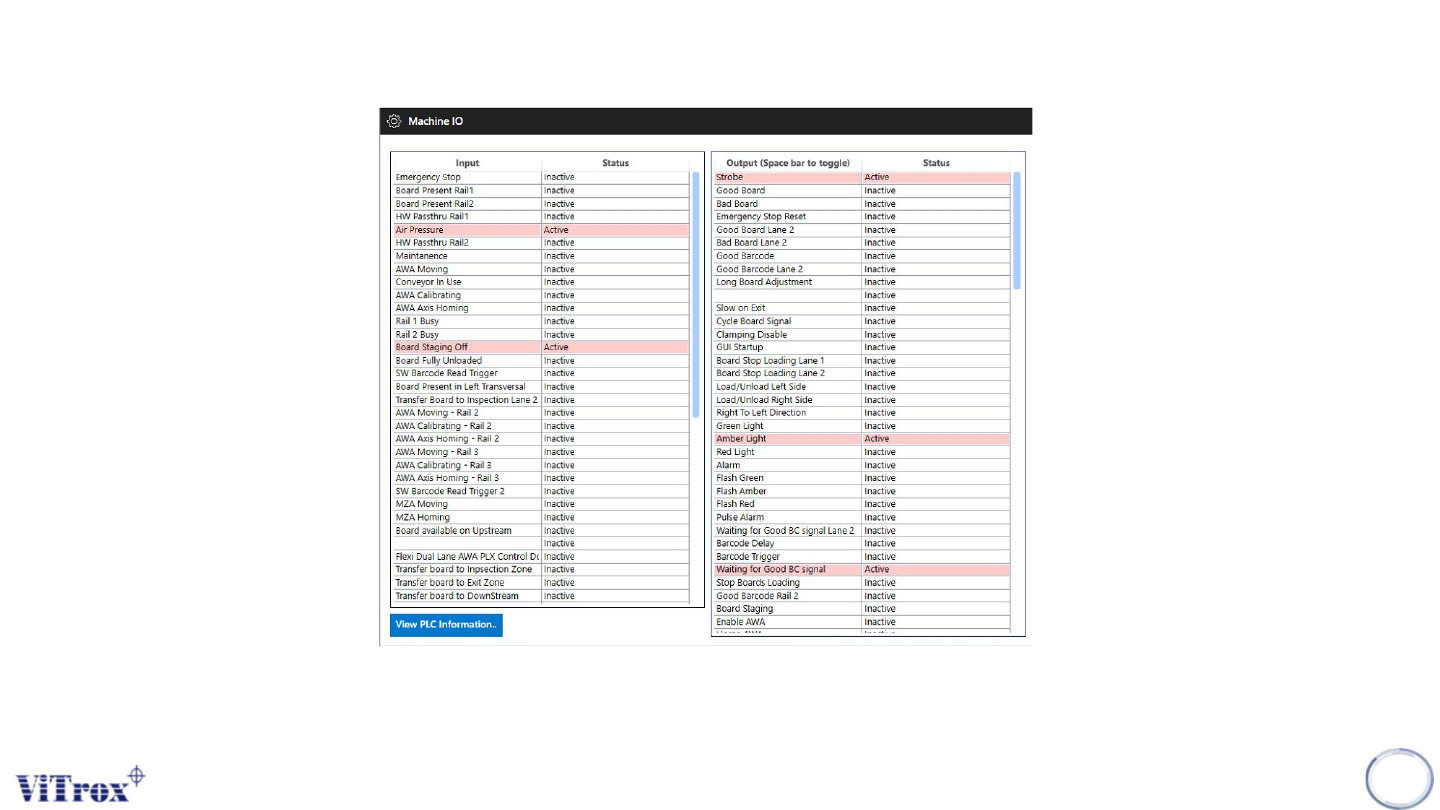

Figure 62: Content in Machine I/O
