Copyright © ViT rox All Rights Reserved . 75 Calibrate A W A Used by AW A T ools Menu Abort A W A Move Used by AW A T ools Menu Jog A W A In/Out 0.5mm/1mm/10mm Used by AW A T ools Menu Lighting Controller A W A Used when…

Green (Amber/Red) Light Turn on the named lamp in the lighting tower

Alarm Sound the alarm continuously

Flash Green (Amber / Red) Flash the named lamp in the lighting tower

Pulse Alarm Sound the alarm intermittently

Two Sided Inspection This enables Dual Files

Barcode Delay If enabled there is a 2.5 second delay between seeing board available from upstream

and sending the machine not busy signal. Used to pause the board for barcode

reading

Waiting for Good BC signal When enabled, boards will not be accepted into the machine until a valid barcode read

is received

Good Barcode Rail 2 Used with "Waiting for Good Barcode Signal"

Board Staging Switches on Board Staging option, allowing pre-loading of boards during inspection if

the boards are short enough - saving 3 to 5 seconds cycle time. This option requires

hardware changes

Enable AWA Used by AWA Tools Menu

Home AWA Used by AWA Tools Menu

Table 1: Machine I/O Description

Calibrate AWA Used by AWA Tools Menu

Abort AWA Move Used by AWA Tools Menu

Jog AWA In/Out 0.5mm/1mm/10mm Used by AWA Tools Menu

Lighting Controller AWA Used when AWA homes during Lighting Auto Calibration

Move AWA Used by AWA Tools Menu

Clamps Rail 1 (Rail 2) Activates board clamps on the named rail (When Maintenance key ON)

Stops Rail 1 (Rail 2) Activate board stops on the named rail (When Mantenance Key ON)

Board Avail with Bad Board Special Configuration : Whenever the "Bad board" SMEMA signal is on, also send the "Board

Available" (also known as "Good Board") SMEMA signal

Disable Bad Board Signal Special Configuration : All boards are ejected with "Board Available" (also known as "Good

Board") SMEMA signal irrespective of inspection result.

Reset Rail 1 Resets PLC sequence for front conveyor only

Reset Rail 2 Resets PLC sequence for rear conveyor only

Reset PLC All Block Resets the PLC to the start of the board sequence for both conveyors. Has the same effect as

the reset PLC or Reset Conveyor button on the machine

Clear PLC Error Requests the PLC to clear error flags

Table 1: Machine I/O Description

Machine Setting (Machine I/O)

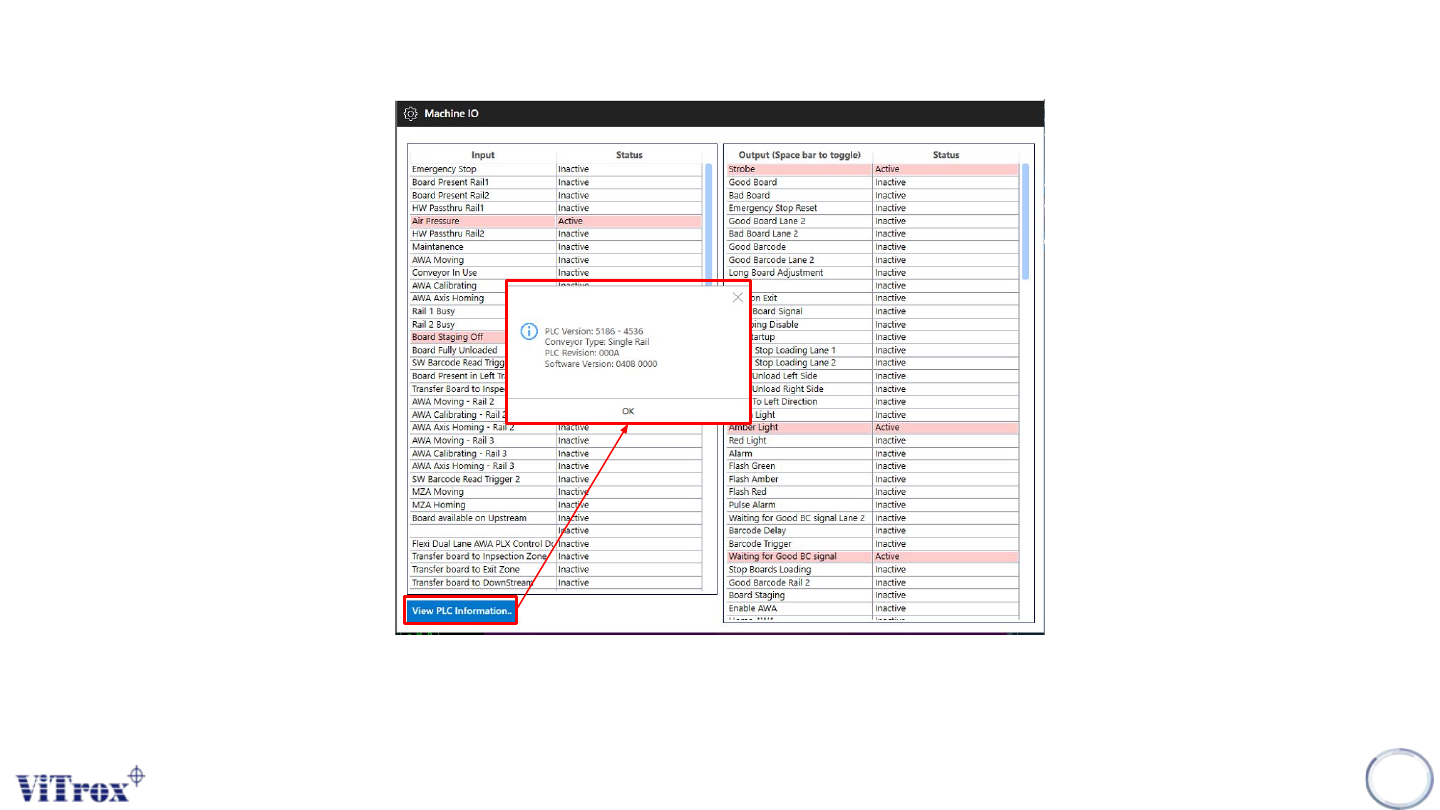

*Note: User can verify the version and type of the PLC

Figure 63: PLC Information
