Copyright © ViT rox All Rights Reserved . Machine Setting (PLC Configuration) 68 Figure 59: PLC Configuration
Copyright © ViTrox All Rights Reserved.

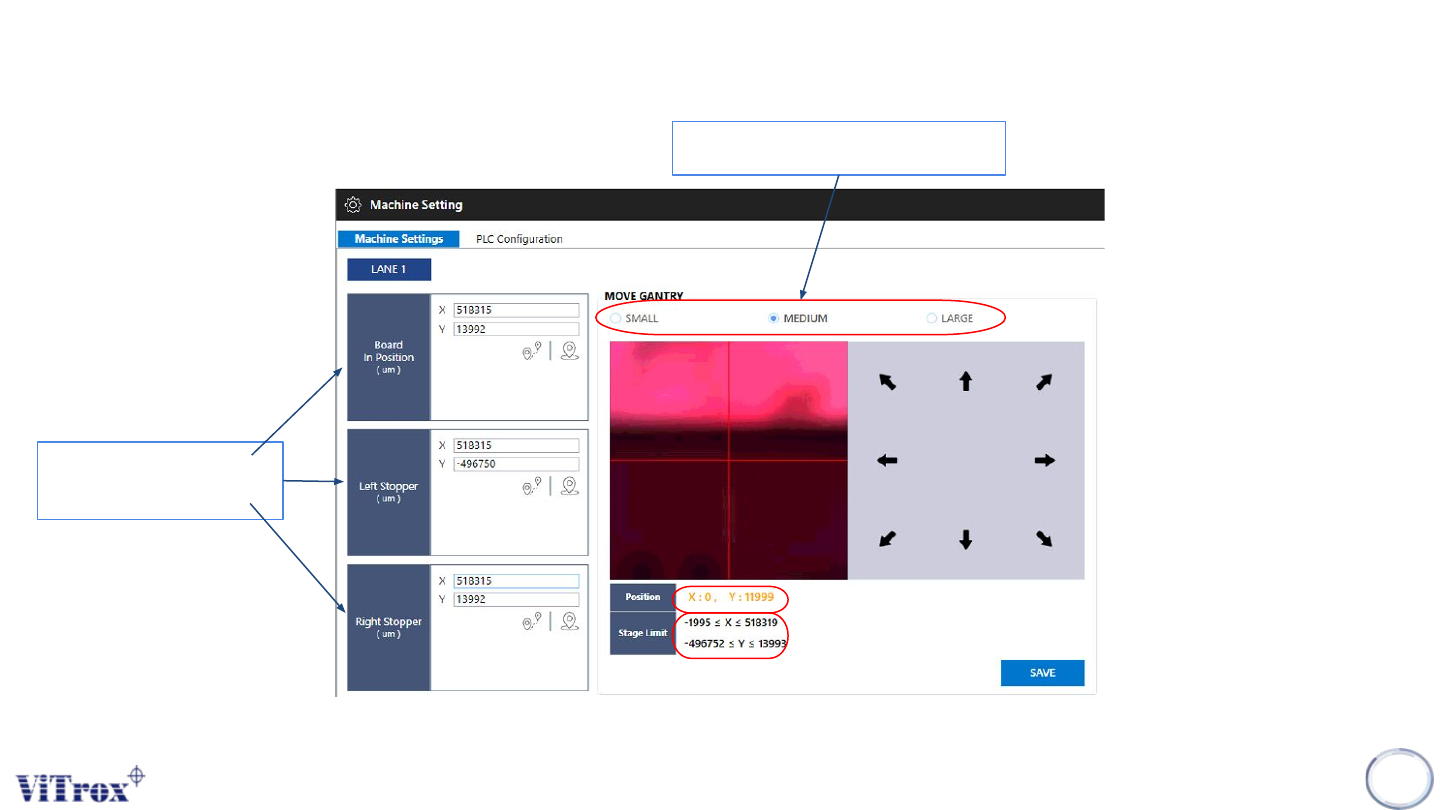

Machine Setting (Machine)
67
Three Limit XY position
for gantry limit
Level of step to move the gantry
Current Value position of gantry
Stage Limit position of gantry
Figure 58: Machine Setting for Gantry
Copyright © ViTrox All Rights Reserved.

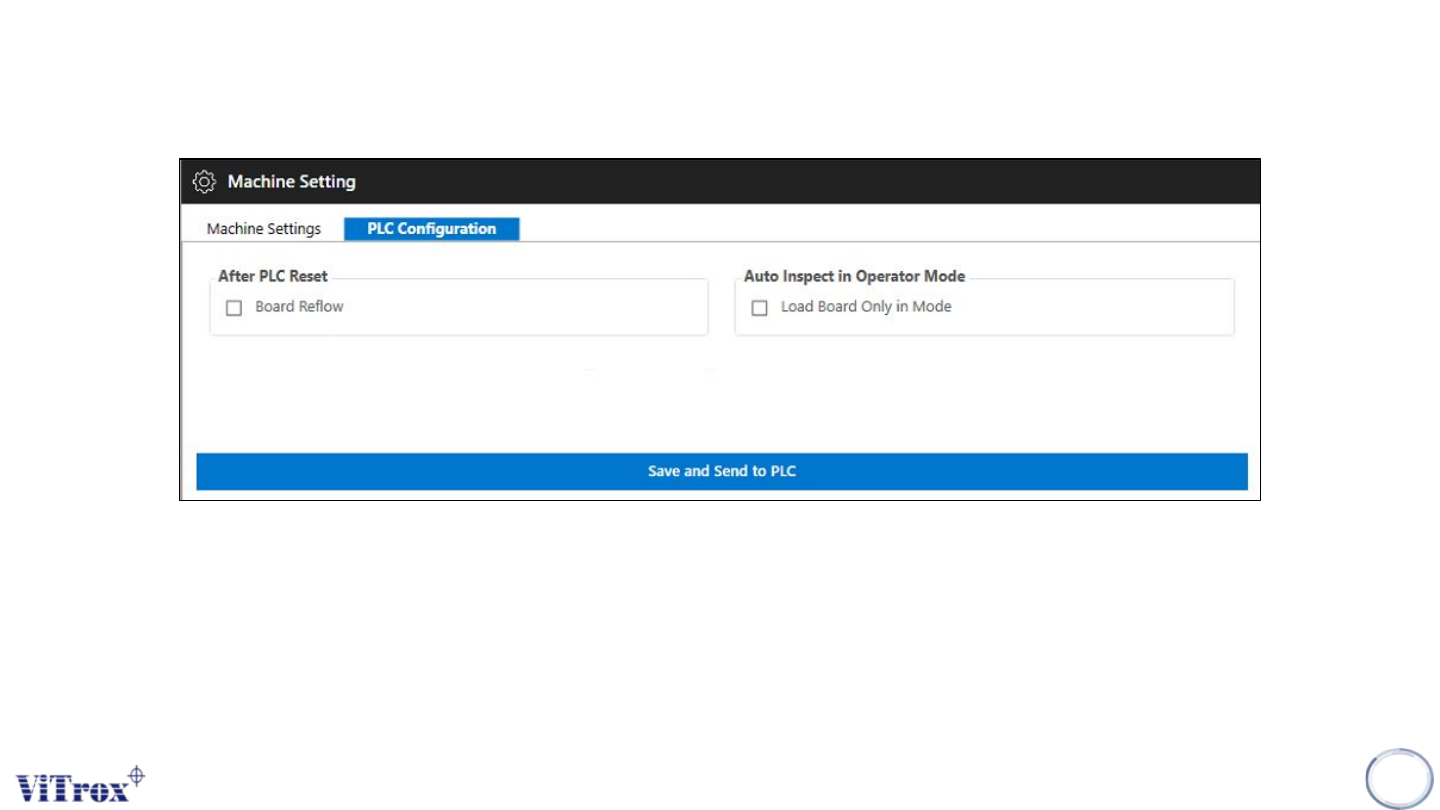

Machine Setting (PLC Configuration)
68
Figure 59: PLC Configuration
Copyright © ViTrox All Rights Reserved.

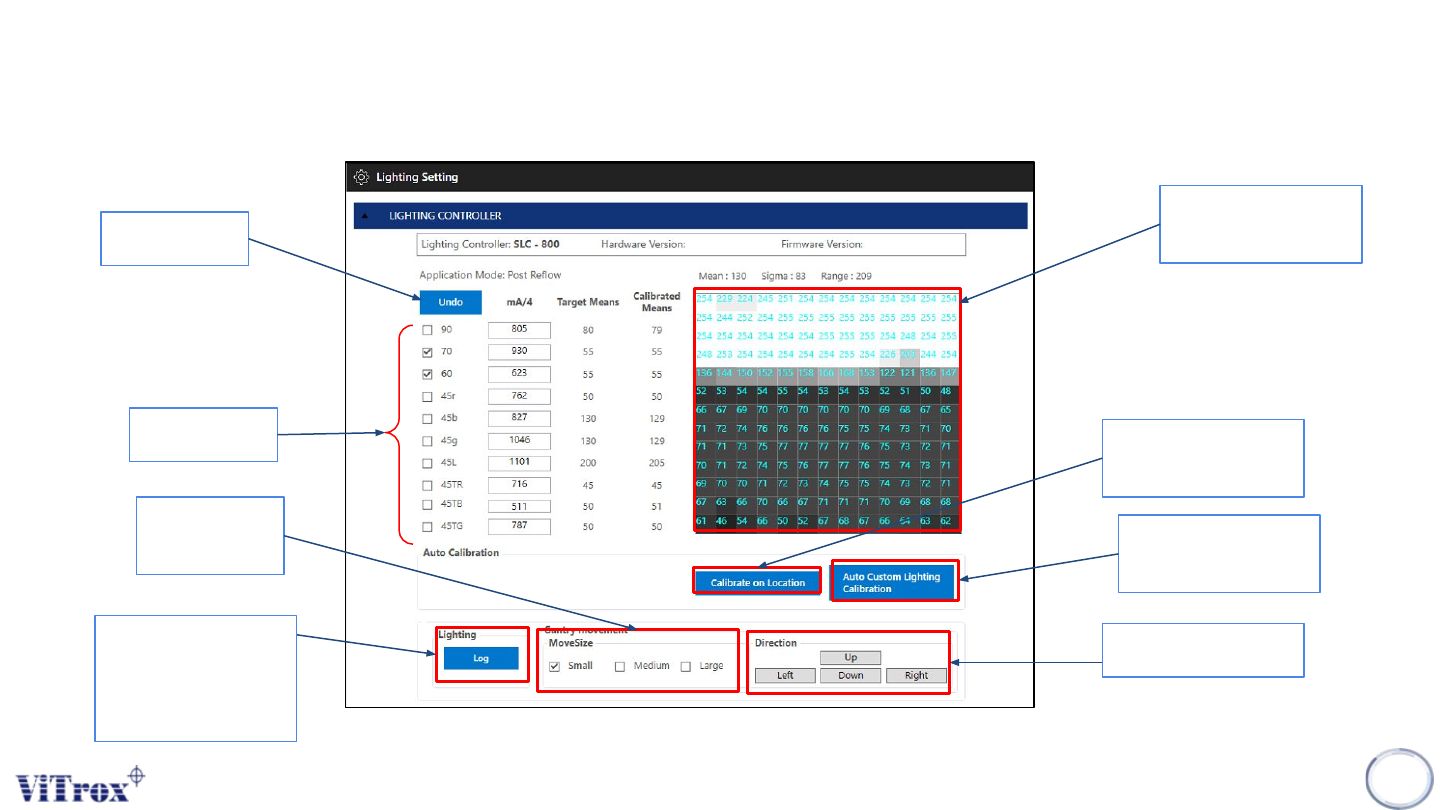

Machine Setting (Lighting Setting)
69
Figure 60: lighting Controller
Undo button
RGB lights
Average Value of
Lighting Intensity
Calibrate on exact
location
Auto Custom
Calibration
To move the gantry
Size of step
gantry
To see the log of
history lighting
calibration
C\CPI\Log
Note: Lighting calibration perform when the lens is refocused, the pixel size is changed and lighting intensity is changed.
