Copyright © ViT rox All Rights Reserved . Move Panel 104 Move Panel Move and Drag Whole Panel Figure 92: Before and after Move Board T otal number of Panel to be move This is used to move the Panel by using arrow keyboar…
Copyright © ViTrox All Rights Reserved.
Move Board
103
Move Board
Move and drag Selected Board
Total number of
board to be move
This is used to move the
board by using arrow
keyboard
The total boards moved
and its offset parameter.
Save after move board
have been made.
Quit the add board
configuration
Figure 91: Move Board Mode Tab
Figure 90: Before and after Move Board
Copyright © ViTrox All Rights Reserved.
Move Panel
104
Move Panel
Move and Drag Whole Panel
Figure 92: Before and after Move Board
Total number of
Panel to be move
This is used to move the
Panel by using arrow
keyboard
The total Panel moved
and its offset parameter.
Save after move Panel
have been made.
Quit the add Panel
configuration
Figure 93: Move Panel Mode Tab
Copyright © ViTrox All Rights Reserved.

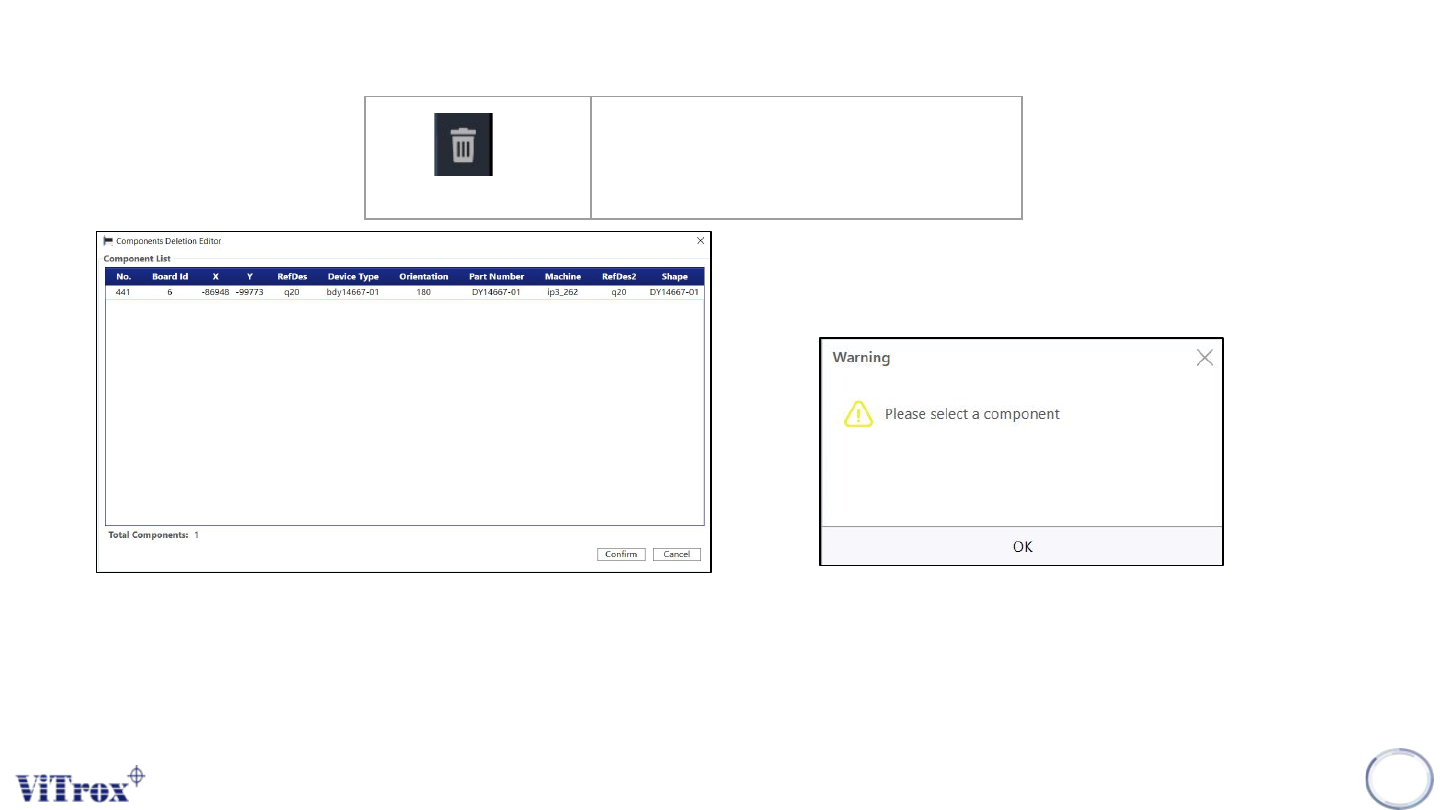

Delete Component
After clicking Delete Component on tool box, the Component Deletion Editor pops up. The window acquire the
component information that a user wishes to delete. Click Confirm to delete the component from the program.
Note: User must select component first in order to delete the component otherwise it will prompt warning message
105
Delete Component
Delete Component
Figure 94: Components Deletion Editor
Figure 95: Warning message
