Program Information Overview (Operator)
Program Information is used to show the detailed
information of the current program. Once changing
to the new program, the setting shows the new
program information. The program information
details are:
● Program Name
● Panel Barcode
● Inspection Result
● Inspection Time
● Fail Component
● Total Component
● Program FPY (Board Pass Rate %)
● Total Board Inspected
● Total Good Board Inspected
180

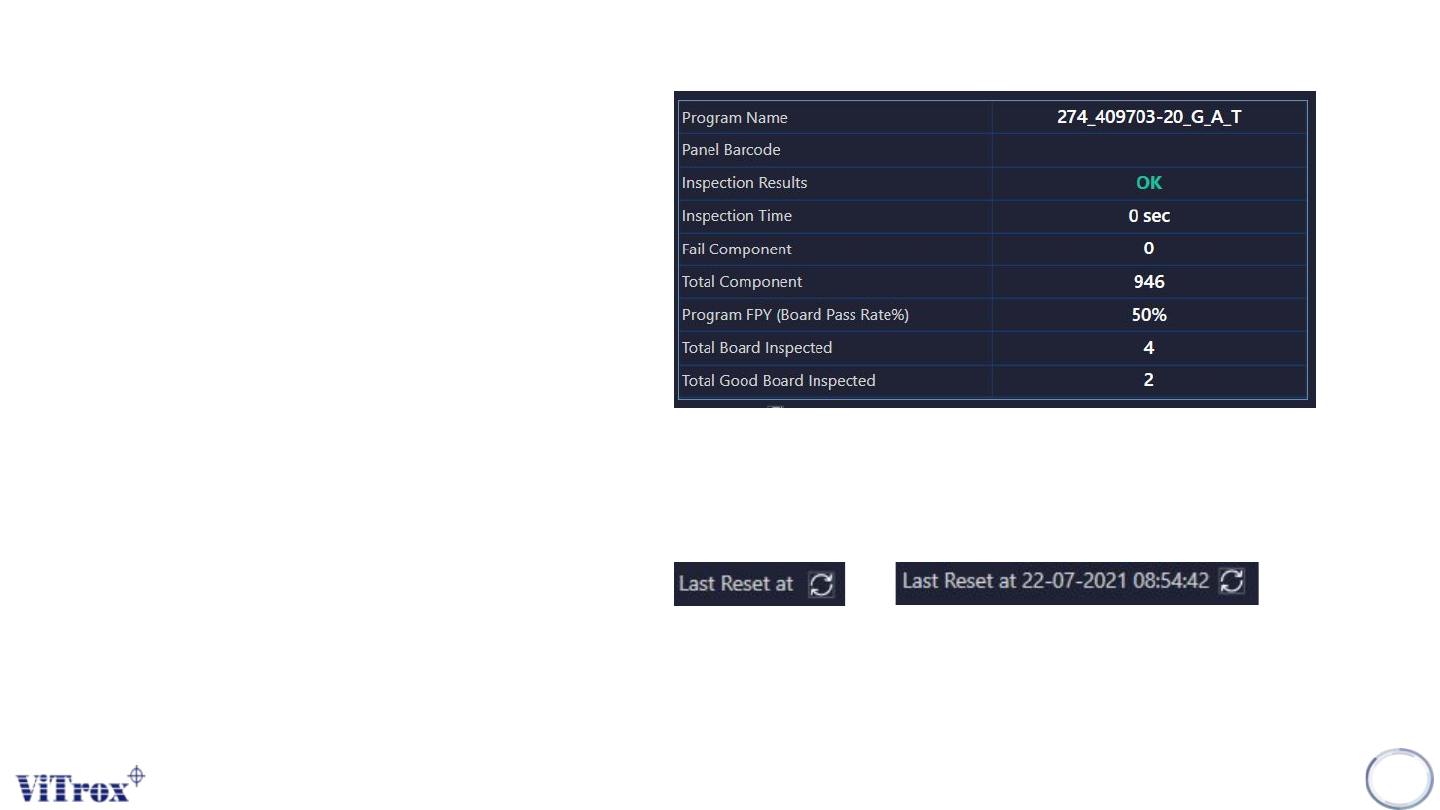

Figure 163: Program Information in operator mode
Figure 164: Before and after reset the machine first pass yield
Copyright © ViTrox All Rights Reserved.
Machine FPY (Operator)
Machine First Pass Yield (FPY) is used to calculate pass board rate without false reject by machine. For
example, if there are 100 boards, the 80 boards that passed the inspection without any false reject at a certain
time are considered as 80% first-pass yield.
The values shown in the machine first pass yield tab are on machine basis which includes:
● Average Inspection time
● Number of the pass and fail boards
● Reset
Note: The inspection time is averaging among all programs inspected in this machine.
181
Figure 165: Machine FPY Figure 166: Before and after reset the machine first pass yield
