Copyright © ViT rox All Rights Reserved . Create New Empty database Create New Empty Database is used to create an empty database for current program. Golden database is important for empty database. The golden database …

Point to Existing Database

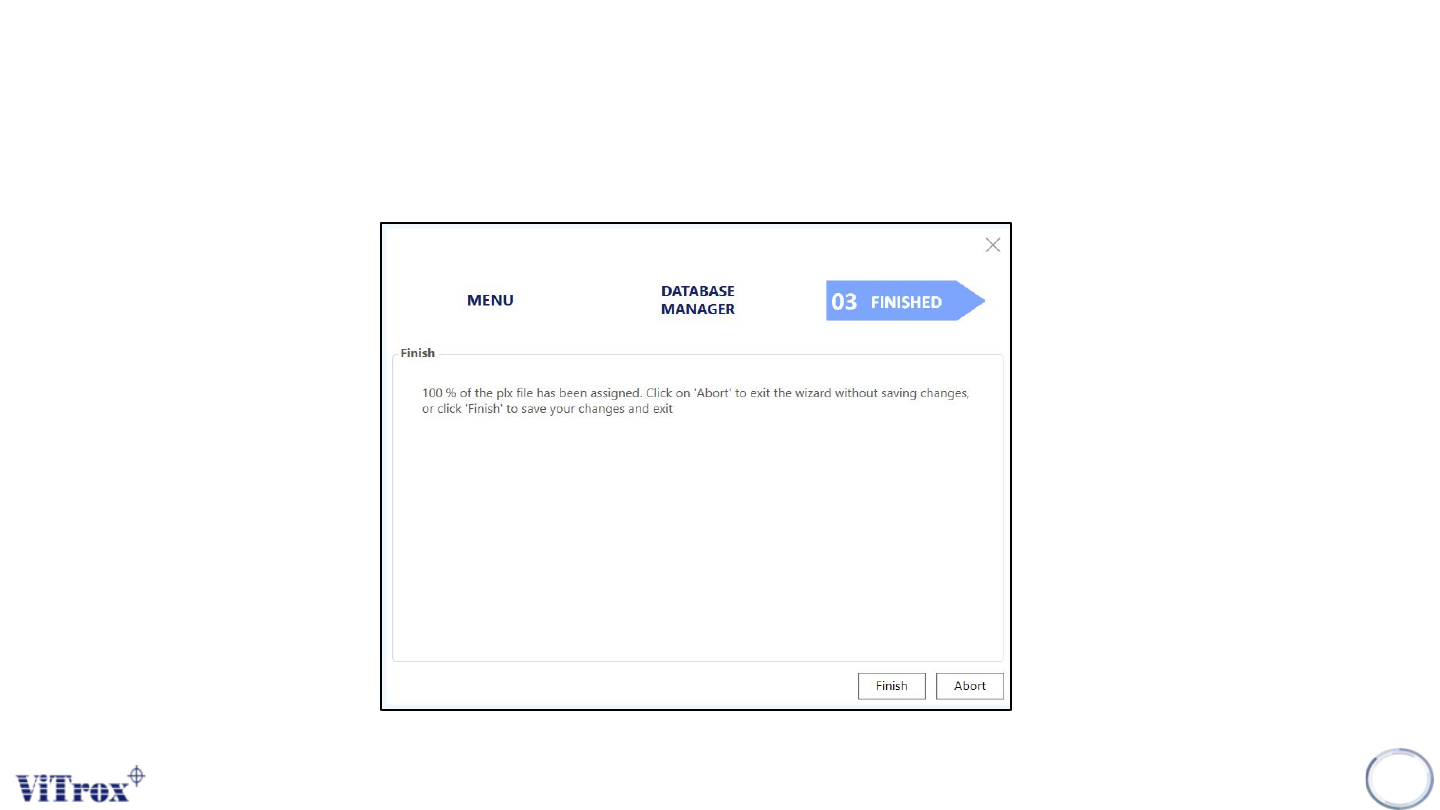

After pointing to the existing database, a confirmation message shows to verify the database

assignment and golden database setting.

131

Figure 118: Confirmation Message

Create New Empty database

Create New Empty Database is used to create an empty database for current program. Golden database is important

for empty database. The golden database contains the ViTrox recommended device type to ease users to train the

reference designator.

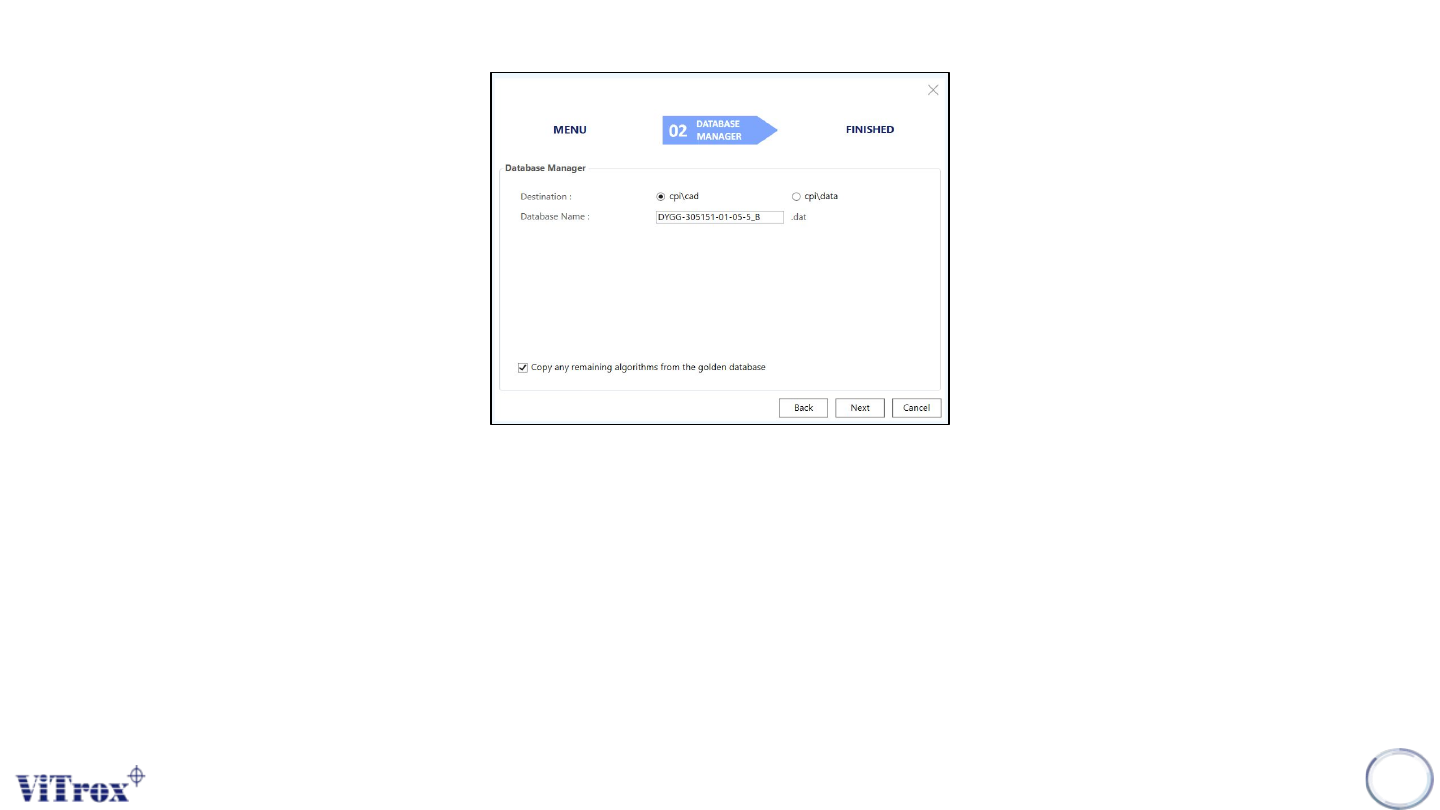

The figure below shows the database manager setting after selecting "Create new database from existing". The

information shows in database manager are:

● Destination of the new generate database.

● Database list that contain similar part number or shape in descending order.

132

Figure 119: Create New Database (Rename)

Create New Empty database

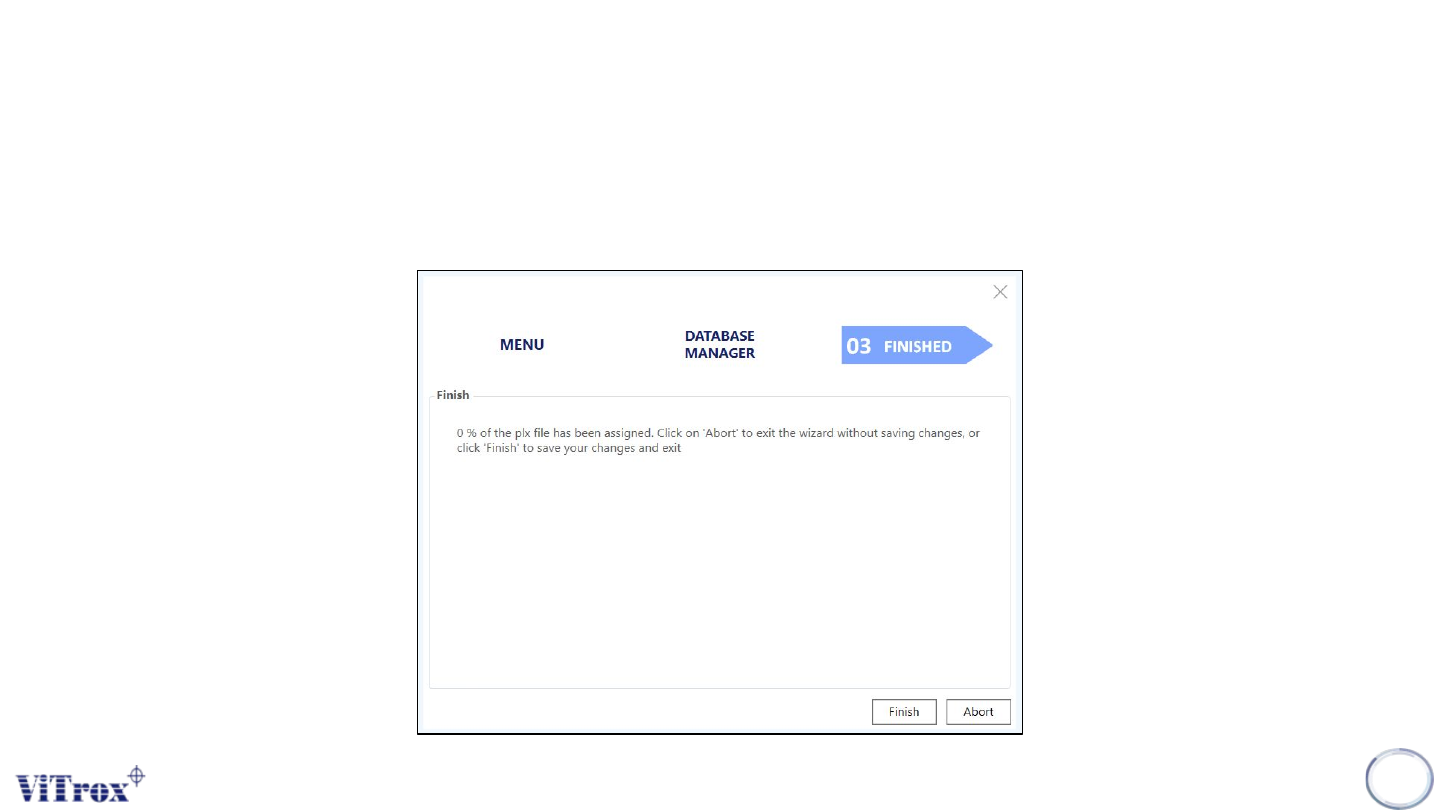

After pointing to the create new empty database, a confirmation message shows to verify the 0% of the

plx is unassigned. (Start from Raw)

133

Figure 120: Confirmation Message
