Copyright © ViT rox All Rights Reserved . Filter Display Filter Display of Component Geometry is used to set the display in board graphic. A drop-down menu shows after clicking the button and comes with four selections w…

Adjust brightness

Adjust the Opacity of Board Image is a feature used to adjust the transparency between board graphic and board image. This

feature comes with an adjustable bar shown after clicking the button. This is used to set the percentage of transparency between

board graphic and image. The default value is 70%.

Note: Drag the slider to set the transparency value between 0% and 100%.

107

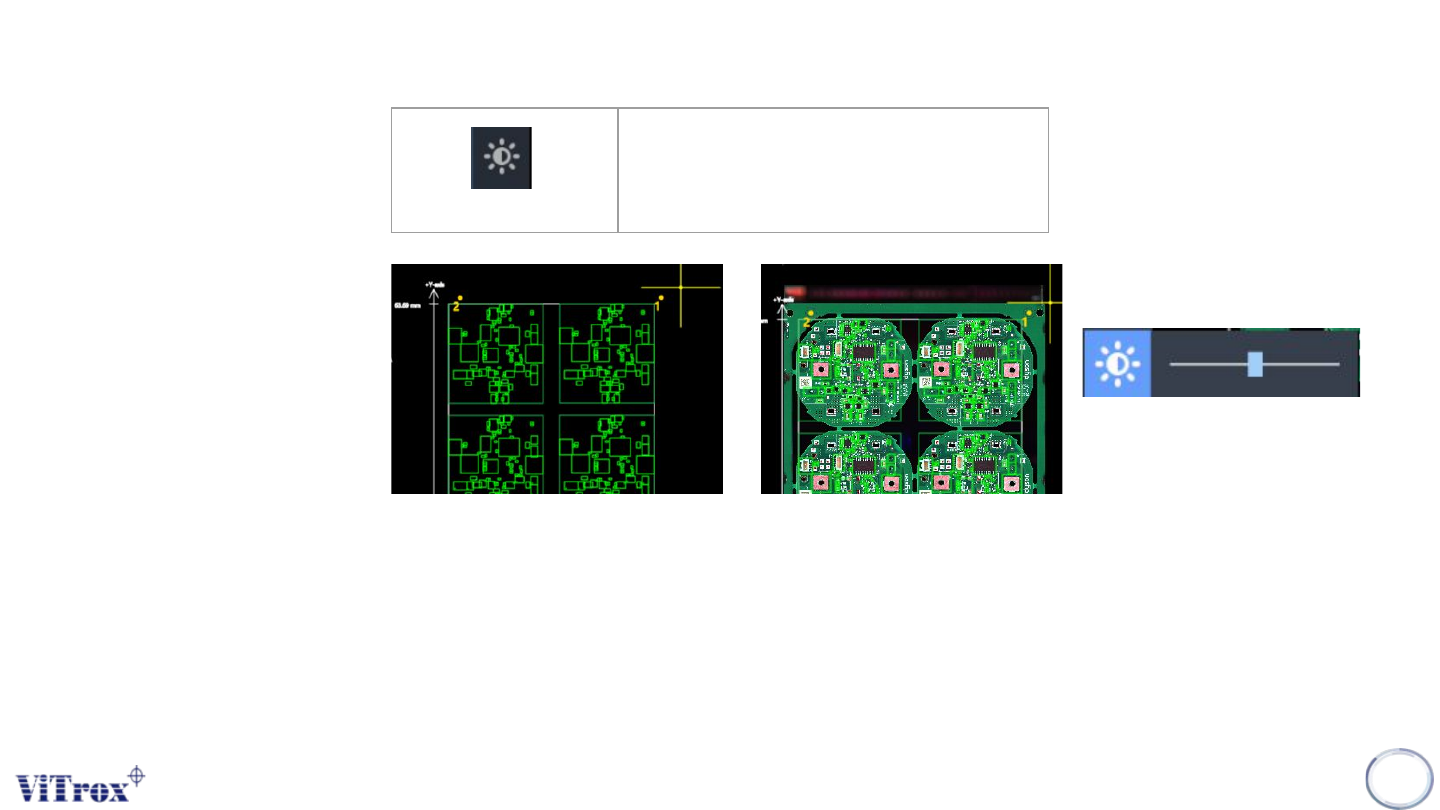

Adjust brightness

Adjust the brightness of full-board


Figure 98: From low to high

Filter Display

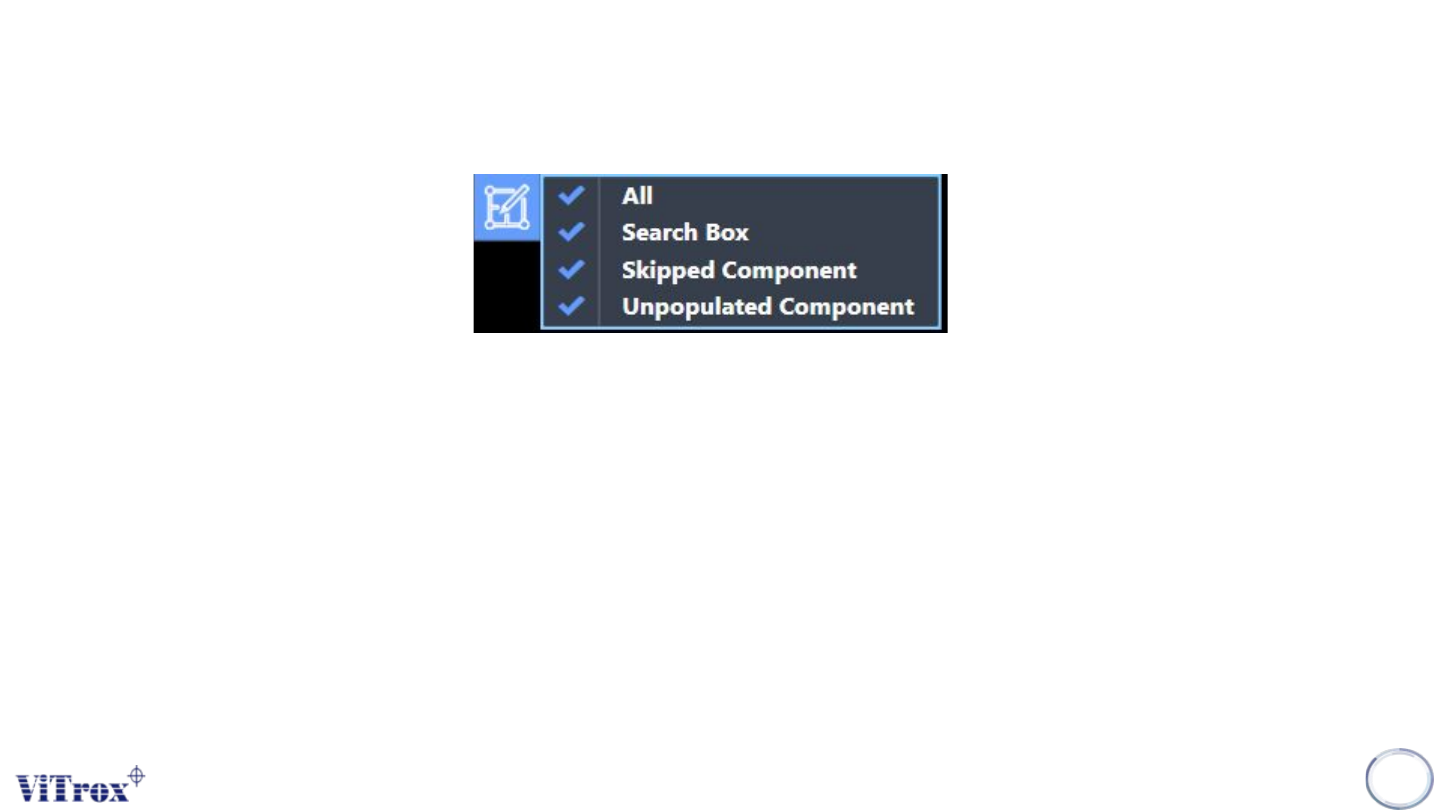

Filter Display of Component Geometry is used to set the display in board graphic. A drop-down menu shows after

clicking the button and comes with four selections which are:

● All

● Search Box

● Orientation Indicator

● Skipped Component

● Unpopulate components

Note: User can filter unnecessary item to display.
