Algorithm Setting (Algorithm Editing)
83
4
5
To enable/disable log history in
C/CPI/Log
To enable/disable Lot control in operator
mode
To enable/disable Lot without Counter
Control in operator mode
To enable/disable Continuous mode
Inspection for fiducial failed
To enable End log

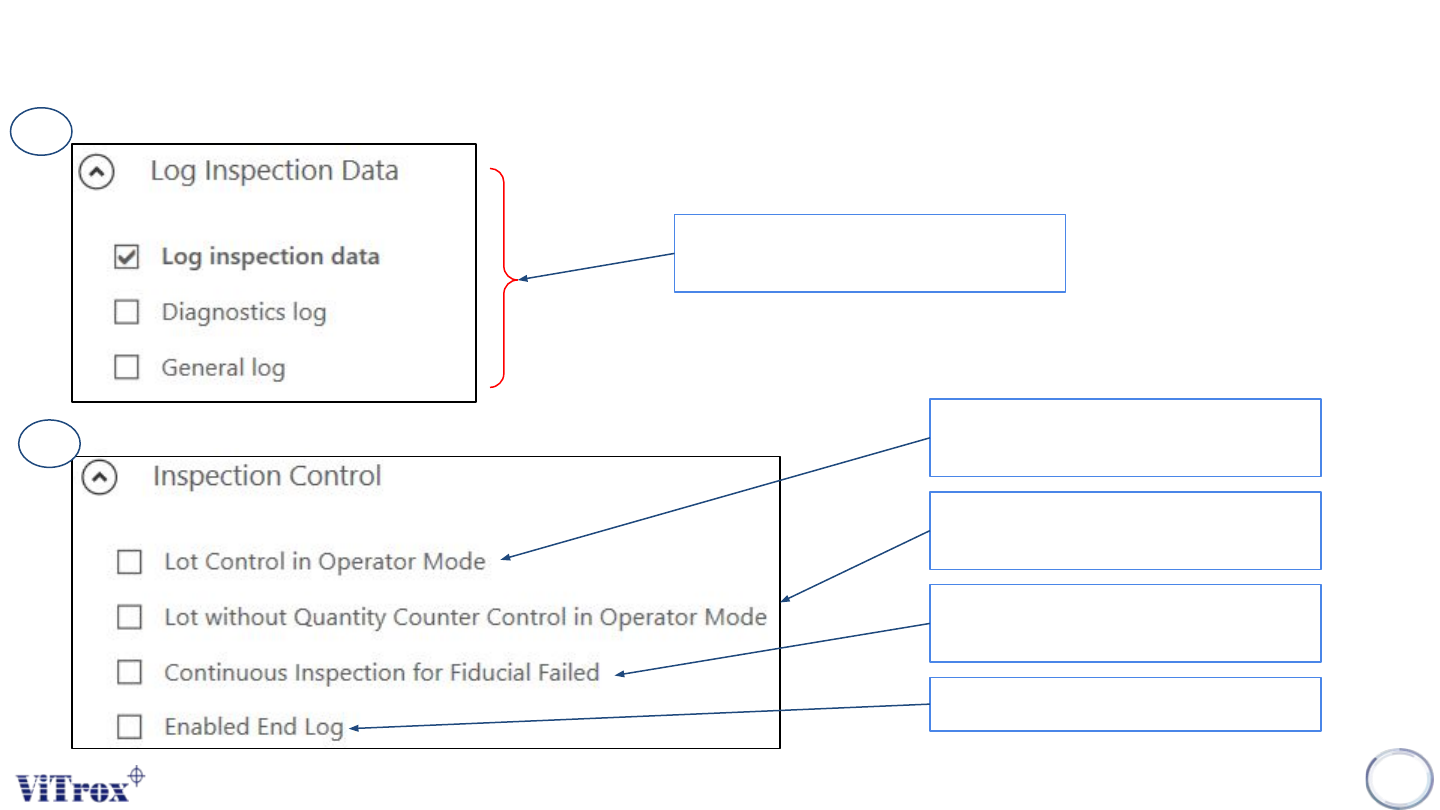

Figure 69: Log Inspection Data Parameter
Figure 70: Inspection Control Parameter
Copyright © ViTrox All Rights Reserved.
Algorithm Setting (Algorithm Editing)
84
6
● To convert algorithm from 2D to 3D
● User can select multiple type of package CRBS
type to convert from 2D to 3D algorithm
● Auto 3D conversion Tools is to setup custom
package to apply this conversion.
Figure 71: Auto 3D Convert Parameter
Figure 72: Auto 3D Conversion Tools (Package Editor) Parameter
Copyright © ViTrox All Rights Reserved.
Algorithm Setting (Algorithm Editing)
85
7
● To enable the AutoTrain for 3D Algorithm device
type
● User can disable pad checking (depend on user)
● All the Auto Train Reference report generated at
C\cpi\data\AutoTrain\ProgramName
● This is the configuration for A.I Technology
● User can see all the CRBS type with their respective
package including inspection parameter.
Figure 73: Auto Train 3D Parameter
Figure 74: Auto Train Ref. Report Path folder
Figure 75: A.I. Programming Configuration
