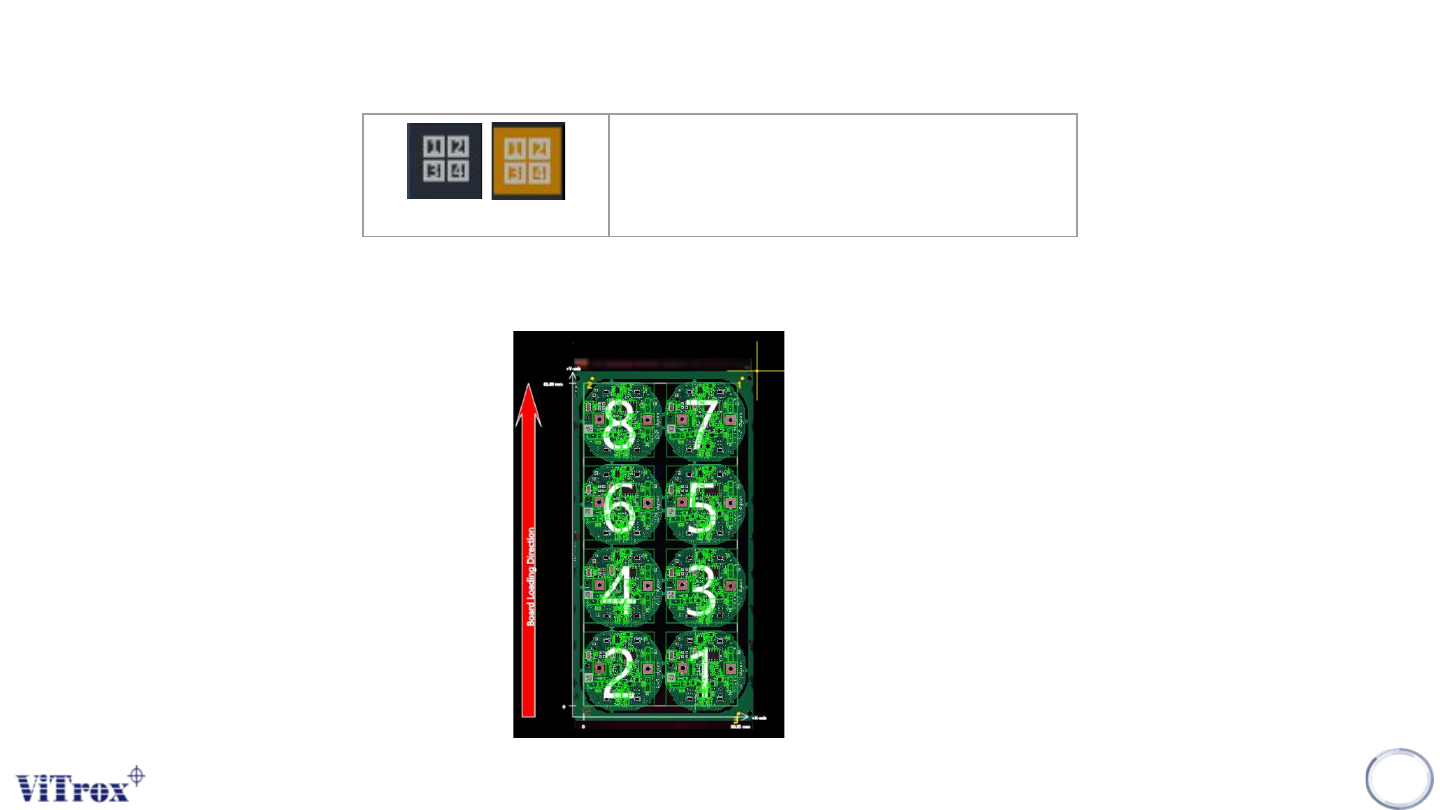

Show Board Number

Display board number and sequence

When click at Show Board Number button in tool box, the button turns into orange. The board number displays in

each board. See the figure below.

Figure 80: Show board number view in full board view

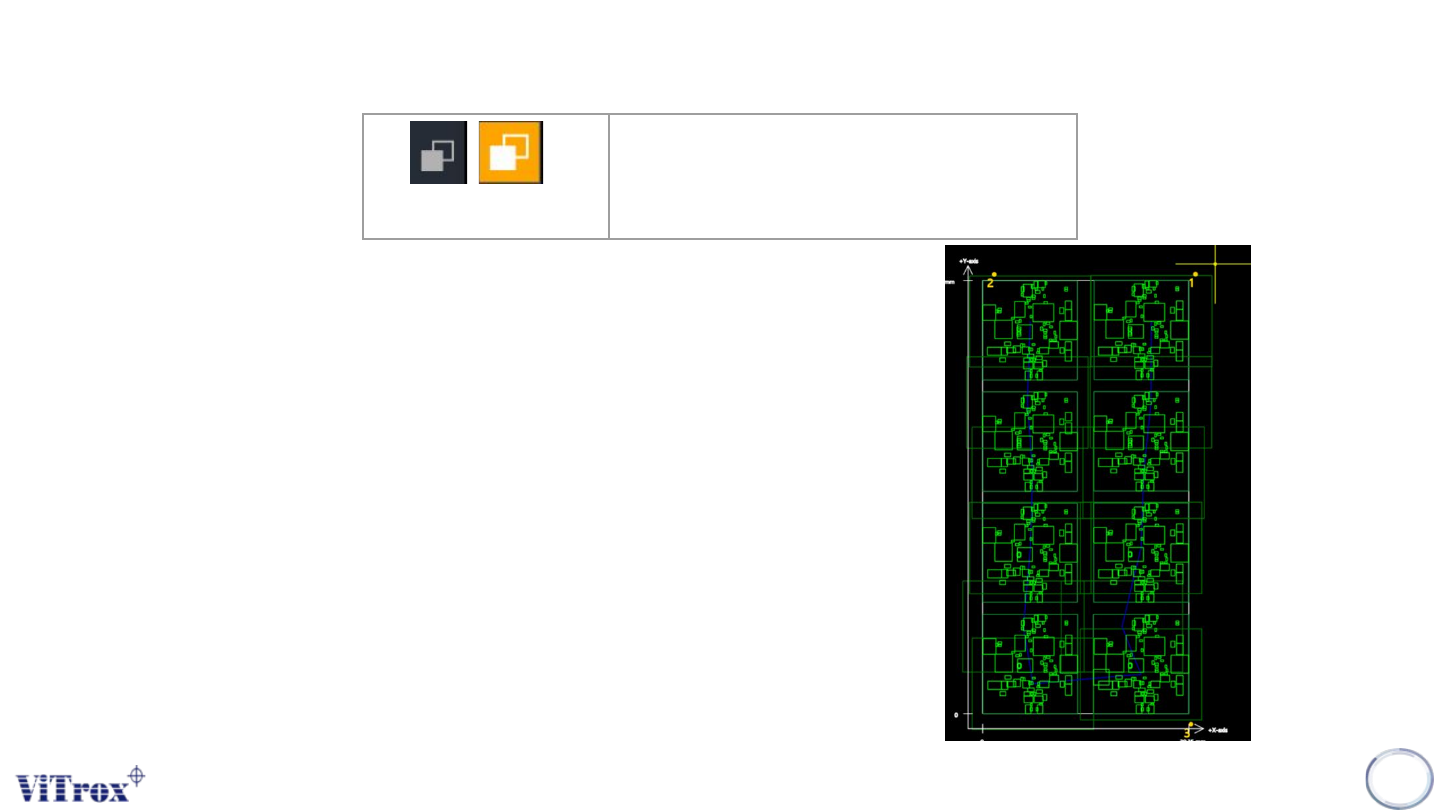

View Cad

View Cad is used to show the view inspection sequence among all field of

view. The panel board becomes transparent in full-board view, while two

additional information pieces appear in board graphic which are:

● Blue Line (View inspection sequence)

● Green box (Current field of view size)

Note: In order to check which FOV of a component falls under, select the

component and the inspection FOV shows turn into actual board status.

View Cad

Display inspection sequence/path

among all field of view

Figure 81: View Inspection sequence

Select Component

Select Multiple Components

Figure 82: Select Multiple components

Note: User can also use ctrl+left click or drag selected region to select multiple components
