General Setting (Action on Failure Options)

Action on Failure Options are used to set up the operator access control and use model in the operator mode. The

options are:

● Allow board selection in operator

● No action on failure for operators

● Allow operators mark false fail

● Force operator to look at all errors

● Allow no reason for false fail

● Allow no MVC fail

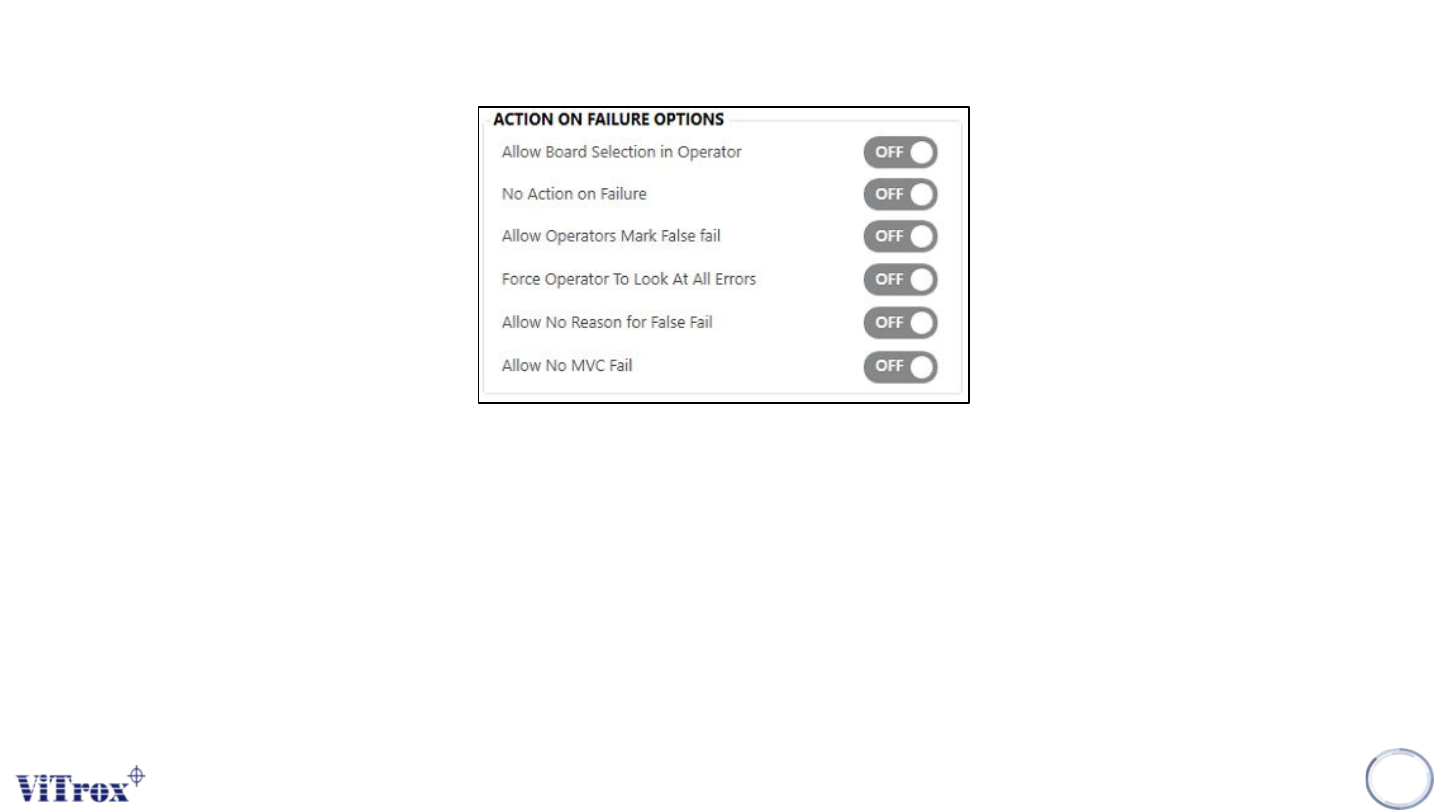

Figure 25: Action on failure options

General Setting (Action on Failure Options)

This feature is designed to allow change of

program in Operator mode.

Figure 26: Action on failure options

Allow board selection in Operator

General Setting (Action on Failure Options)

This feature is designed to switch the operator use

model to either "Require to perform false fail checking

on system" or "no action taken". When this feature is

enabled, the board unloads automatically without any

operator action. When this feature is disabled, it shows

the features under this operator use model. The

recommended settings are enabled.

Note: This feature is designed for users who are not using

ViTrox Verification Test Solution (VVTS) and performing

defect call verification in the system.

No Action on Failure for Operators

Figure 27: Action on failure options

When this feature is disabled, defect call inspected by

system after inspection is done. The board remains

unclamped and allows an operator to view the defect

call. The operator is required to unload the board

manually. The figure below shows the simple defect

review in the operator mode.

Note: No action can be taken to change the system

inspection result. The alarm will be triggered and red

light will be luminated.
