Machine Setting (Inspection)

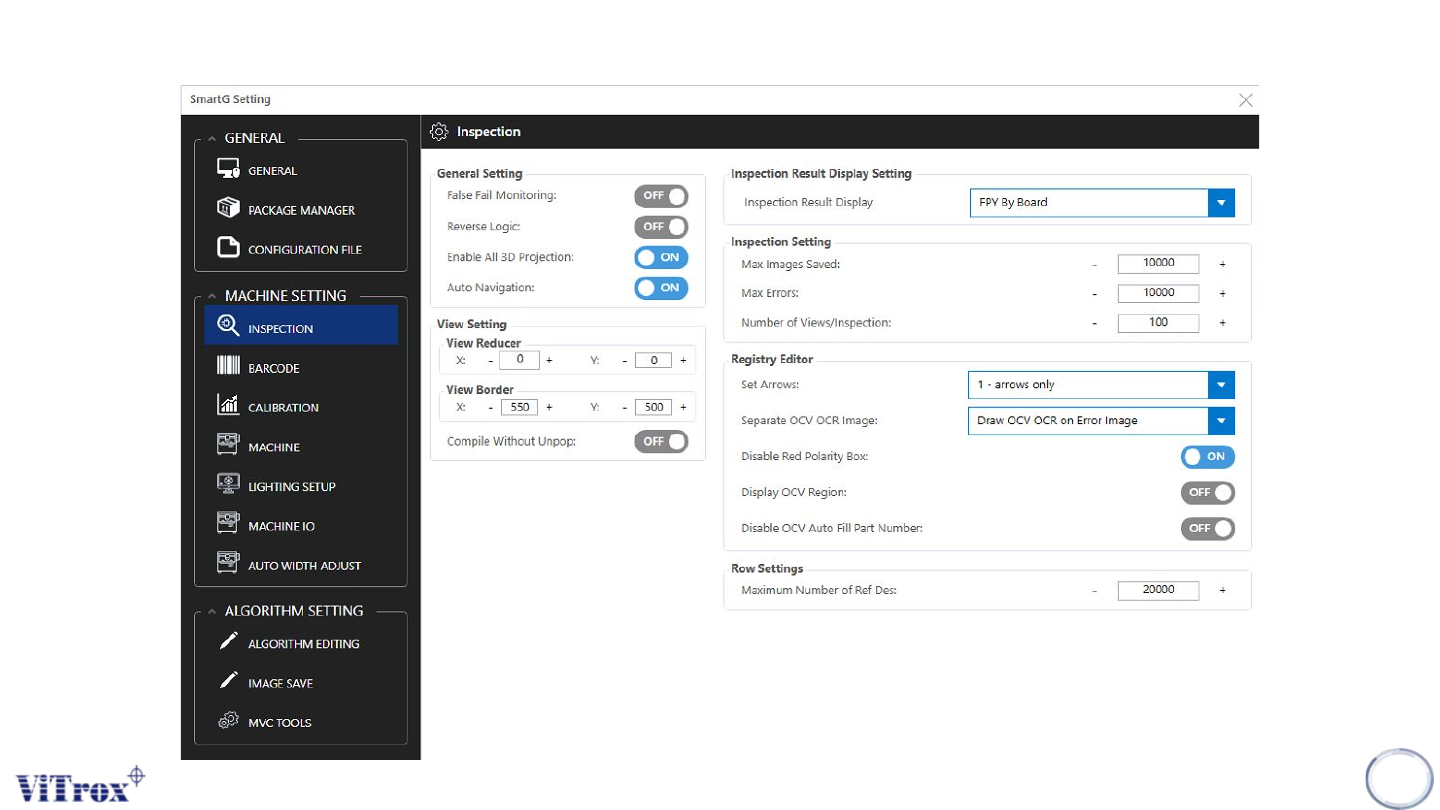

Figure 43: Machine Setting (Inspection) Parameter in SmartG

Machine Setting (Inspection)

To auto navigate the gantry

speed and move

To enable the false fail monitoring in

Inspection summary tab

When reverse logic is used,

components that pass the inspection

fail and vice versa. Hence it is easy to

find components that fail and false fail

them into the MVC database.

Another way to achieve this is simply

to look at the list of components that

pass inspection.

To enable and disable the

projector

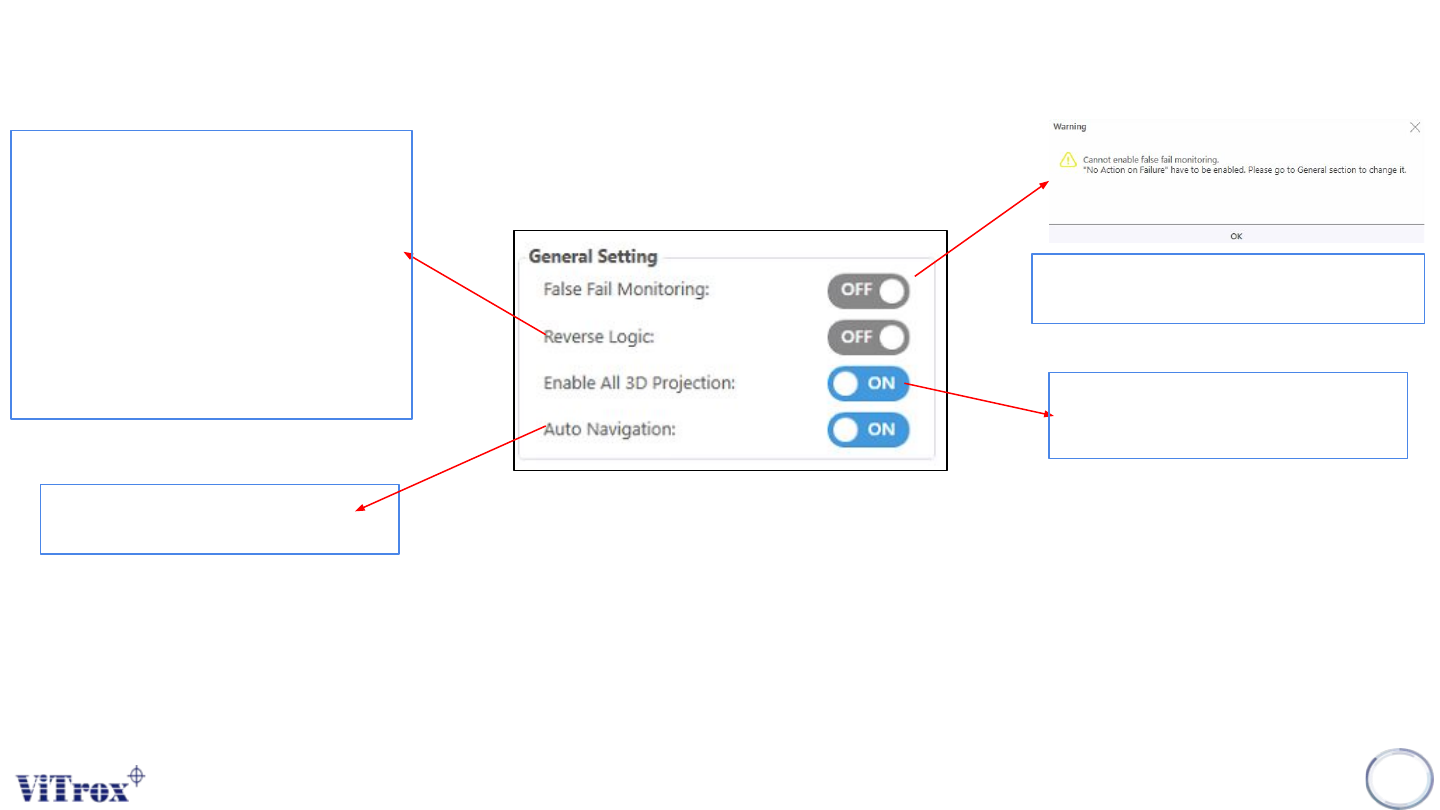

Figure 44: General Setting (Inspection)

Machine Setting (Inspection)

This increases or decreases the border

inside the camera field of view. A default

of 550 microns (X) and 500 microns (Y)

is automatically set.

This is similar to the View Border, but it is

only applied when considering whether a

component must be split into multiple

views. This is specified in microns.

To compile the program with/without

Unpopulated area feature

Figure 45: View Setting
