Copyright © ViT rox All Rights Reserved . Step Procedure (Negative T est) Negative test is used to rotate all components to 180 degree and reinspect the program. Therefore, the rotated component should show "failed …
Copyright © ViTrox All Rights Reserved.

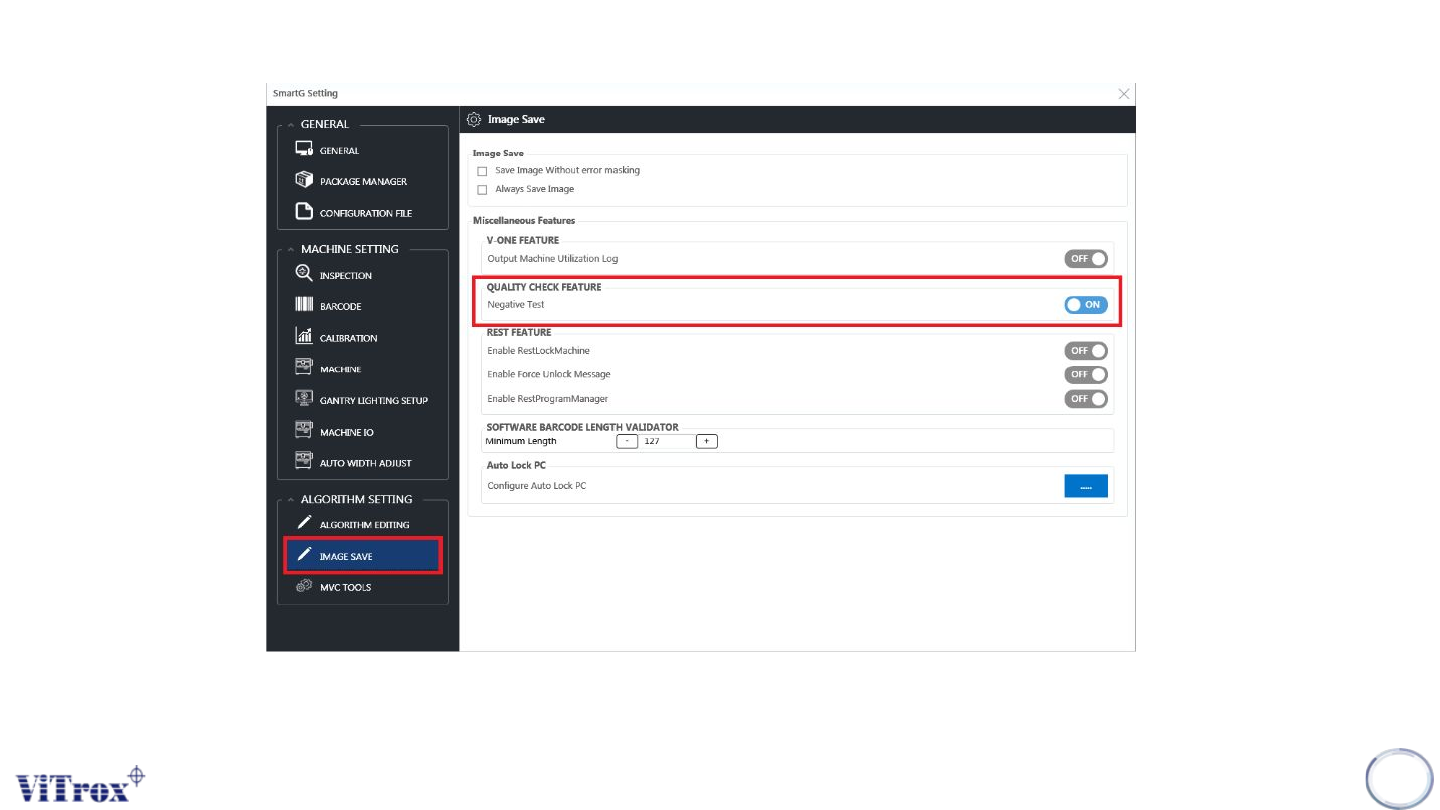

How to Implement Negative Testing
• To run negative test, go to Utilities. On the Image Save tab, search for negative test in quality check feature. After
the negative test is enabled, a negative test column shows in the inspection result.
119
Figure 107: Smart train interface
Copyright © ViTrox All Rights Reserved.
Step Procedure (Negative Test)
Negative test is used to rotate all components to 180 degree and
reinspect the program. Therefore, the rotated component should
show "failed as polarity" to prove that the program has detected
the polarity defect. There are four steps to complete the
orientation negative test which are:
● Run "Negative Test" under inspect button.
● Analysis negative test inspection result.
● Fine tune escapee component.
● Ensure no escapee component in final result.
120

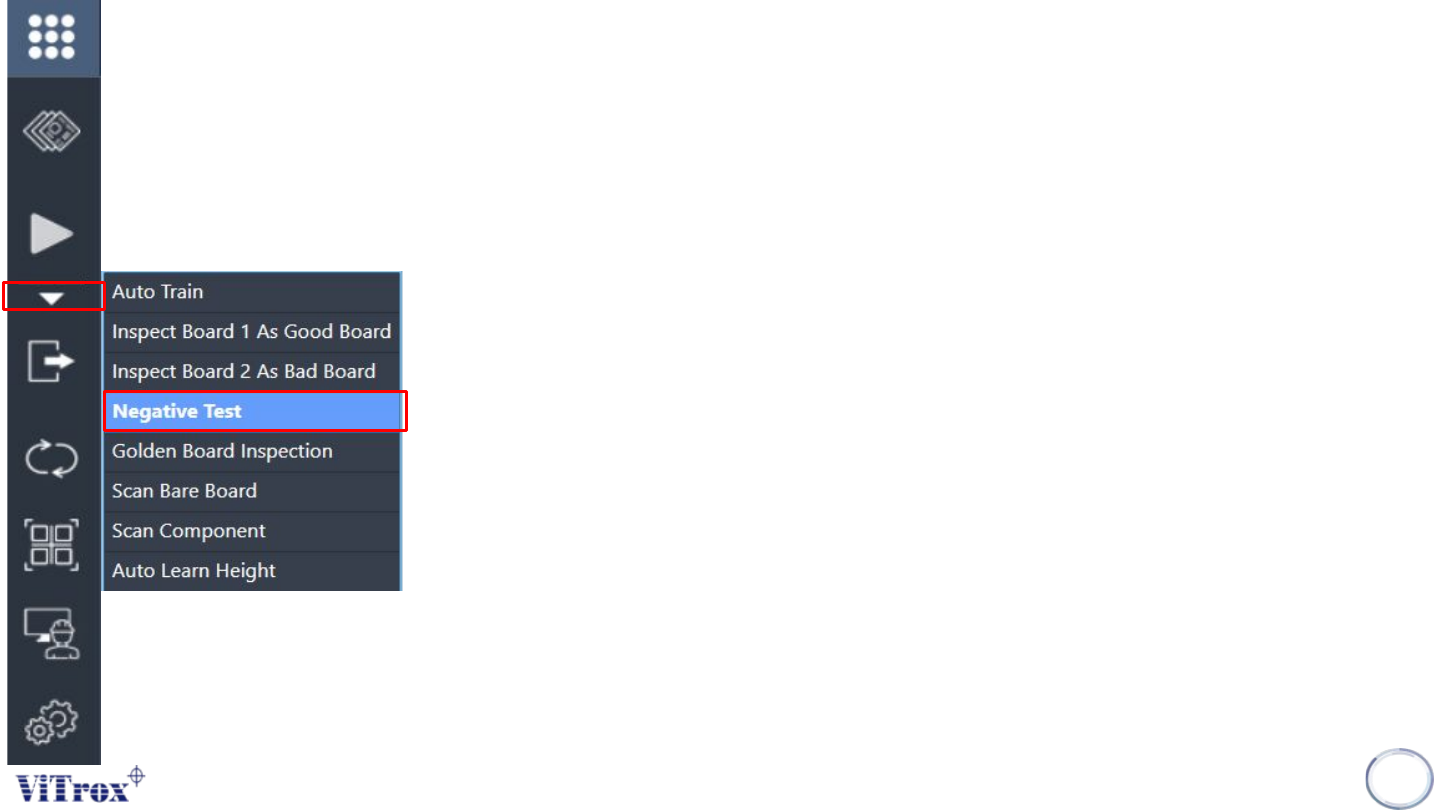

Select negative test under inspect button and run the negative test.
SmartG will start the inspection of negative test.
Copyright © ViTrox All Rights Reserved.
Negative Test Result Inspection
Total components
Inspected
121
Negative Test
Summary
Clear, Filter and
Search button
Negative Test
Summary

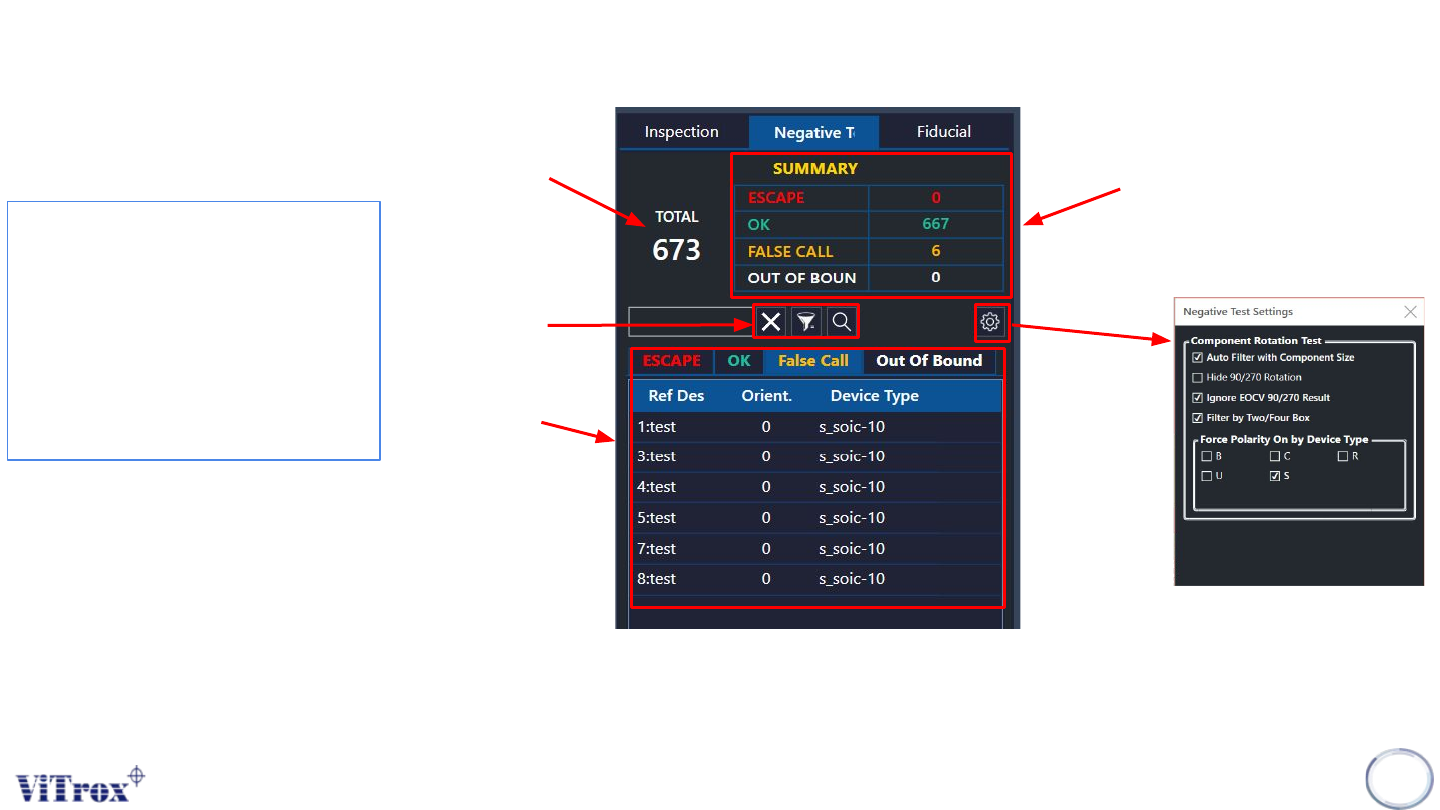

Figure 108: Negative Test Inspection Result
After running the negative test, an
inspection result shows in the
negative test which include:
● Total component inspected
● Negative test summary
● Negative test result
● Test result summary
